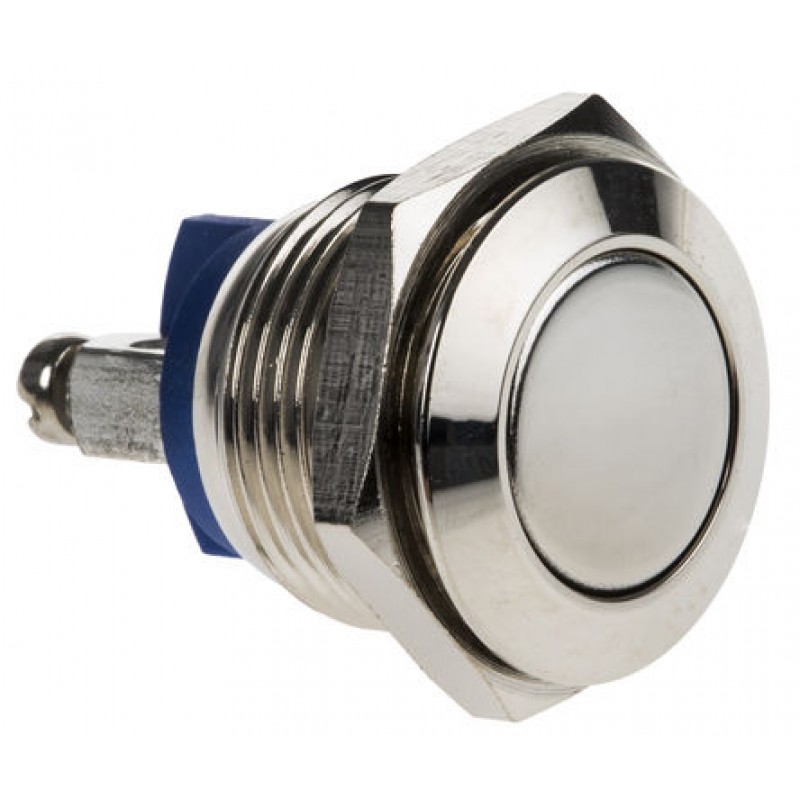

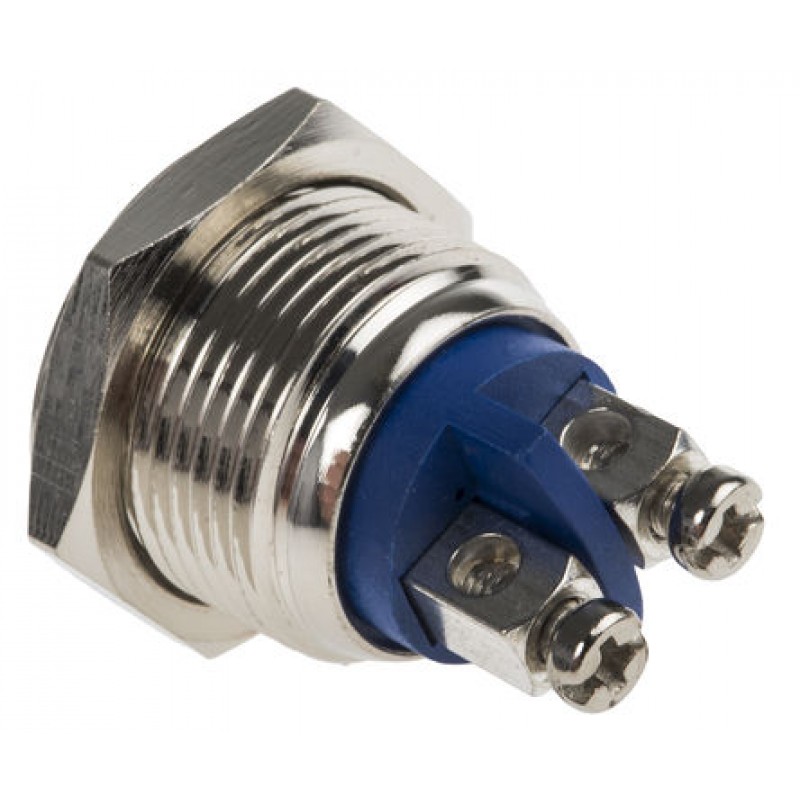

Push Button Switch, IP65, 16.2mm, NO, Panel Mount, Momentary
Product Code: R16FFNSTAG
Availability: In Stock
Availability: In Stock
$10.62
Ex Tax: $10.62
Ex Tax: $10.62
Product Details
R Series Anti-vandal pushbutton (16 mm)
Anti-vandal 16 mm stainless steel pushbuttons available in a variety of finishes and actuator styles
Anti Vandal Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | NO | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Size | 16.2mm | |
| Panel Cut Out Diameter | 16.2mm | |
| Contact Current Rating | 2 A @ 48 V dc | |
| Actuator Colour | Silver | |
| Contact Material | Silver Alloy | |
| Operating Temperature Range | -20 → +55°C | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP65 | |
| Maximum Operating Temperature | +55°C | |
| Actuator Type | Button | |
| Case Colour | Nickel | |
| Terminal Type | Screw |
