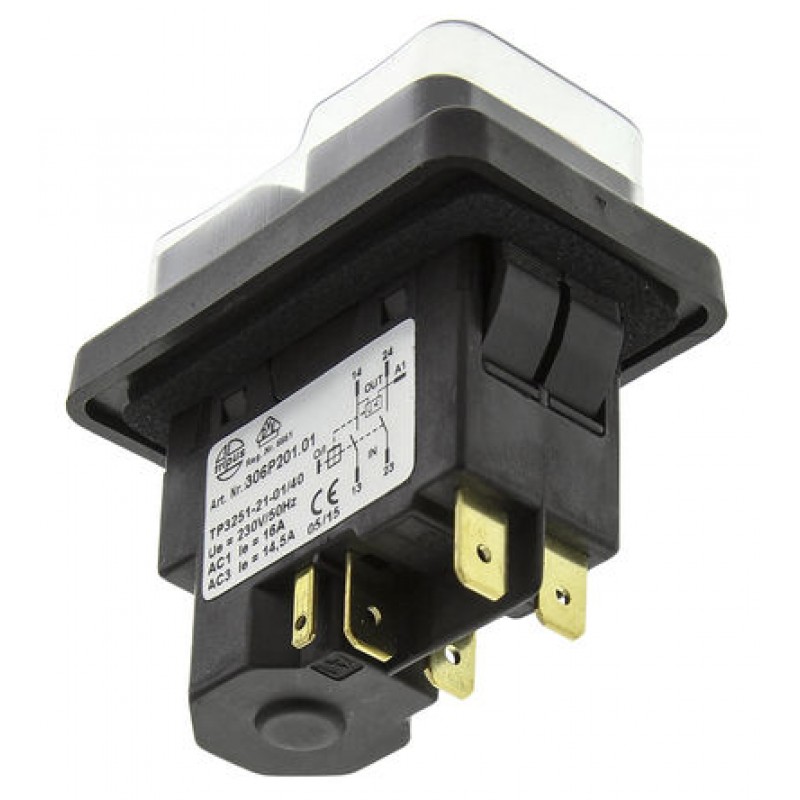

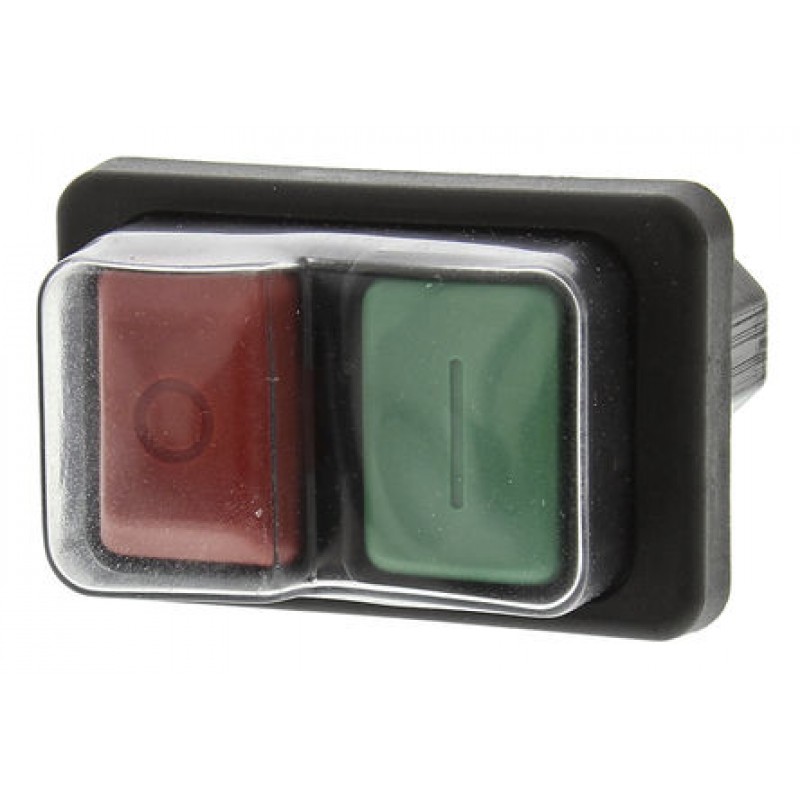

Push Button Switch, IP65, 21.7 x 45.2mm, DP, Panel Mount, On-Off
Product Code: 3251-20-01/67
Availability: In Stock
Availability: In Stock
$21.48
Ex Tax: $21.48
Ex Tax: $21.48
Product Details
No-Volt Release Switch Modules
Rocker & pushbutton on-off switches which automatically disconnect in the event of power loss.
Nominal operating voltage 230V; switching current 16A
Prevents re-start of machinery or equipment in unsafe condition
Extra contact versions permit remote tripping
Panel mount, cutout size (45.2x21.7mm)
Protection kits available, snap-in pushbutton comes complete with protection kit
Double pole isolation
Back boot (square version) gives additional protection
Complete mains unit ideal for workbench installation
IP ratings are: Rocker (IP40), Rocker with cap (IP54), Pushbutton (IP65)
Standards
DIN/VDE 0660 pt 102; IEC 947-4-2
Switch Disconnectors - Fuses
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | On-Off | |
| Contact Configuration | DP | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Size | 21.7 x 45.2mm | |
| Panel Cut Out Width | 45.2mm | |
| Panel Cut Out Height | 21.7mm | |
| Contact Current Rating | 16 A@ 230 V ac/dc | |
| Actuator Type | Button | |
| IP Rating | IP65 |
