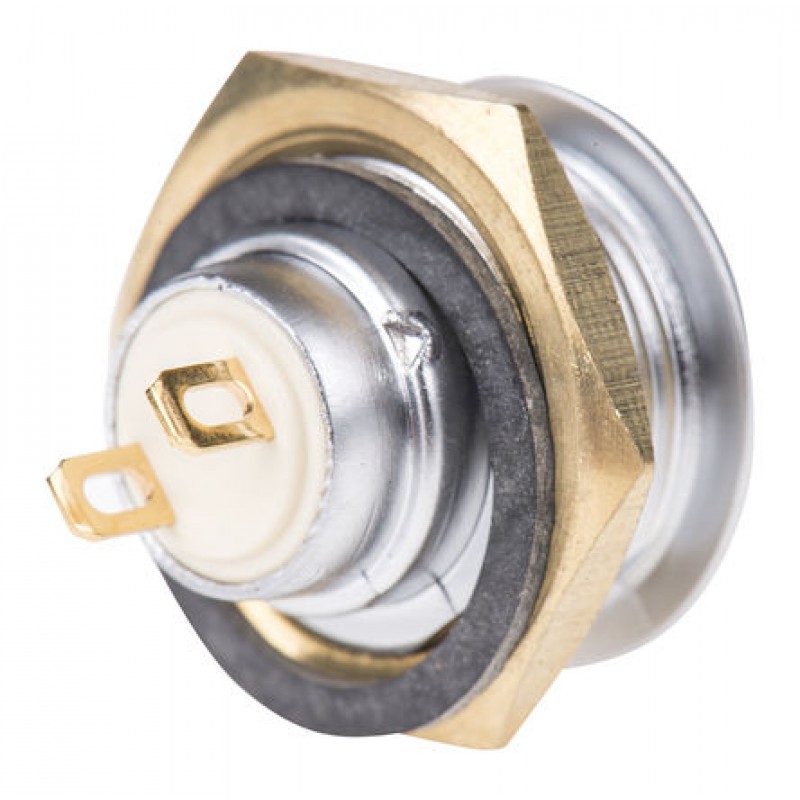

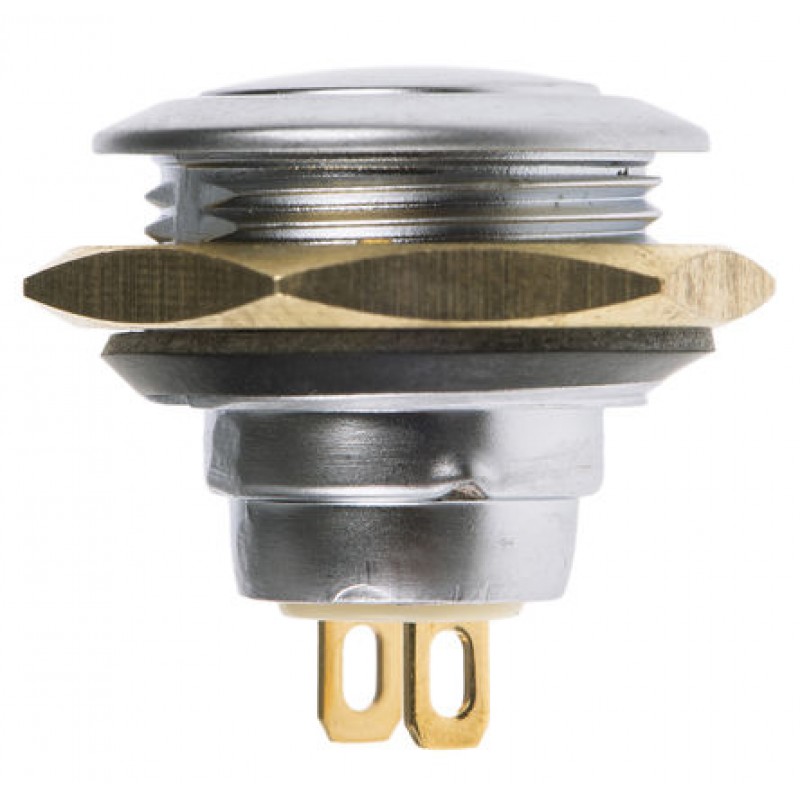

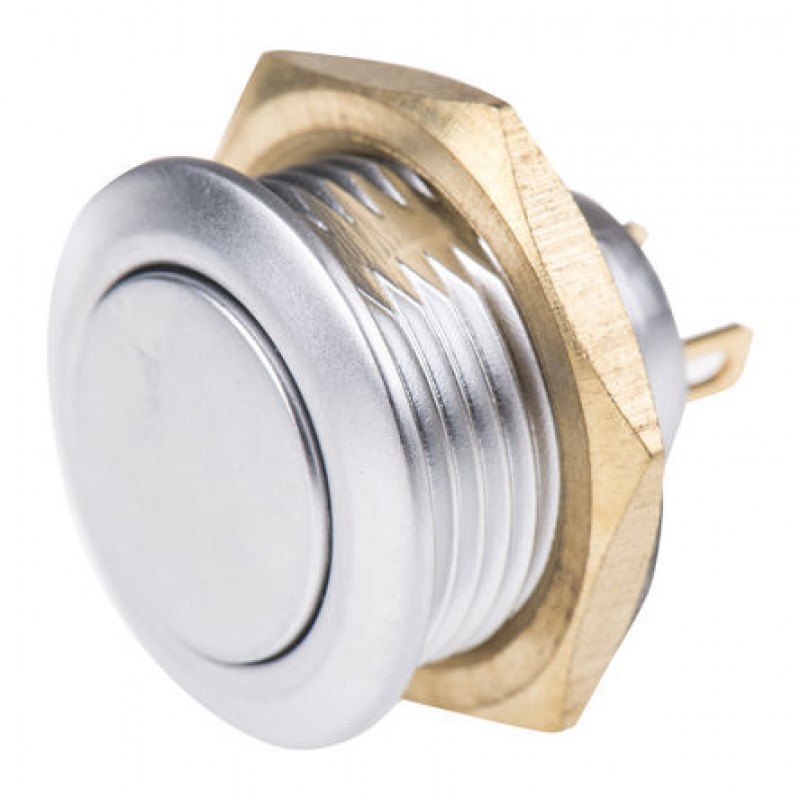

Push Button Switch, IP67, SPST-NO, Panel Mount, Momentary
Product Code: 57-111
Availability: In Stock
Availability: In Stock
$13.96
Ex Tax: $13.96
Ex Tax: $13.96
Product Details
Miniature Switches
Flush-mounting, metal-bodied switches which are highly resistant to physical abuse.
Panel sealed to IP67
Available in momentary and latching versions
Gold plated contacts
Red & Green LED illumination available
Suitable for public area use
Contact Rating: 125mA / 125Vac; 100mA / 50Vdc; 400mA / 32Vac
Anti Vandal Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | SPST-NO | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Width | 14.75mm | |
| Panel Cut Out Diameter | 16mm | |
| Contact Current Rating | 400 mA@ 32 V ac | |
| Actuator Colour | Silver | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +125°C | |
| Contact Material | Gold Plated Palladium Nickel | |
| Actuator Shape | Round | |
| Terminal Type | Solder | |
| Actuator Type | Button | |
| Operating Temperature Range | -40 → +125°C | |
| IP Rating | IP67 |
