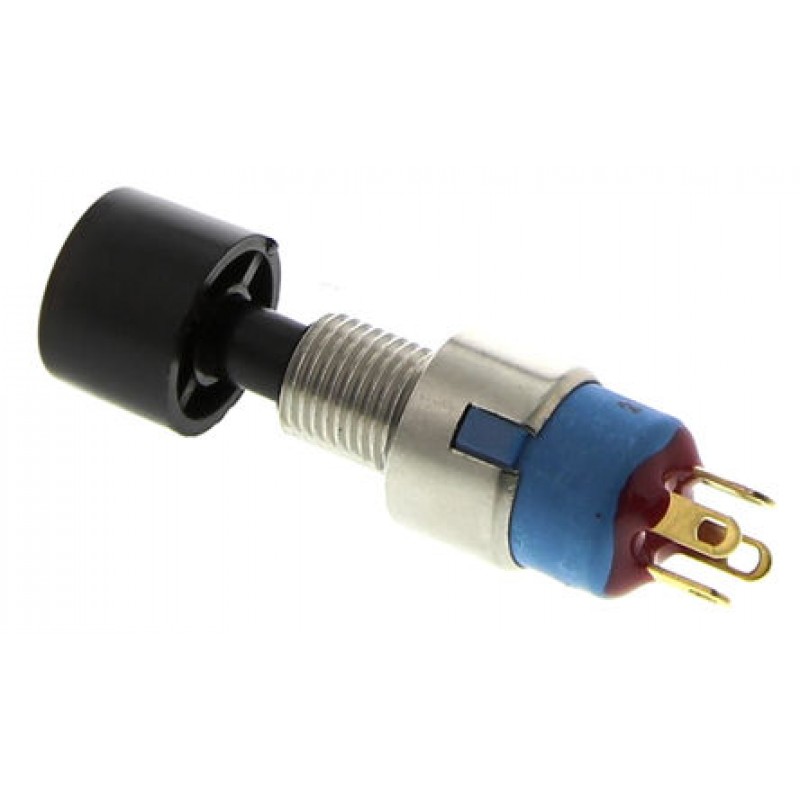

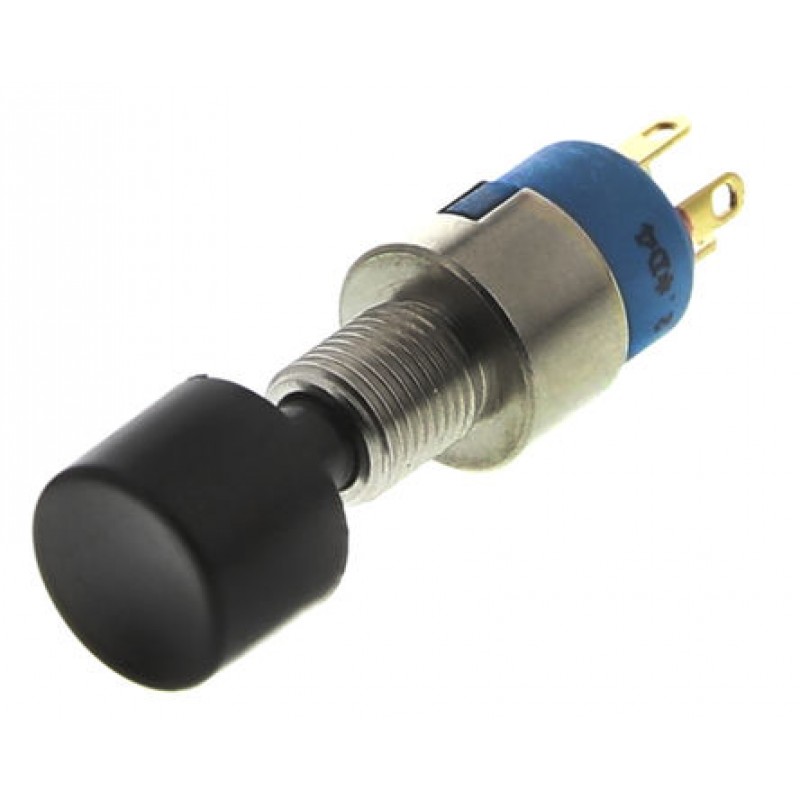

Push Button Switch, SP-NO/NC, Panel Mount, Momentary
• Polyamide, glass filled actuator
• Electrical Life: 250.000 cycles.
• Stock No: 332-830 is a SP-NO/NC Momentary Switch for Panel mounting
• Stock No: 336-747 is a SP-NO Momentary Switch for Panel mounting
• Stock No: 417-5495 is a SPST On-Off Switch for panel mounting
• Stock No: 417-5502 is a SPST On-Off Switch for panel mounting
Product Code: 9635CD+U482
Availability: In Stock
Availability: In Stock
$9.48
Ex Tax: $9.48
Ex Tax: $9.48
Product Details
9000 Series Miniature Switches
The 9000 Series of Miniature Switches are momentary or alternate action, with easy to install panel mounting and PCB mounting options available. These miniature switches are suitable for a wide range of applications.
Features and Benefits:
• Brass nickel plated bushing• Polyamide, glass filled actuator
• Electrical Life: 250.000 cycles.
• Stock No: 332-830 is a SP-NO/NC Momentary Switch for Panel mounting
• Stock No: 336-747 is a SP-NO Momentary Switch for Panel mounting
• Stock No: 417-5495 is a SPST On-Off Switch for panel mounting
• Stock No: 417-5502 is a SPST On-Off Switch for panel mounting
4 to 7mm Diameter Cut Out - Low Voltage - Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | SP-NO/NC | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Diameter | 6.5mm | |
| Contact Current Rating | 100 mA@ 30 V dc | |
| Actuator Colour | Black | |
| Contact Material | Gold Plated Brass | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | +65°C | |
| Operating Temperature Range | -30 → +65°C | |
| Terminal Type | Solder | |
| Actuator Type | Cap |
