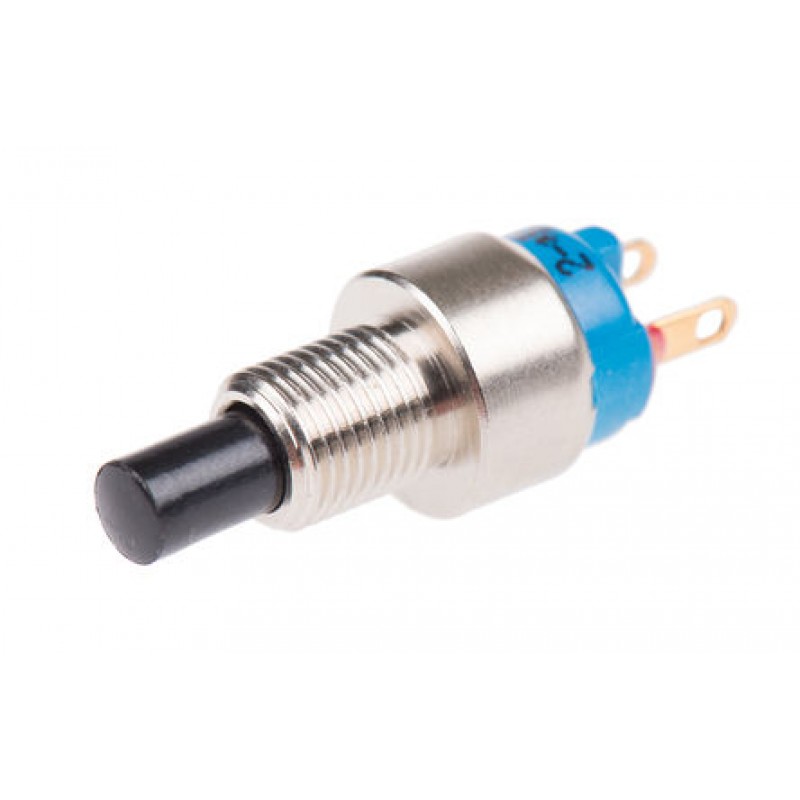

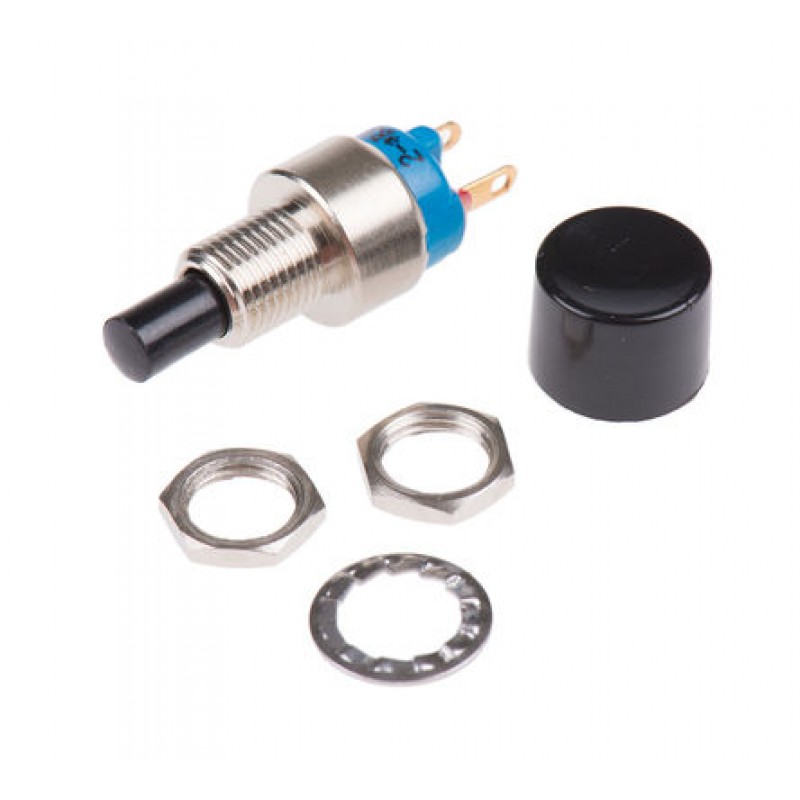

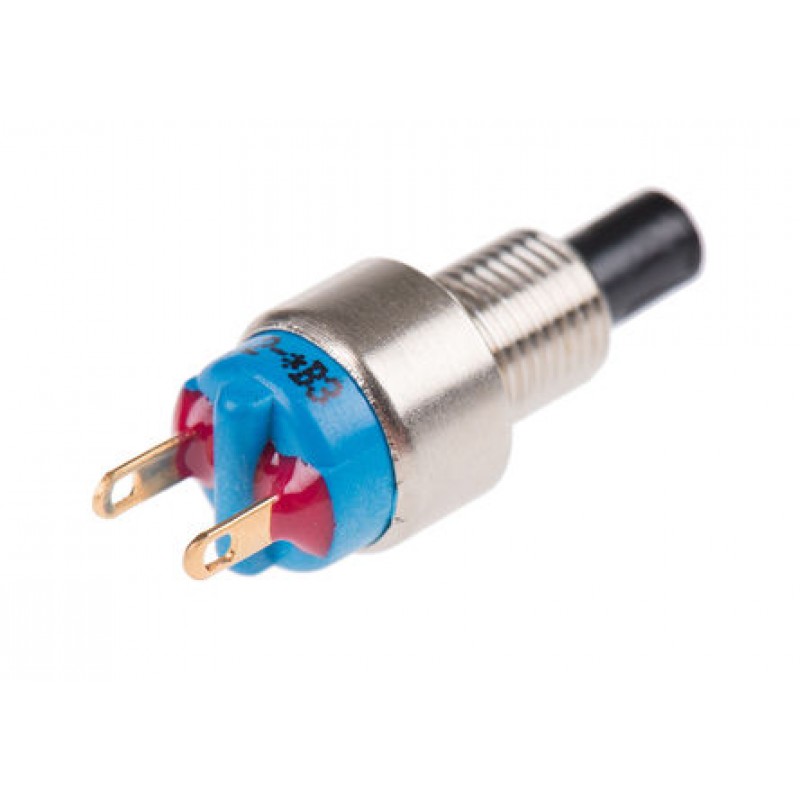

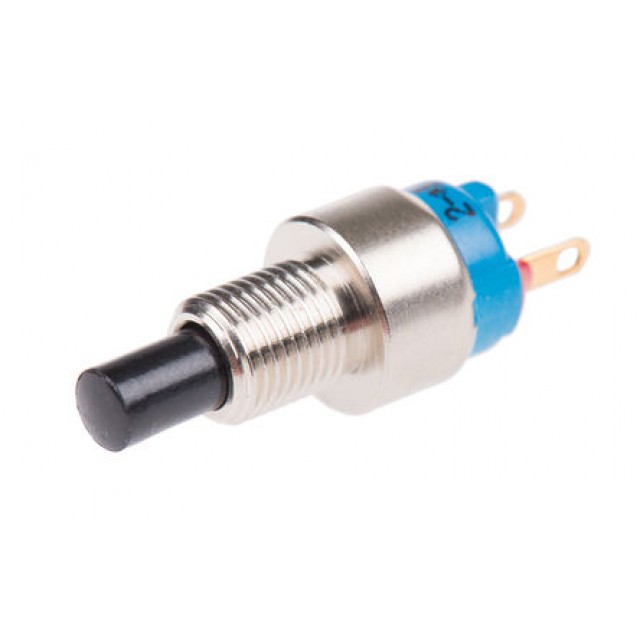

Push Button Switch, SP-NO, Panel Mount, Momentary
   0 reviews  |  Write a review
Product Code: 9633NCD+U482
Availability: In Stock
$8.69
Ex Tax: $8.69
Product Details

9000 Series Miniature Switches

The 9000 Series of Miniature Switches are momentary or alternate action, with easy to install panel mounting and PCB mounting options available. These miniature switches are suitable for a wide range of applications.



Features and Benefits:

• Brass nickel plated bushing
• Polyamide, glass filled actuator
• Electrical Life: 250.000 cycles.
• Stock No: 332-830 is a SP-NO/NC Momentary Switch for Panel mounting
• Stock No: 336-747 is a SP-NO Momentary Switch for Panel mounting
• Stock No: 417-5495 is a SPST On-Off Switch for panel mounting
• Stock No: 417-5502 is a SPST On-Off Switch for panel mounting



4 to 7mm Diameter Cut Out - Low Voltage - Push Button Switches




Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Switch Operation Momentary
Contact Configuration SP-NO
Mounting Type Panel Mount
Panel Cut Out Diameter 6.5mm
Contact Current Rating 100 mA@ 30 V dc
Actuator Colour Black
Contact Material Gold Plated Brass
Minimum Operating Temperature -30°C
Actuator Type Cap
Operating Temperature Range -30 → +65°C
Maximum Operating Temperature +65°C
Terminal Type Solder
