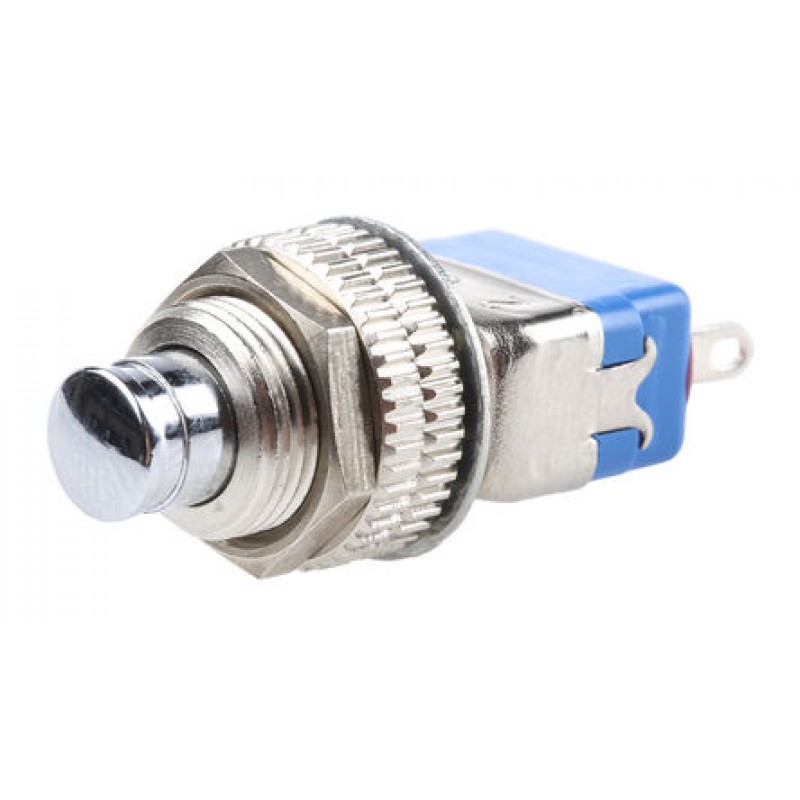

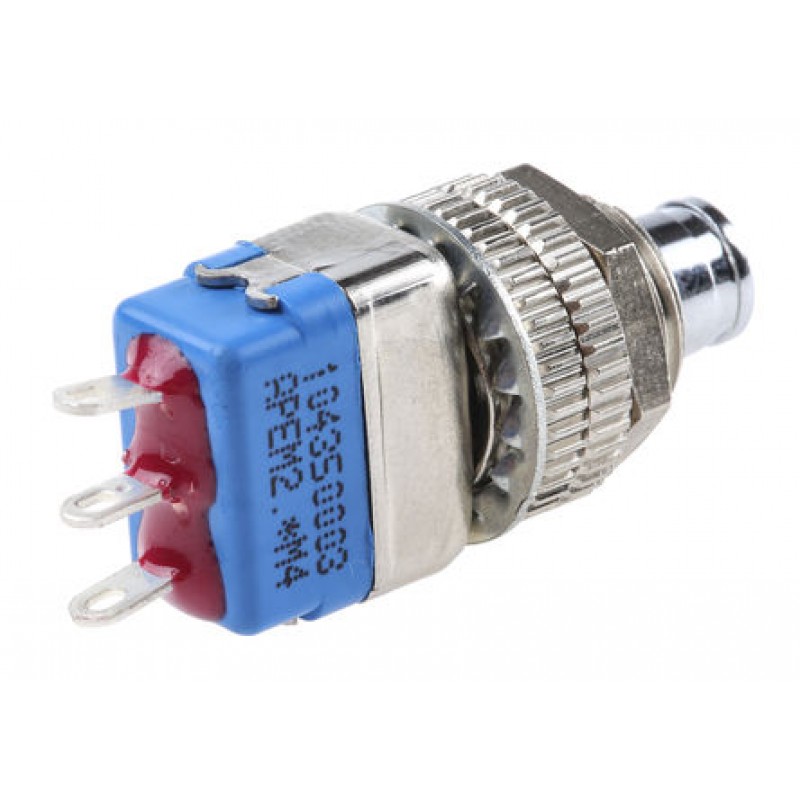

Push Button Switch, SPDT, Panel Mount, On-(On)
Product Code: 104350003
Availability: In Stock
Availability: In Stock
$14.11
Ex Tax: $14.11
Ex Tax: $14.11
Product Details
10400 Series Push-buttons, 10mm
This momentary push-button switch is available as Single Pole Double Throw (see stock no: 236-9547) or Double Pole Double Throw (see stock no: 236-9553).
With solder lug terminals sealed into the switch by epoxy resin, this compact panel mount switch is designed with convenient installation in mind. The 10400 series momentary switch has a small metal actuator can be covered with interchangeable coloured plastic caps, available separately.
• Terminations sealed with epoxy resin
• 10mmø panel cut out
• 13mmø button caps available separately
• Contact Rating-A: 2; 3 A
• Contact Rating-V: 220 Vac; 24 Vdc
• Contact Resistance: 0.01 Ohm
• Dielectric Strength: 2000 V
• Operating Temperature Range: -40 → +85 C
• Solder Lug Terminals
8-10 mm diameter cut out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | On-(On) | |
| Contact Configuration | SPDT | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Diameter | 10.2mm | |
| Contact Current Rating | 3 A @ 24 V dc | |
| Voltage Rating | 24V dc | |
| Actuator Colour | Silver | |
| Contact Material | Silver | |
| Actuator Shape | Round | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| CAD Drawing | 3D CAD Model | |
| Terminal Type | Solder | |
| Actuator Type | Plunger |
