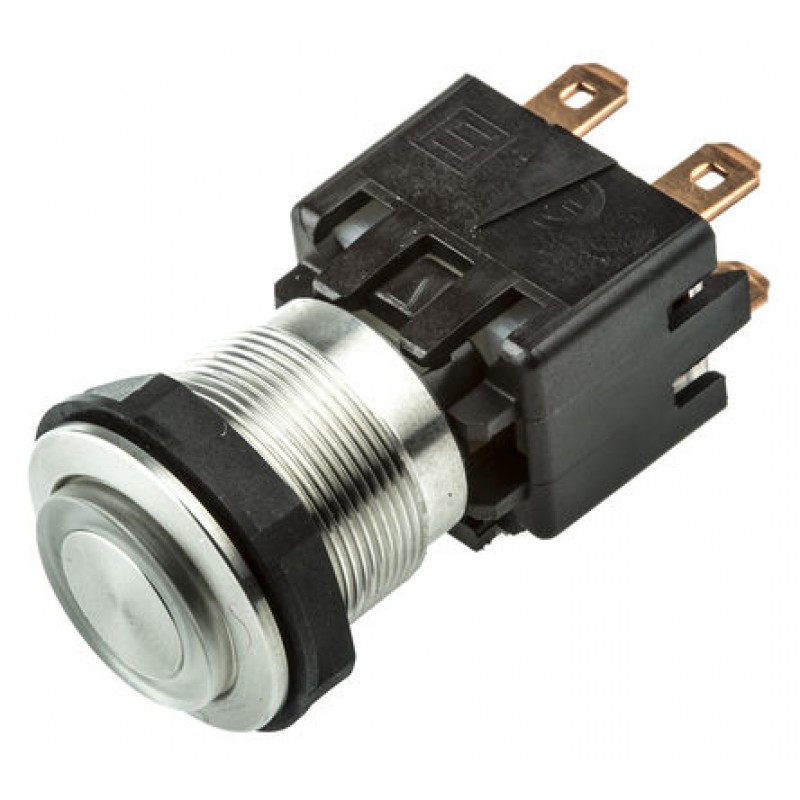

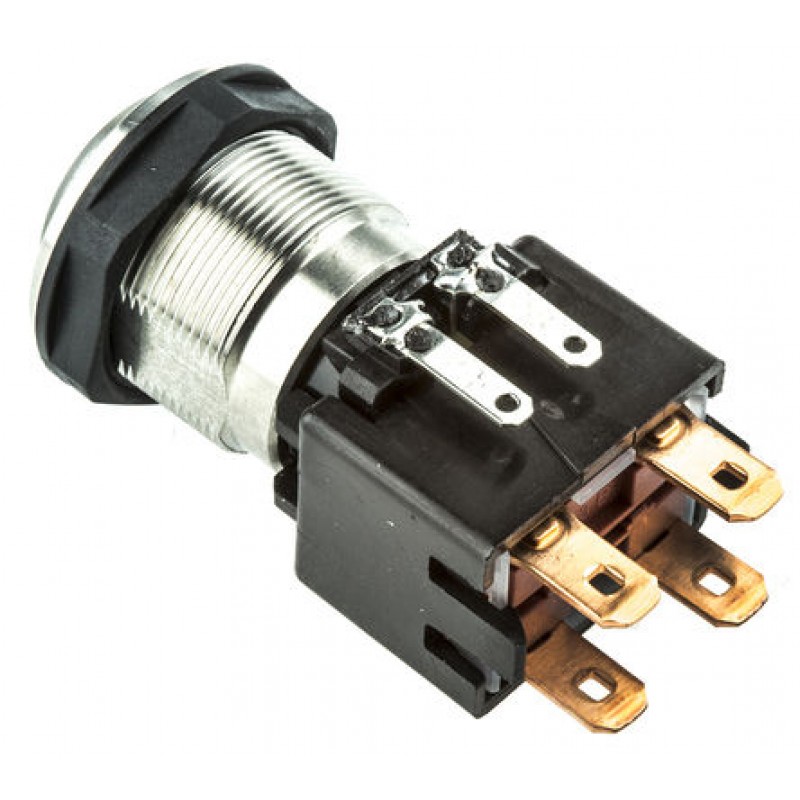

Push Button Switch, IP64, 19 mm, DPST-NO, Panel Mount, Latching , Illuminated, LED Blue
Product Code: 1.6824.1124000
Availability: In Stock
Availability: In Stock
$22.35
Ex Tax: $22.35
Ex Tax: $22.35
Product Details
Anti-Vandal M19 & M22 Push Button Switches - MSM LA Series (Latching)
Robust pushbutton switch suitable for use in harsh environments - IK07 shock resistance (DIN EN 50102)
IP64 sealed stainless steel housing and latching (push-on, push-off) actuator
Actuator with 10N operating force and 4.5mm travel - protrudes 3.7mm above panel in off state
Quick connect terminals
Long life - up to 150,000 mechanical operations
Non-illuminated or red, green or blue LED point or ring illuminated versions, available in 19 or 22mm Ø panel cut outs
Switching status optically visible - illuminated viewing angle of 180°
Note
Point illuminated types require suitable series resistor; Ring illuminated types incorporate resistors for 24Vdc operation
Approvals
ENEC, UL, CSA
Anti Vandal Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Latching | |
| Contact Configuration | DPST-NO | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Size | 19 mm | |
| Contact Current Rating | 12 A@ 250 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Natural | |
| LED Colour | Blue | |
| IP Rating | IP64 | |
| Operating Temperature Range | -20 → +85°C | |
| Actuator Type | Button | |
| Maximum Operating Temperature | +85°C | |
| Actuator Shape | Round | |
| Minimum Operating Temperature | -20°C | |
| Terminal Type | Tab |
