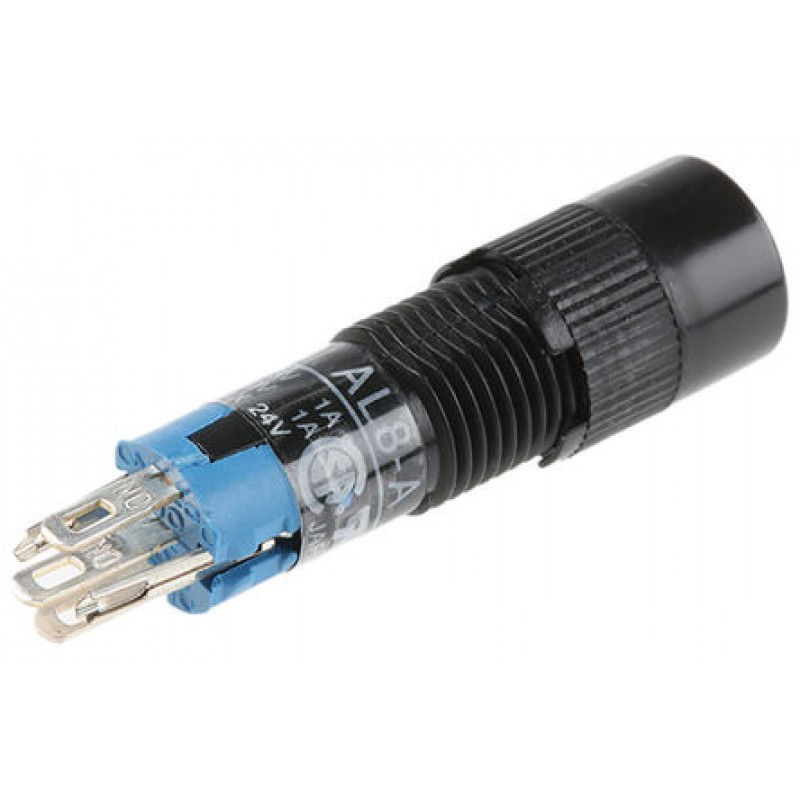

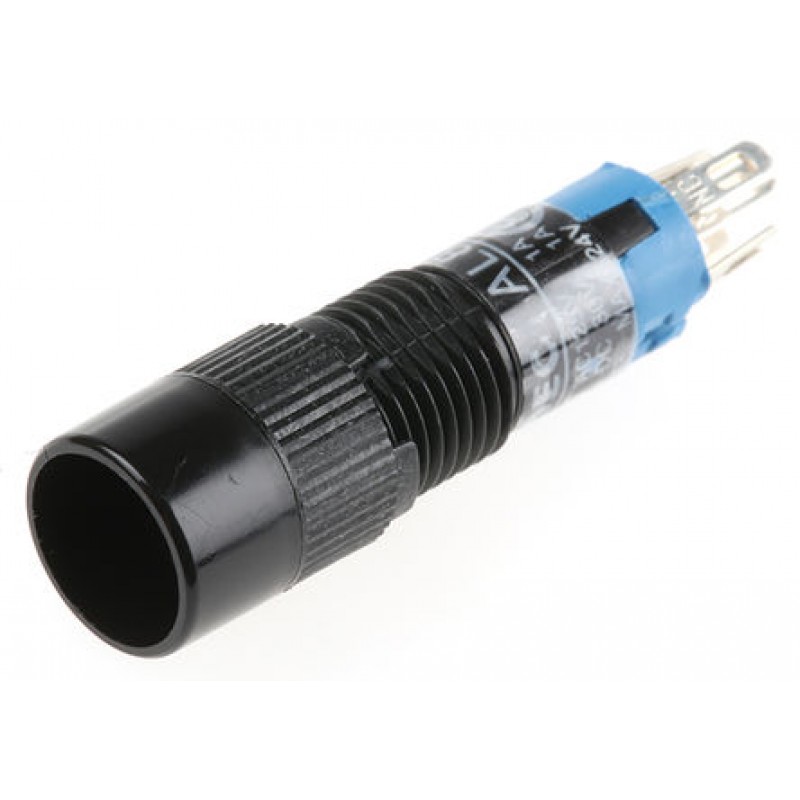

Push Button Switch, IP40, 8mm, SPDT, Panel Mount, Latching , Illuminated
Current should be limited to 20mA by use of a suitable external resistor as detailed at the beginning of the Optoelectronics/Indicators section. VF @ IF 20mA=1.7V (red), 2.1V (green) and 2.2V (yellow)
Note: When not illuminated, the green LED appears to be yellow.
Product Code: L8M-A100
Availability: In Stock
Availability: In Stock
$13.95
Ex Tax: $13.95
Ex Tax: $13.95
Product Details
8mm Sub-miniature Illuminated Push-button Switches
8mm contact indicators for panel mounting
LED illumination, Suitable LEDs are supplied separately
Indicators are available in both square and round styles
Solder Tab terminals
LEDs
A range of LEDs specifically for use with this sub-miniature indicator seriesCurrent should be limited to 20mA by use of a suitable external resistor as detailed at the beginning of the Optoelectronics/Indicators section. VF @ IF 20mA=1.7V (red), 2.1V (green) and 2.2V (yellow)
Note: When not illuminated, the green LED appears to be yellow.
Lenses
Two-part lenses comprising a diffuser and a coloured transparent front cover. Diffuser may be marked to indicate switch function, etc
| Contact Rating | 100 mA @ 50 Vac; 72 Vdc |
| Contact Resistance | 50mΩ (max) |
| IP Rating | 40 |
| Operating Temperature Range | -25 to +55 °C |
| Mechanical Life | 2 x 166 operations |
Note
Square and round bezel indicators do not include a lens, switch or LED. Suitable lenses need to be ordered separately.
8-10 mm diameter cut out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Latching | |
| Contact Configuration | SPDT | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Size | 8mm | |
| Panel Cut Out Diameter | 8mm | |
| Contact Current Rating | 100 mA @ 50 V ac | |
| Illuminated | Yes | |
| Terminal Type | Solder | |
| Minimum Operating Temperature | -25°C | |
| IP Rating | IP40 | |
| Operating Temperature Range | -25 → +55°C | |
| Actuator Type | Button | |
| Maximum Operating Temperature | +55°C |
