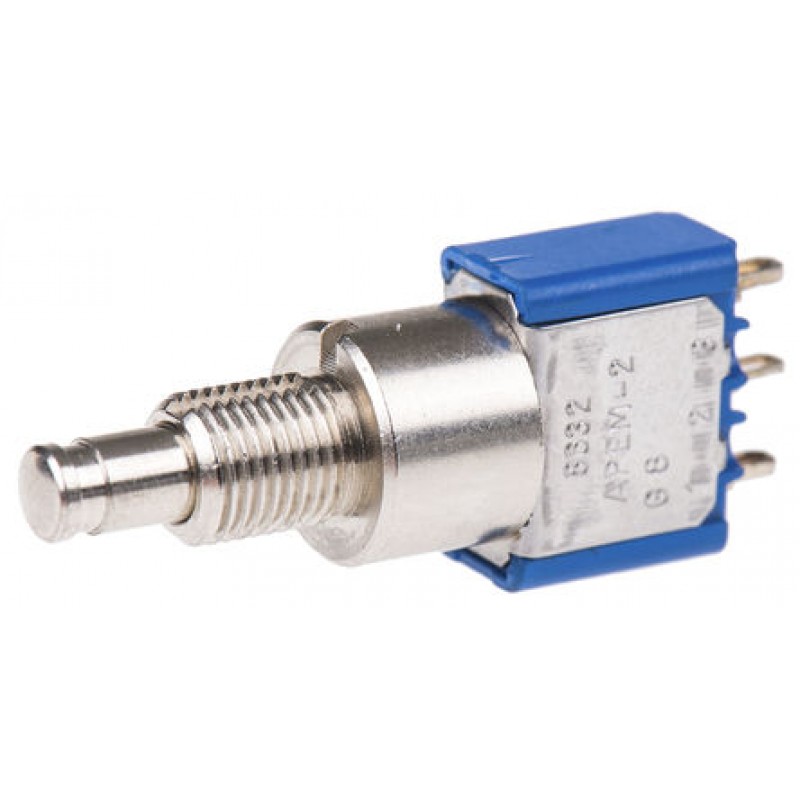

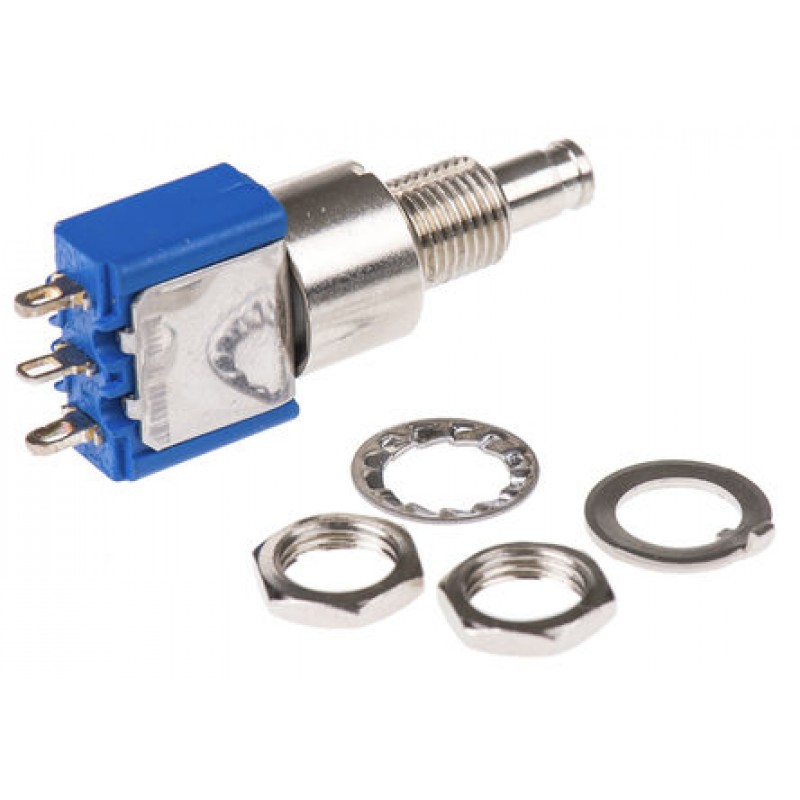

Push Button Switch, SPDT, Panel Mount, On-(On)
   0 reviews  |  Write a review
Product Code: 632A
Availability: In Stock
$12.65
Ex Tax: $12.65

Product Details

The compact miniature case has a stainless steel body and epoxy sealed terminals, and the nickel plated brass actuator is compatible with interchangeable coloured caps. Optional sealing hoods are also available.



Features and Benefits:

• Electrical Life: 30000 cycles
• Insulation Resistance: 1000 MOhm @ 500 V dc
• Gold plated brass, or Gold Plated Silver terminals available
• Stock No: 103-5732 is an SPDT Momentary switch
• Stock No: 103-5748 is an SPDT Latching Switch
• Stock No: 103-5760 is a DPDT Momentary switch
• Stock No: 103-5776 is a DPDT Latching Switch
• Stock No: 103-5782 is a black push-button cap
• Stock No: 103-5798 is a red push-button cap
• Stock No: 103-5805 is a green push-button cap
• Stock No: 119-3692 is a sealing hood
• Stock No: 692-8428 is an SPDT Momentary switch
• Stock No: 692-8430 is an SPDT Latching switch
• Stock No: 692-8437 is a DPDT Momentary switch
• Stock No: 692-8434 is a DPDT Latching switch

Available in this range:





4 - 7mm Diameter Cut Out - 230Vac Rated




Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Switch Operation On-(On)
Contact Configuration SPDT
Mounting Type Panel Mount
Panel Cut Out Diameter 6.5mm
Contact Current Rating 4 A@ 30 V dc
Contact AC Voltage Rating 125V
Contact DC Voltage Rating 30V
Actuator Colour Silver
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Actuator Shape Round
Terminal Type Solder, Tab
Actuator Type Plunger
CAD Drawing 3D CAD Model
Operating Temperature Range -40 → +85°C
Contact Material Silver
