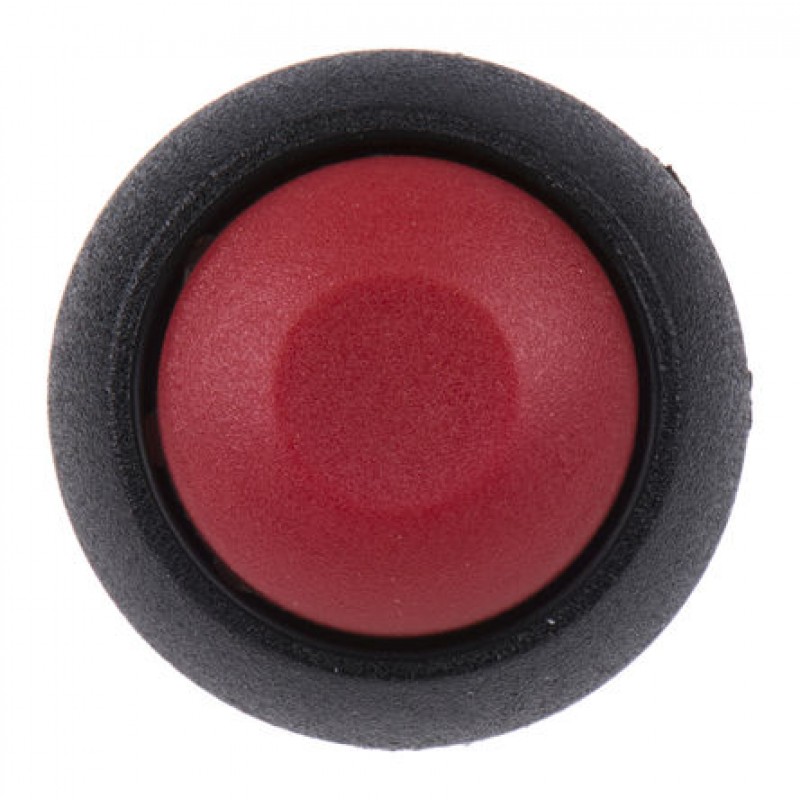

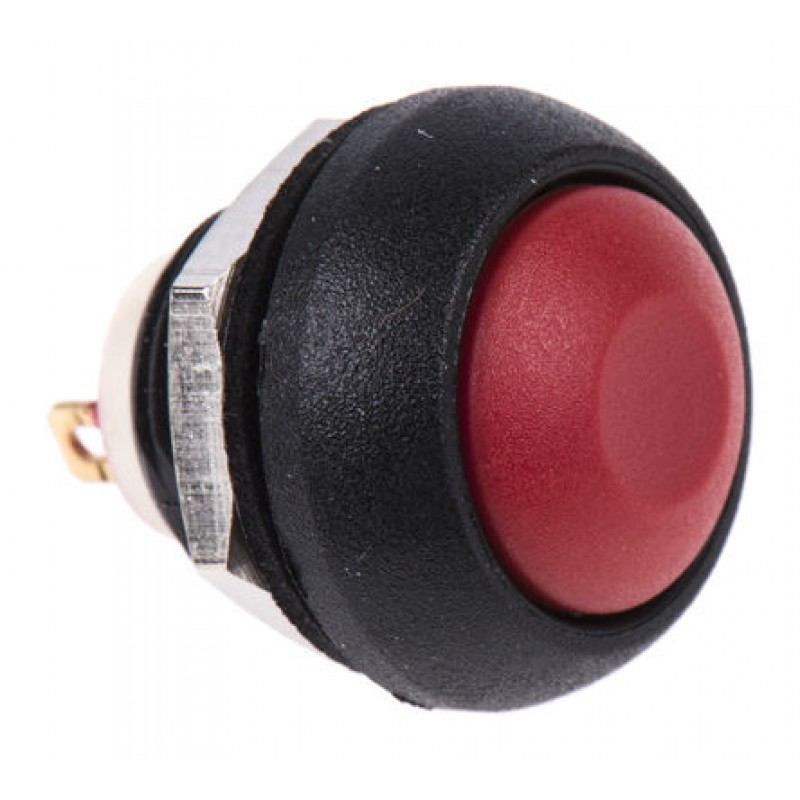

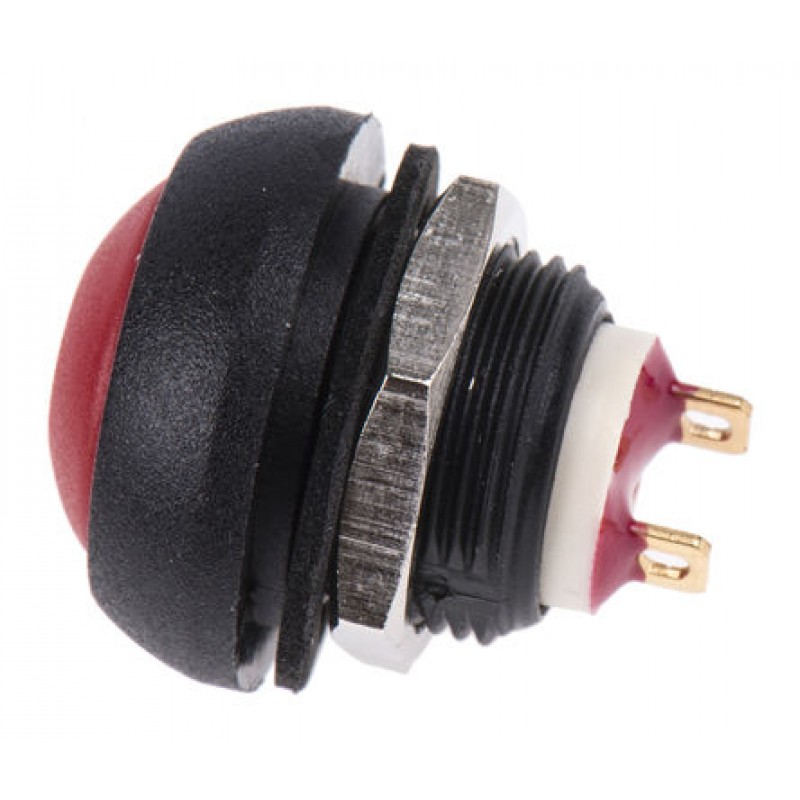

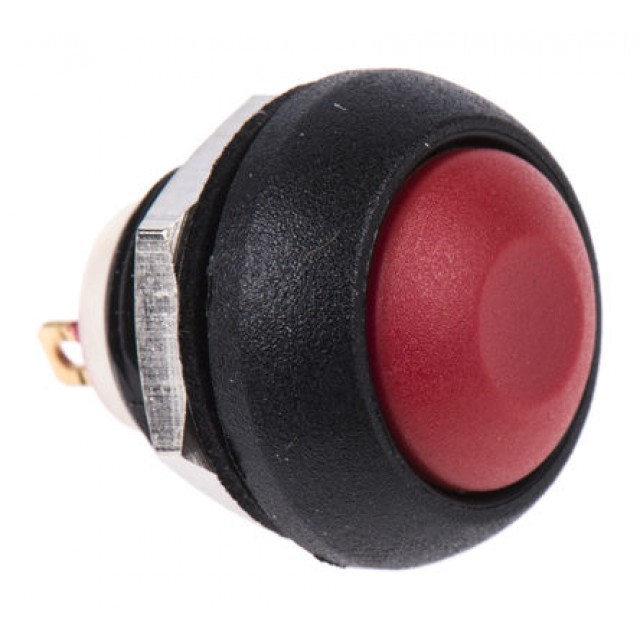

Push Button Switch, IP67, SPST-NO, Momentary
Product Code: SR3SAD60
Availability: In Stock
Availability: In Stock
$11.98
Ex Tax: $11.98
Ex Tax: $11.98
Product Details
Momentary pushbutton switches IS 67 Series IP – lug terminals, ø 12mm bushing
Thin behind-panel depth.
Compact and light.
Plastic button and case.
Excellent tactile feedback.
| Function: | normally open (N/O) |
| Breaking capacity: | 400mA 32Vac – 500,000 cycles 100mA 50Vdc – 500,000 cycles 125mA 125Vac – 500,000 cycles |
| Mechanical life: | 1,000,000 cycles |
| Reduced behind-panel depth: | 13mm |
| Panel cutout: | 13.60mm |
| Contact resistance: | 50mΩ max. |
| Contact material: | gold-plated silver |
| Bushing/bezel: | PA 6/6 |
| Body: | thermoplastic UL94-V0 |
| Resistance to impact: | 100g according to IEC 512-4, test 6c |
| Resistance to vibration: | 10-500 Hz – 10g according to IEC 512-4, test 6d |
| Resistance to salt spray: | IEC 512-6, test 11f |
| Operating temperature: | -40°C to +85°C |
| type of terminals: | solder lugs |
| Protection index: | IP 67 |
Standards
IEC 512-4 - IEC-512-6
12-15 mm diameter cut out - Low Voltage - Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | SPST-NO | |
| Panel Cut Out Diameter | 13.6mm | |
| Contact Current Rating | 400 mA @ 32 V ac | |
| Actuator Colour | Red | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| IP Rating | IP67 | |
| Contact Material | Gold Plated Silver | |
| Actuator Type | Button | |
| Terminal Type | Solder | |
| Operating Temperature Range | -40 → +85°C |
