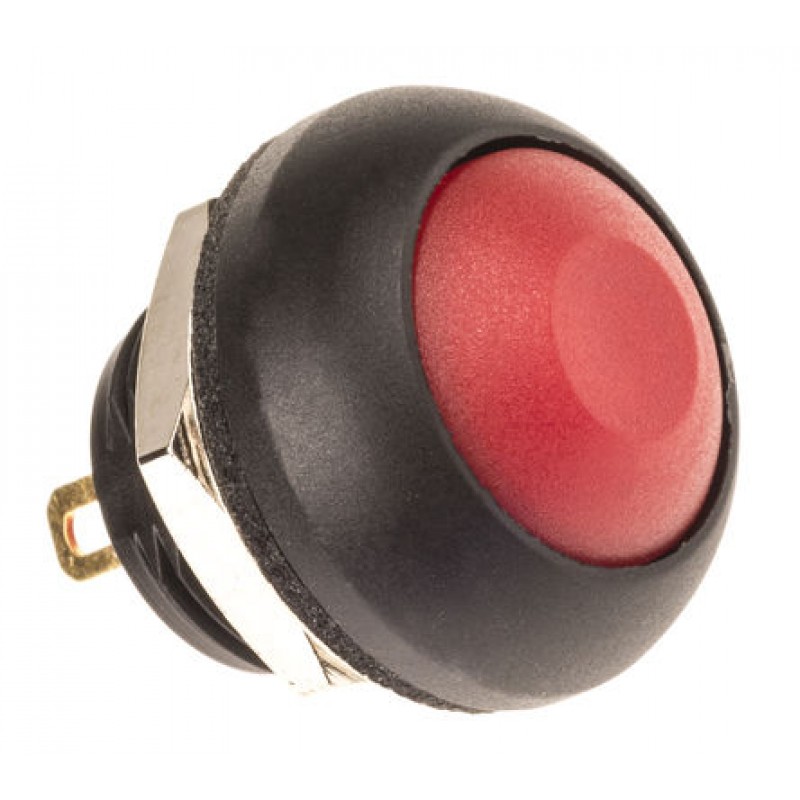

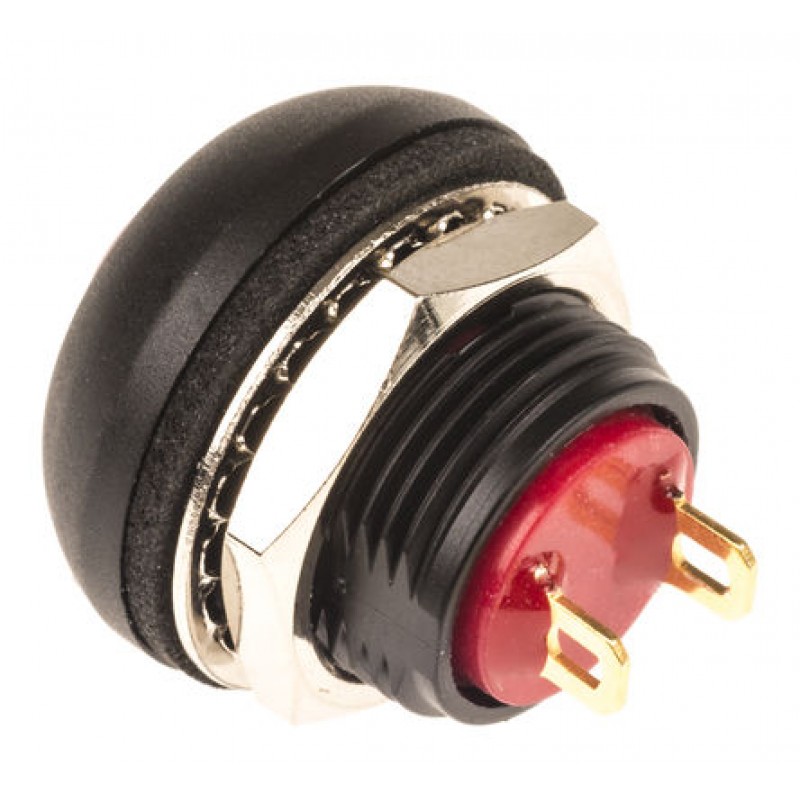

Push Button Switch, IP67, SPST, Panel Mount, Off-(On)
Product Code: DPW1CGR
Availability: In Stock
Availability: In Stock
$8.35
Ex Tax: $8.35
Ex Tax: $8.35
Product Details
Miniature Sealed Pushbutton Switches - DPW Series
Waterproof
Thermoplastic case
With or without a superbright LED
Lead-free solderable
Long mechanical life with a minimum of 1000000 cycles
Note
LED versions require a resistor to limit LED current to approx 20mA, typically 1,200 Ohms 0.5W, see Stock No7078233 for 24V operation.
12-15 mm diameter cut out - Low Voltage - Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Off-(On) | |
| Contact Configuration | SPST | |
| Mounting Type | Panel Mount | |
| Contact Current Rating | 400 mA @ 32 V ac | |
| Actuator Colour | Red | |
| Contact Material | Gold Plated Silver | |
| IP Rating | IP67 | |
| Operating Temperature Range | -30 → +85°C | |
| Case Colour | Black | |
| Terminal Type | Solder | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -30°C | |
| Actuator Type | Button |
