Push Button Switch, IP67, DPDT, PCB, On-(On)
   0 reviews  |  Write a review
Product Code: 8WR2C2M2RES
Availability: In Stock
$7.65
Ex Tax: $7.65
Product Details

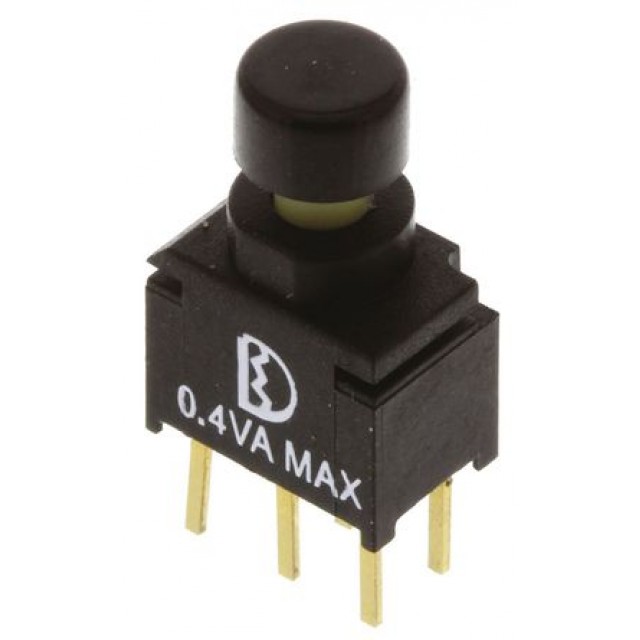

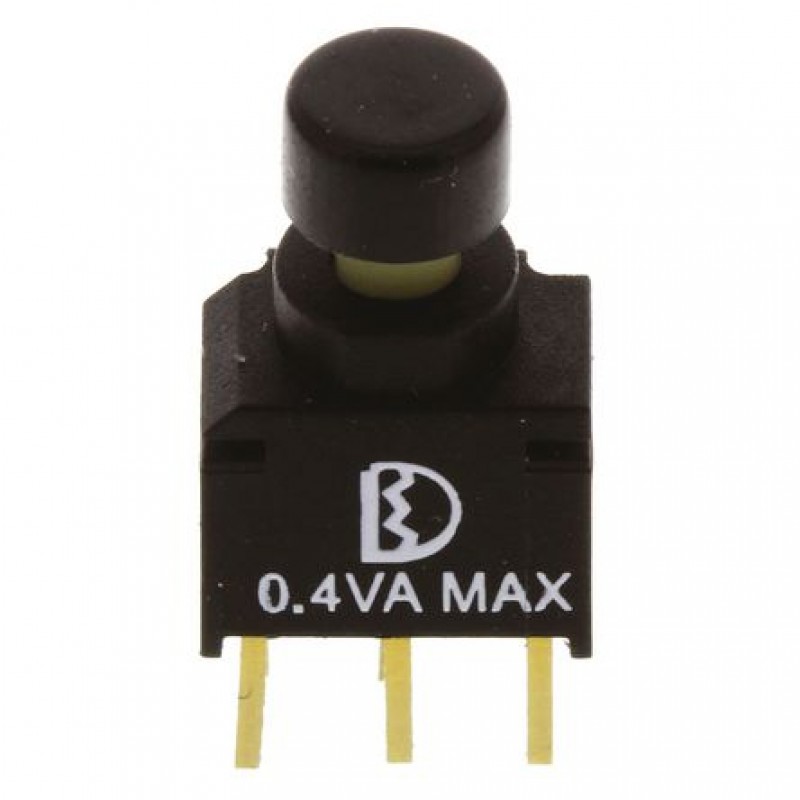

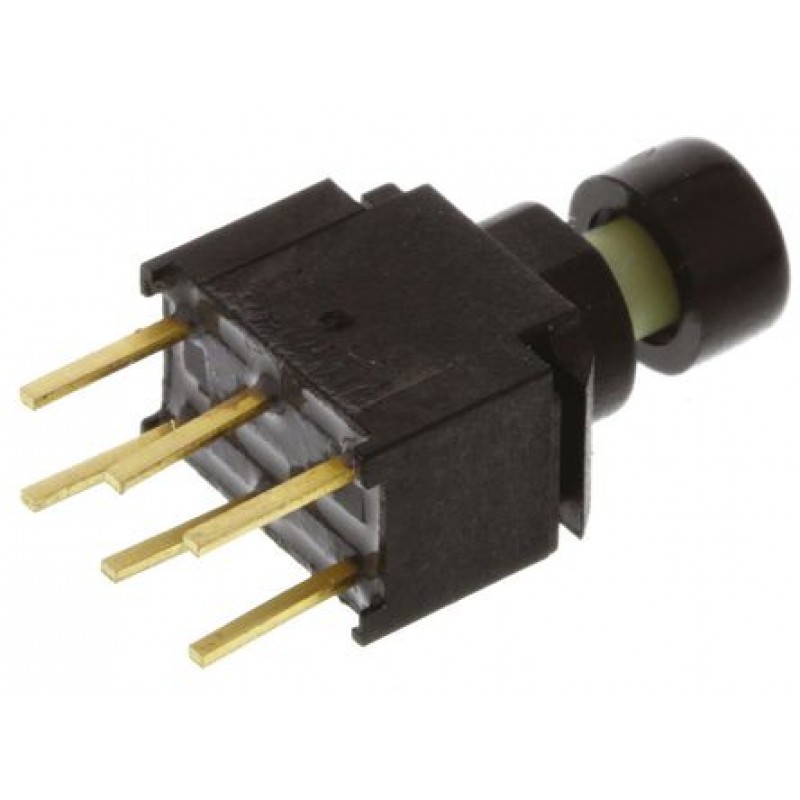

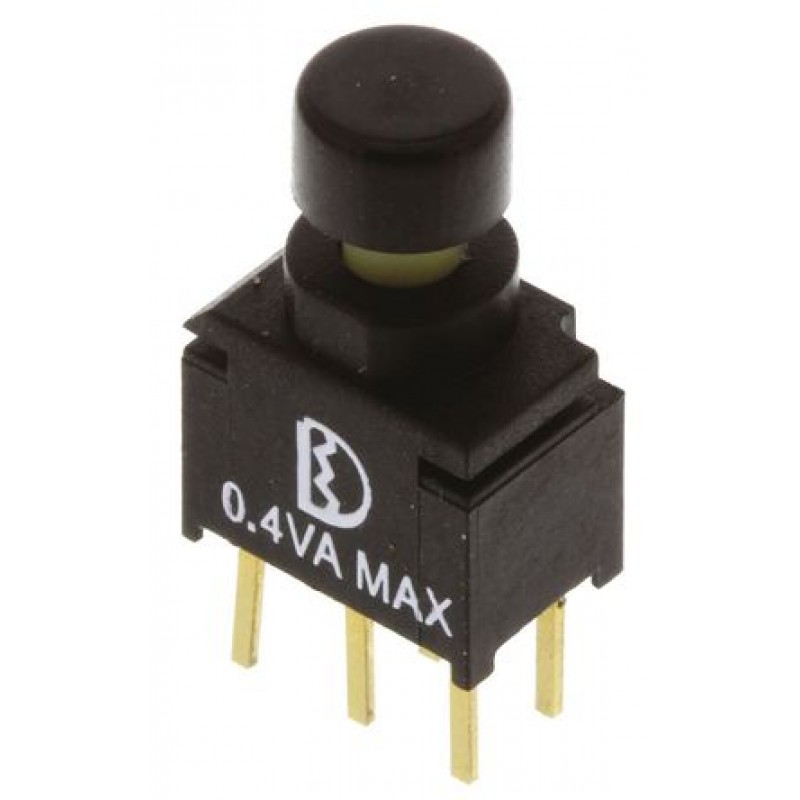

Sealed Ultra-Miniature Push Button switch

Sealed ultra-miniature push button switches from RS. The switches are sealed against solder and cleaning processes. Suitable applications include automotive, networking equipment, small instrumentation and controls.



Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Switch Operation On-(On)
Contact Configuration DPDT
Mounting Type PCB
Contact Current Rating 0.4 A@ 20 V
Actuator Colour Black
Contact Material Silver Plated Copper Alloy
IP Rating IP67
Operating Temperature Range -30 → +85°C
Actuator Type Cap
Maximum Operating Temperature +85°C
Terminal Type Through Hole
Minimum Operating Temperature -30°C
