Push Button Switch, IP68, SP, Panel Mount, Screw Mount, Momentary
Product Code: P0037
Availability: In Stock
Availability: In Stock
$17.09
Ex Tax: $17.09
Ex Tax: $17.09
Product Details

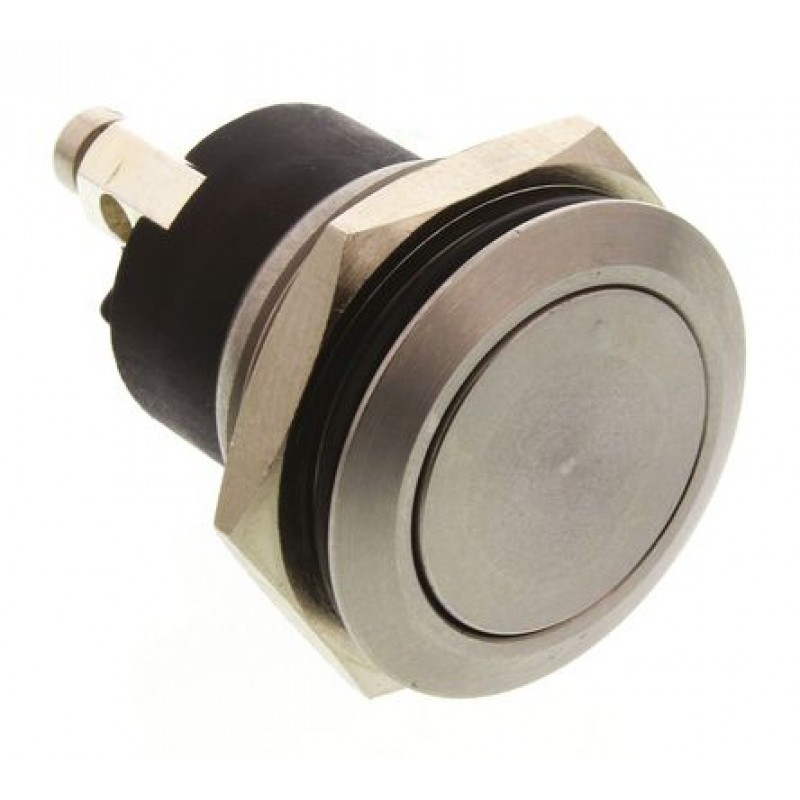

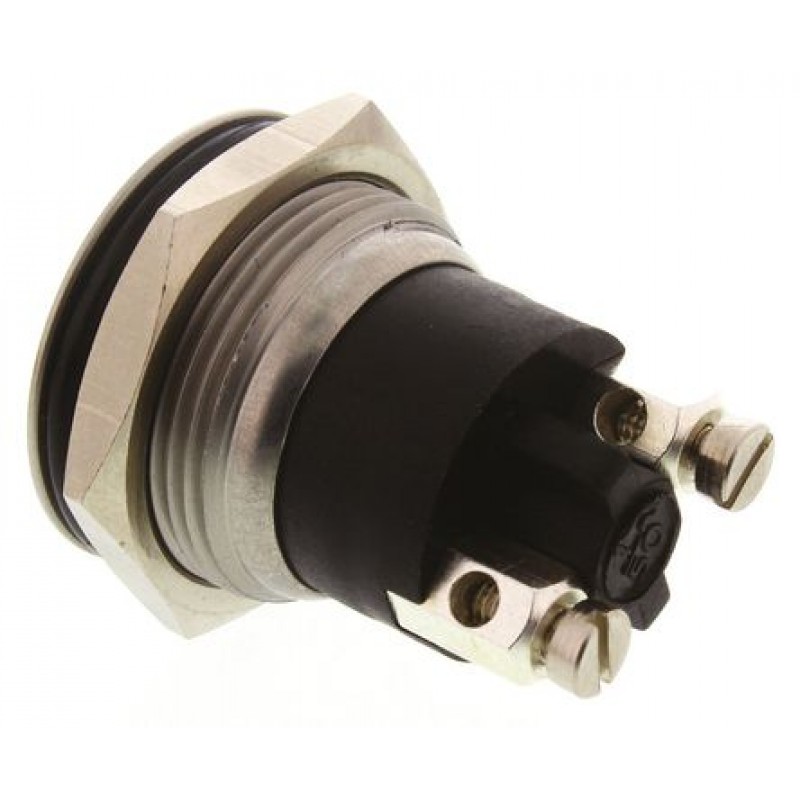

Stainless Steel Vandal Resistant Pushbutton
Prominent, domed and low profile versions
IP66 & 68 front panel sealing options
Vandal resistant stainless steel switch body and button
High resistance to wear and tear, corrosion and harsh use in hostile environments
Anti Vandal Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | SP | |
| Mounting Type | Panel Mount, Screw Mount | |
| Panel Cut Out Diameter | 19.2mm | |
| Contact Current Rating | 1 A @ 50 V ac | |
| Actuator Colour | Silver | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | +70°C | |
| Actuator Type | Flush | |
| Minimum Operating Temperature | -20°C | |
| IP Rating | IP68 | |
| Contact Material | Silver Plated Brass | |
| Operating Temperature Range | -20 → +70°C | |
| Actuator Shape | Round |
