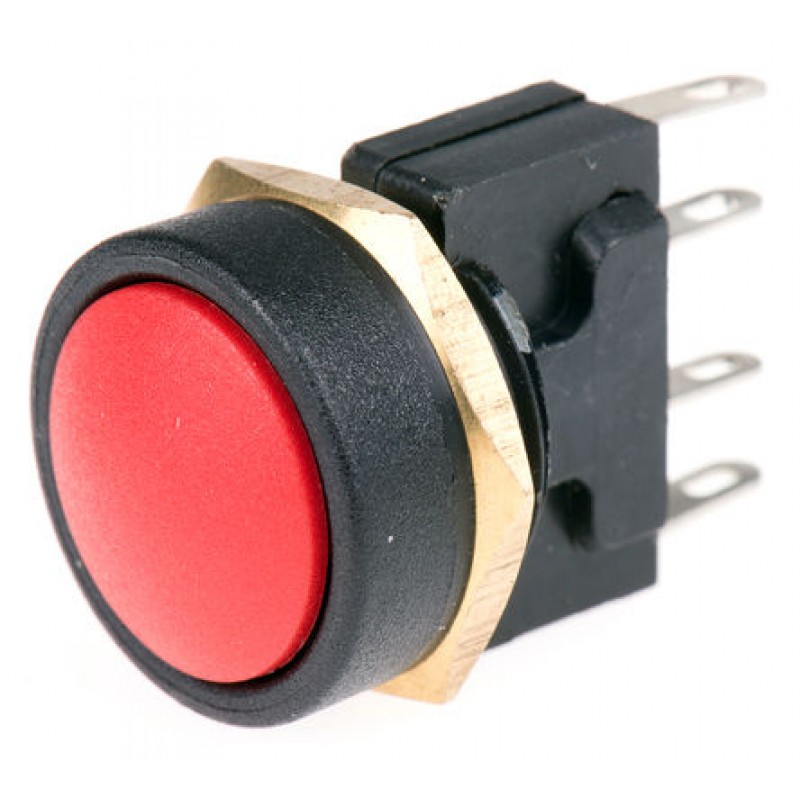

Push Button Switch, SPDT-NO/NC, Panel Mount, Momentary
Product Code: 59122
Availability: In Stock
Availability: In Stock
$14.15
Ex Tax: $14.15
Ex Tax: $14.15
Product Details
High Current Sealed Pushbuttons
The 49-59 series offers a wide selection of options suitable for use in a wide variety of applications. They are panel sealed to IP67 making them ideal for harsh environments. They have a wide selection of colours, illuminated or non-illuminated options and tabs or insulated leads. They are all panel mounted through a 16mm panel cut out.

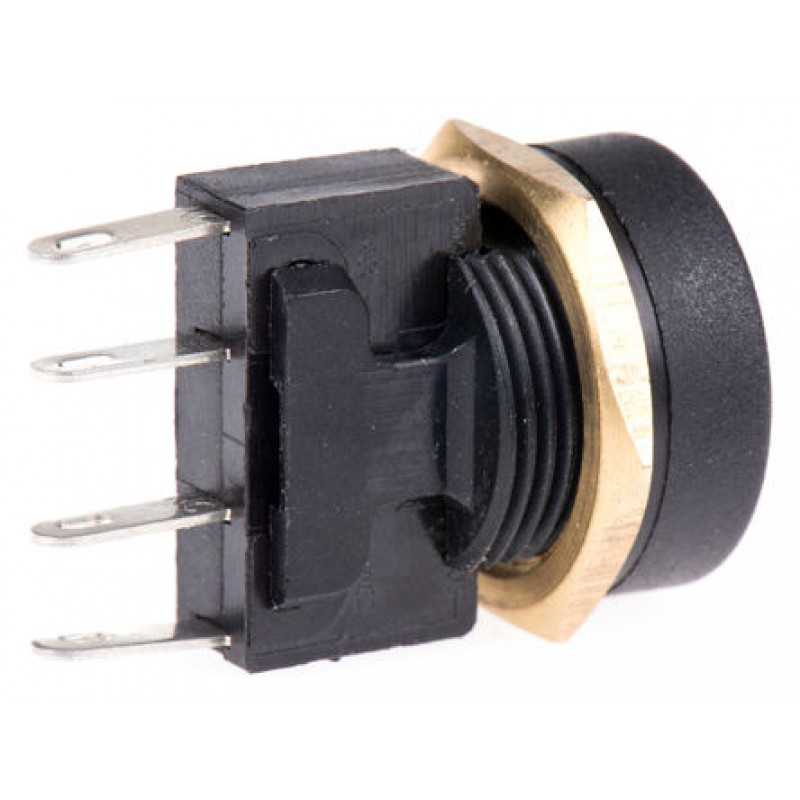

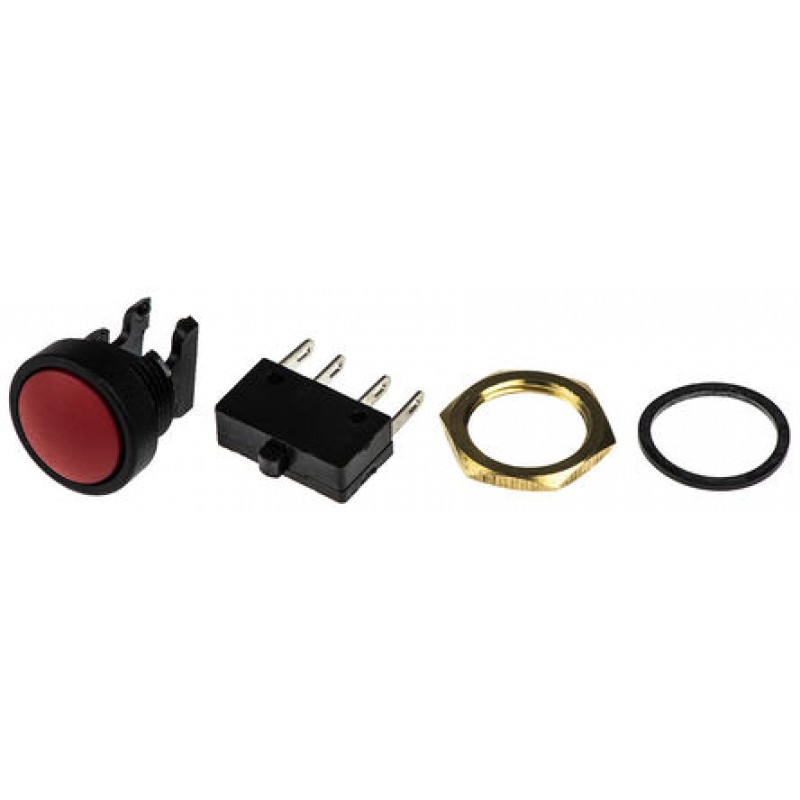

Panel mount pushbuttons with rear mounted microswitches that snap into place from the rear after assembly of the actuator
UL94V-Ø rated body and button
Form Z (1 N/O + 1 N/C) contact
Panel sealed to IP67
Max.Panel thickness 1.5 mm
| Contact rating | 10A @ 250Vac, 5A @ 28Vdc for microswitch (MS) type. 400mA @ 32Vdc for Flying Lead (FL) type |
| Contact resistance | ≤ 25mΩ |
| Insulation resistance | >1G Ω |
| Electrical life | 5 x 104 operations |
| Operating Temperature Range | -55 → +105°C |
| Operating force | 3N nom. |
| Panel cut-out |
16.25mm
|
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | SPDT-NO/NC | |
| Mounting Type | Panel Mount | |
| Contact Current Rating | 10 A @ 250 V ac | |
| Actuator Colour | Red | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Actuator Type | Button | |
| Terminal Type | Flying Lead | |
| Contact Material | Gold Plated Palladium Nickel | |
| Operating Temperature Range | -55 → +105°C |
