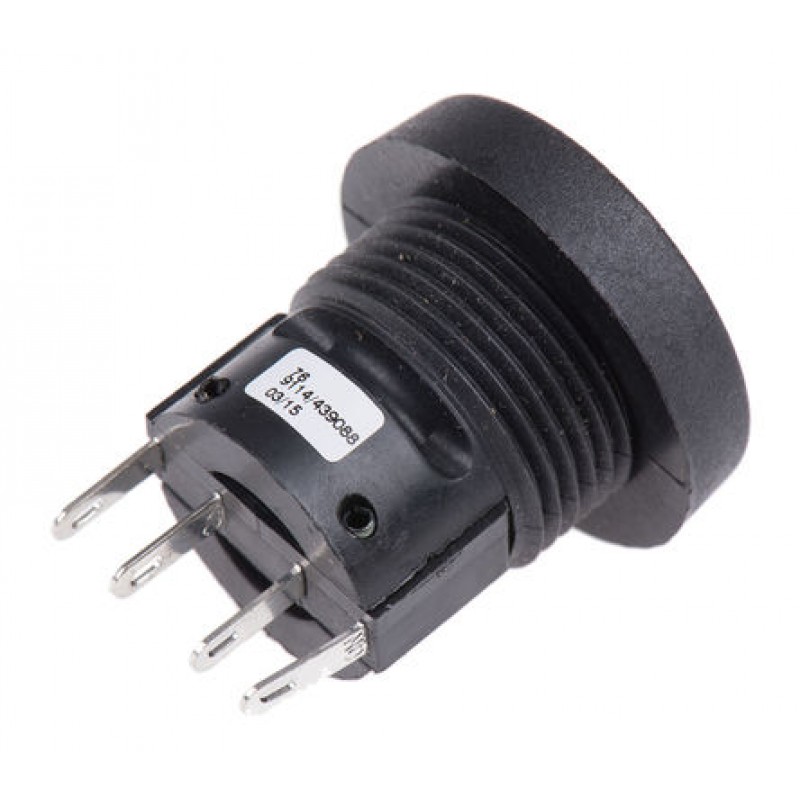

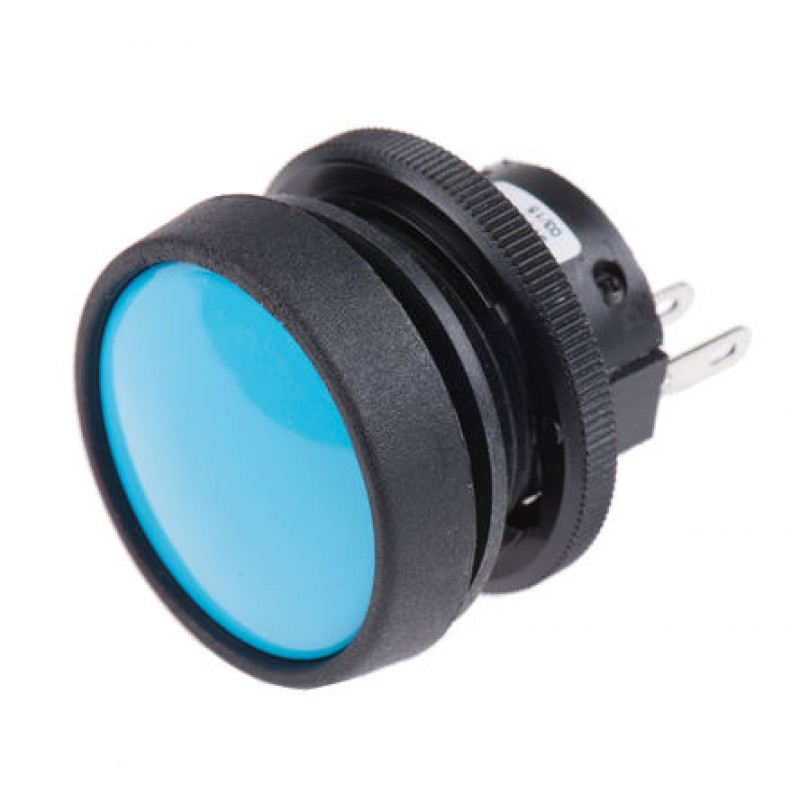

Push Button Switch, IP67, SP-NO/NC, Panel Mount, Momentary
Product Code: 9114/439088
Availability: In Stock
Availability: In Stock
$14.15
Ex Tax: $14.15
Ex Tax: $14.15
Product Details
Flush Mount Pushbutton Switches, IP67 Sealed
Unique flexible membrane button
Panel sealable to IP67
Fits DIN standard 22.5mm hole or, by reversing the locknut, into a 25mm hole
Single pole microswitch switching element
Silver double-make-double-break changeover contacts (type Z)
Terminated with 0.110in blade terminals
Max. panel thickness 4mm
| Contact Rating | 10A max. @ 250Vac |
| Contact Resistance | <25mΩ |
| Isolation Voltage | >4KVac |
| Mechanical Life | >107 operations |
| Temperature Range | -40 → +80°C |
Supplied with
Locknut and sealing washer
22-30 mm diameter cut out Push Button Switches
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Switch Operation | Momentary | |
| Contact Configuration | SP-NO/NC | |
| Mounting Type | Panel Mount | |
| Panel Cut Out Diameter | 22.5mm | |
| Contact Current Rating | 10 A @ 250 V ac | |
| Illuminated | No | |
| Actuator Colour | Blue | |
| Terminal Type | Solder | |
| Actuator Type | Button | |
| Operating Temperature Range | -40 → +80°C | |
| Contact Material | Fine Silver | |
| IP Rating | IP67 | |
| Maximum Operating Temperature | +80°C | |
| Actuator Shape | Round | |
| Minimum Operating Temperature | -40°C |
