• Push Button Switch, IP65, 20.2mm, SPDT, Panel Mount, (On)-Off, (Blank)

  • Push Button Switch, IP65, 20.2mm, SPDT, Panel Mount, (On)-Off, (Blank)

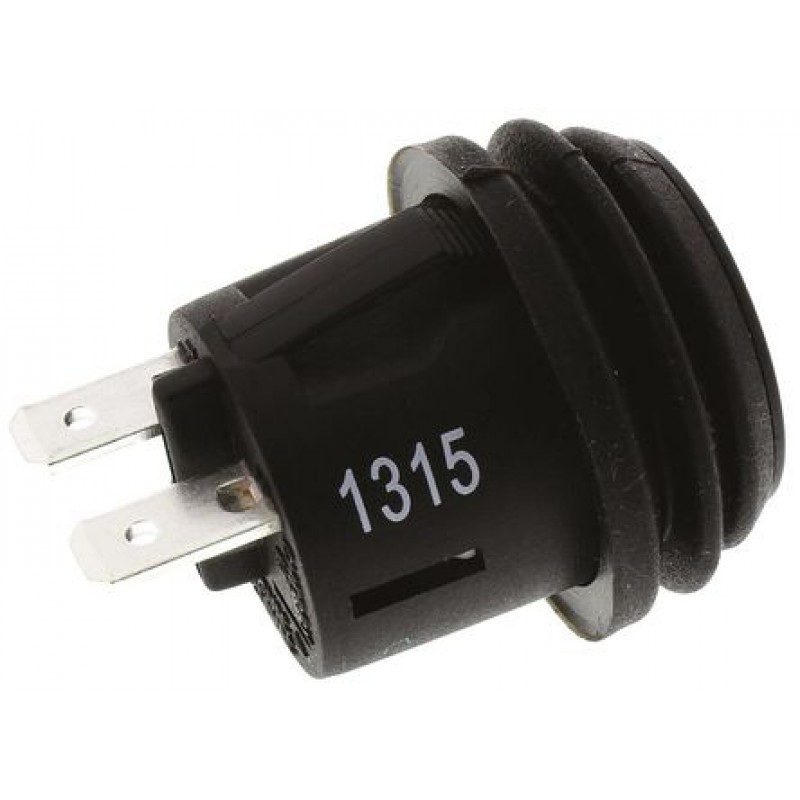

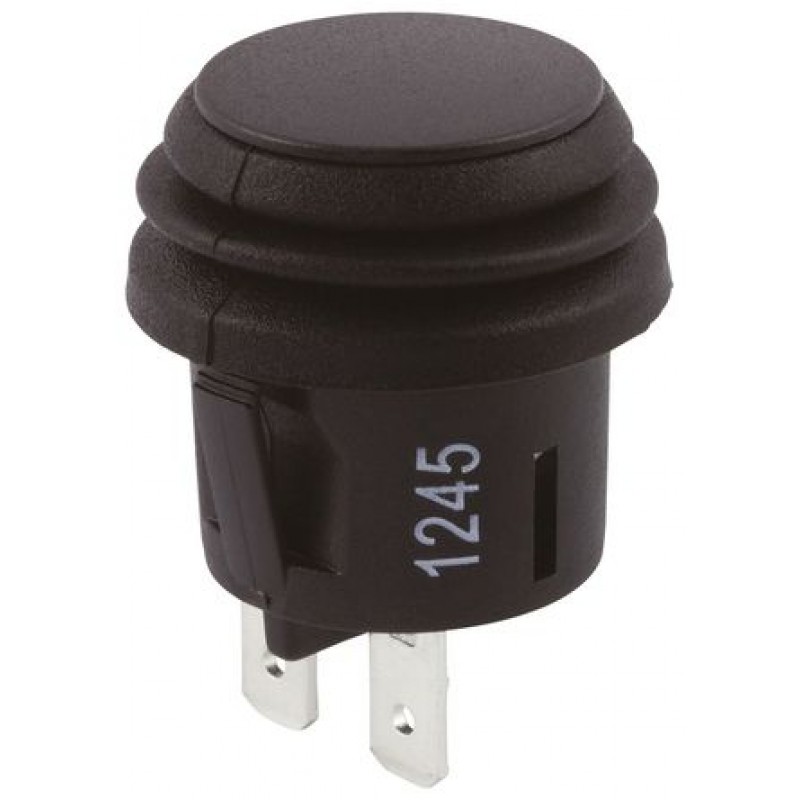

Push Button Switch, IP65, 20.2mm, SPDT, Panel Mount, (On)-Off, (Blank)
   0 reviews  |  Write a review
Product Code: B2DNA1BBB
Availability: In Stock
$9.08
Ex Tax: $9.08
Product Details

KF Series Waterproof Pushbutton Switches

These sealed waterproof pushbutton switches are available with a choice of pole, throw and switch options, making them suitable for a large range of applications- from vehicles and outdoor machinery to medical devices. Certified to IP65 requirements for water and dust resistance.

Features and Benefits:
• Available in single- or double-pole
• Lighted and non-lighted versions
• Maintained-action and momentary options
• Snap-in mounting
• Mechanical life: 100,000 cycles
• DC electrical life: 10,000 cycles

The KF Series includes:

• Stock number 706-4058 is a black pushbutton switch (On-Off)
• Stock number 706-4060 is a green illuminated pushbutton switch (Maintained)
• Stock number 706-4064 is a black pushbutton switch ((On)-Off)
• Stock number 706-4067 is a red illuminated pushbutton switch (Maintained)
• Stock number 706-4070 is a red illuminated pushbutton switch (Maintained)
• Stock number 706-4073 is a black pushbutton switch (Maintained)
• Stock number 706-4076 is a green illuminated pushbutton switch (Maintained)





22-30 mm diameter cut out Push Button Switches




Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Switch Operation (On)-Off
Contact Configuration SPDT
Mounting Type Panel Mount
Panel Cut Out Size 20.2mm
Contact Current Rating 20 A @ 14 V dc
Actuator Colour Black
Operating Temperature Range -25 → +85°C
Case Colour Black
Terminal Type Tab
Legend (Blank)
Maximum Operating Temperature +85°C
Contact Material Silver Alloy
Actuator Shape Round
Minimum Operating Temperature -25°C
IP Rating IP65
Actuator Type Button
