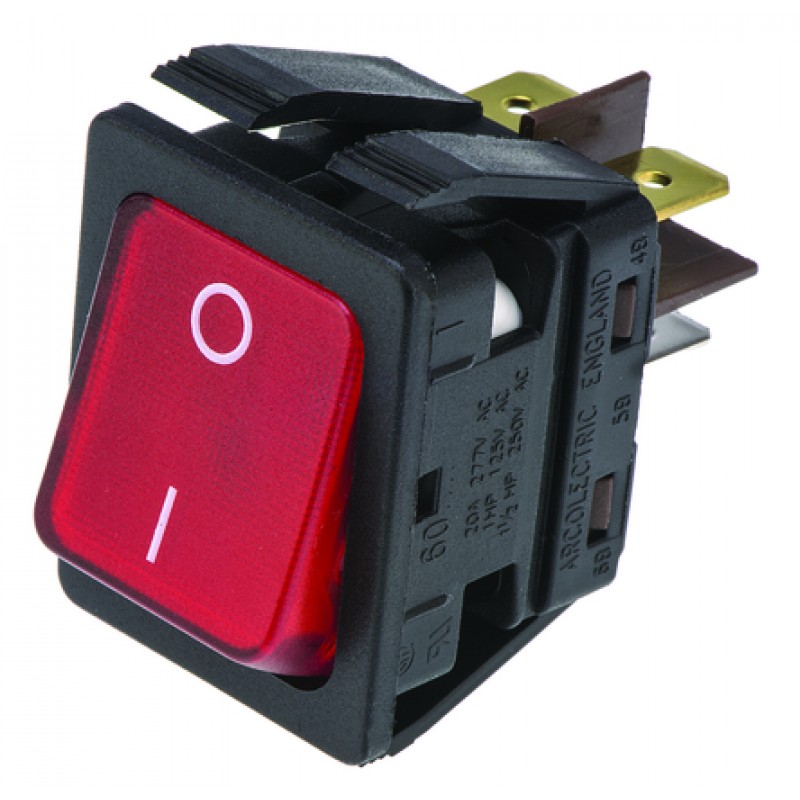

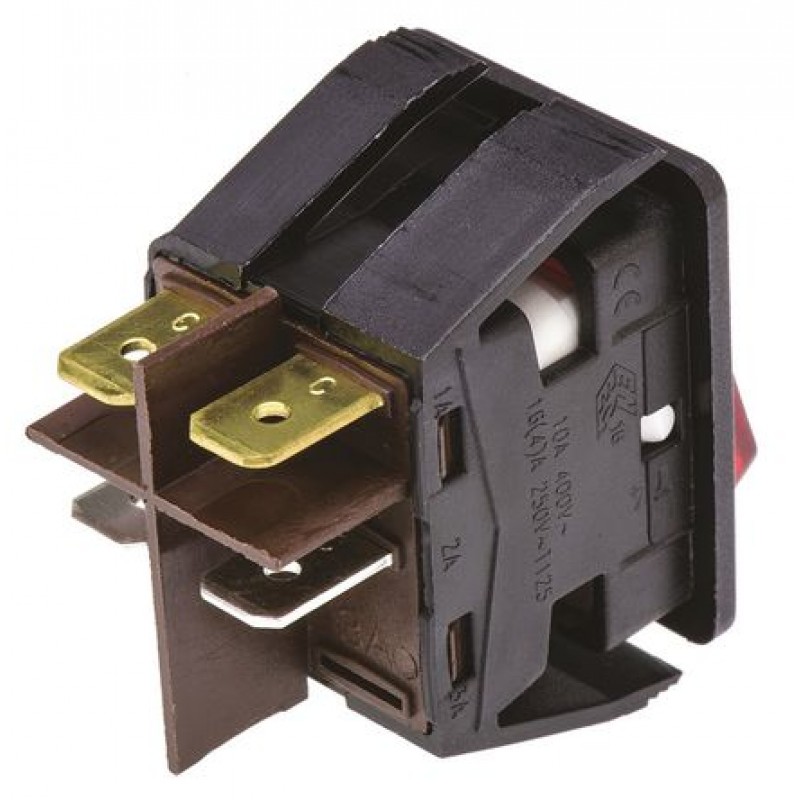

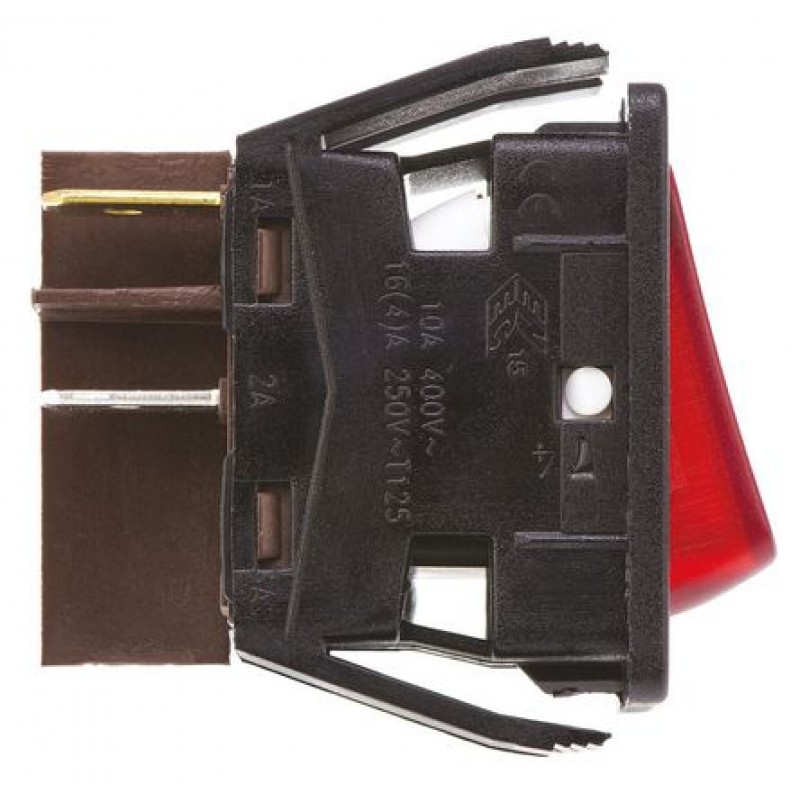

IP44 Illuminated Red DPST Rocker Switch, On-Off, 16 A@ 250 V ac 30mm 22.1mm
   0 reviews  |  Write a review
Product Code: C6053ALNAE
Availability: In Stock
$7.35
Ex Tax: $7.35
Product Details

Splashproof, 6000 Series Rocker Switches

Double-pole, high-inrush rocker switches with splashproof construction to IP44 which protects current carrying switch parts and ducts any droplets entering the switch out through ports in the switch body
Neon illumination versions
3mm contact cap
150A inrush current
0/I marking
Contact Material: Silver Alloy
Contact Configuration: DPST



Sealed & Splash Proof




Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Contact Configuration DPST
Switch Operation On-Off
Panel Cut Out Width 22.1mm
Panel Cut Out Height 30mm
Contact Current Rating 16 A@ 250 V ac
Illuminated Yes
Actuator Colour Red
Mounting Type Panel
IP Rating IP44
Terminal Type Quick Connect
Panel Cut Out Size 30 x 22.1mm
