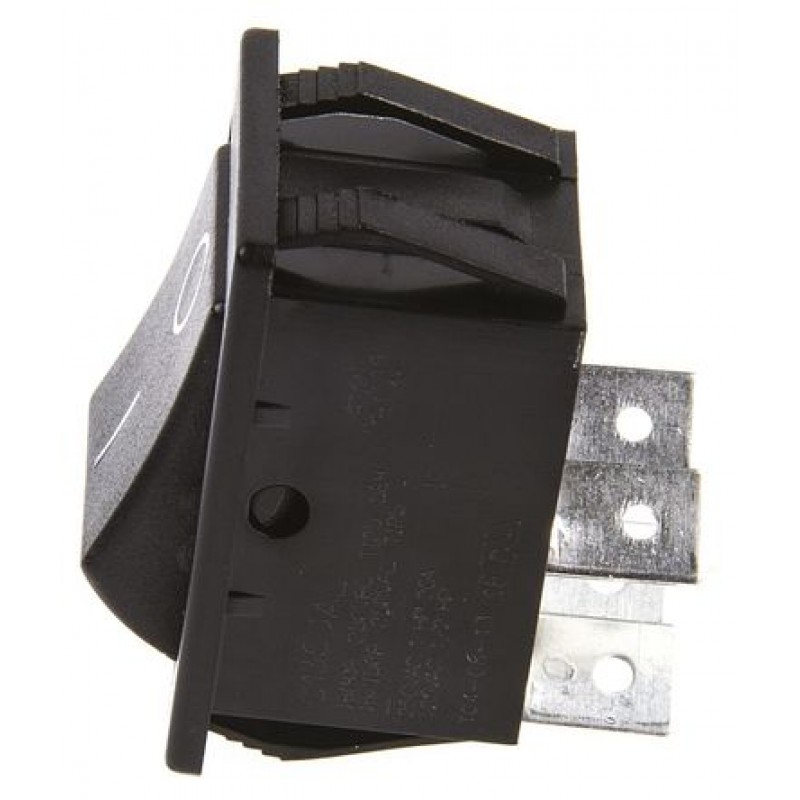

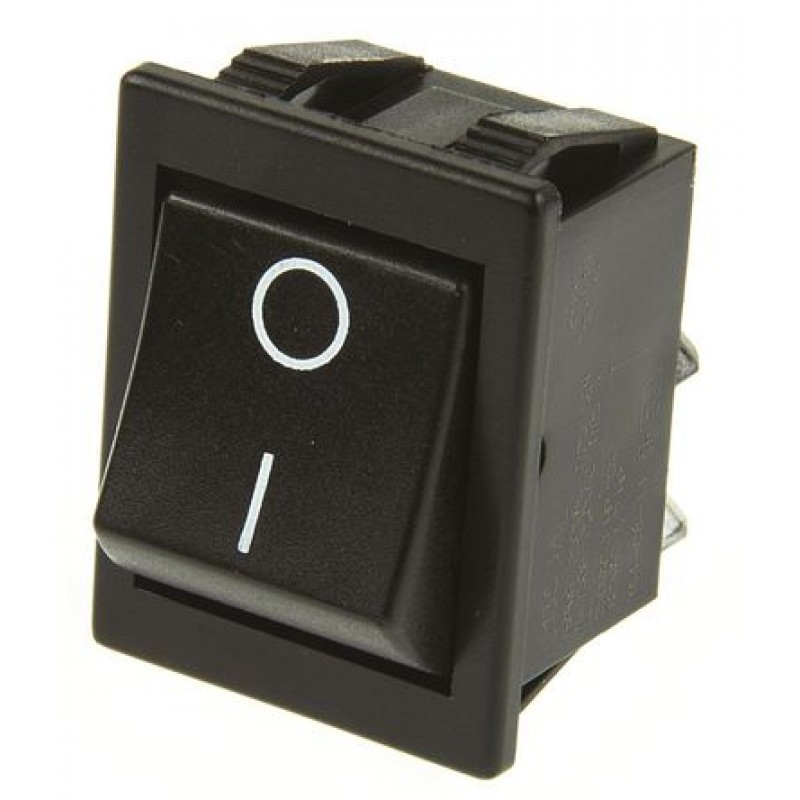

DPST Rocker Switch, On-Off, 16 A@ 250 V ac 30mm 22mm
Product Code: C1350ALAAF
Availability: In Stock
Availability: In Stock
$7.13
Ex Tax: $7.13
Ex Tax: $7.13
Product Details
1300 Series High Inrush
Snap-in panel mounting rocker switches
Silver contacts with positive break switching action
High inrush current capability - 150A
Recommended for use in Class II equipment

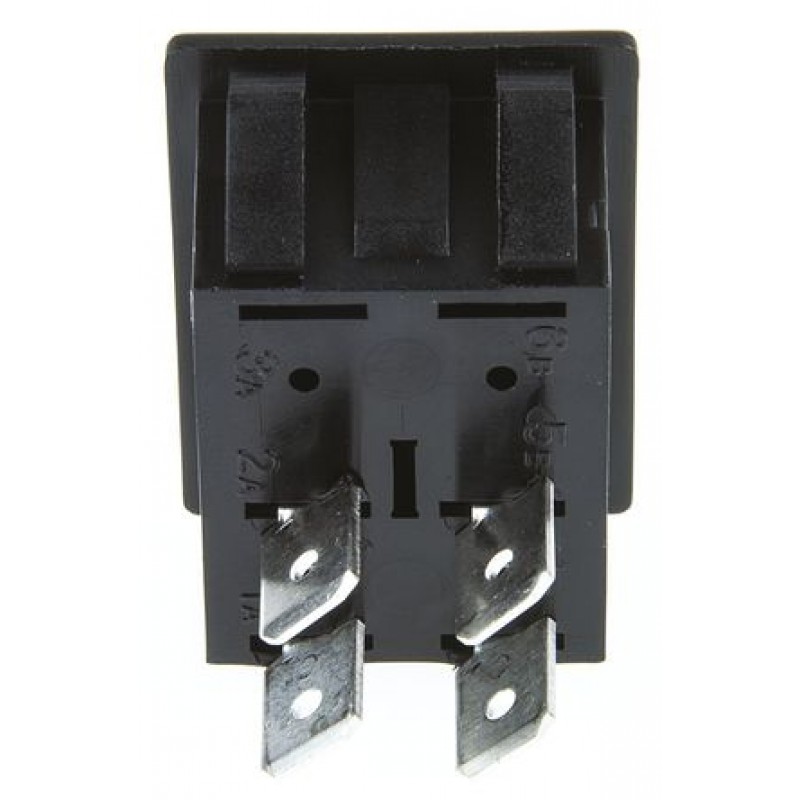

Connection via .250in faston terminals
50000 operation electrical life
Nylon 6·6 (UL 94 V-2) actuator marked with 0-I legend to EN602
| Dimensions | ||||||
| Height (mm) | Width (mm) | Depth (mm) | Depth Behind Panel (mm) | Panel Cut -out (mm) | Max. Panel Thickness (mm) | Stock no. |
| 30.2 | 14 | 32.9 | 25.3 | 30 x 11 | 0.75 - 2.5 | 278-9733 |
| 30.2 | 25 | 32.9 | 25.3 | 30 x 22 | 0.75 - 2.5 | 278-9828 |
Approvals
ENEC, UL recognised component, CSA certified
30 x 22mm & 30 x 11mm panel cut out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 22mm | |
| Panel Cut Out Height | 30mm | |
| Contact Current Rating | 16 A@ 250 V ac | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Panel Cut Out Size | 30 x 22mm |
