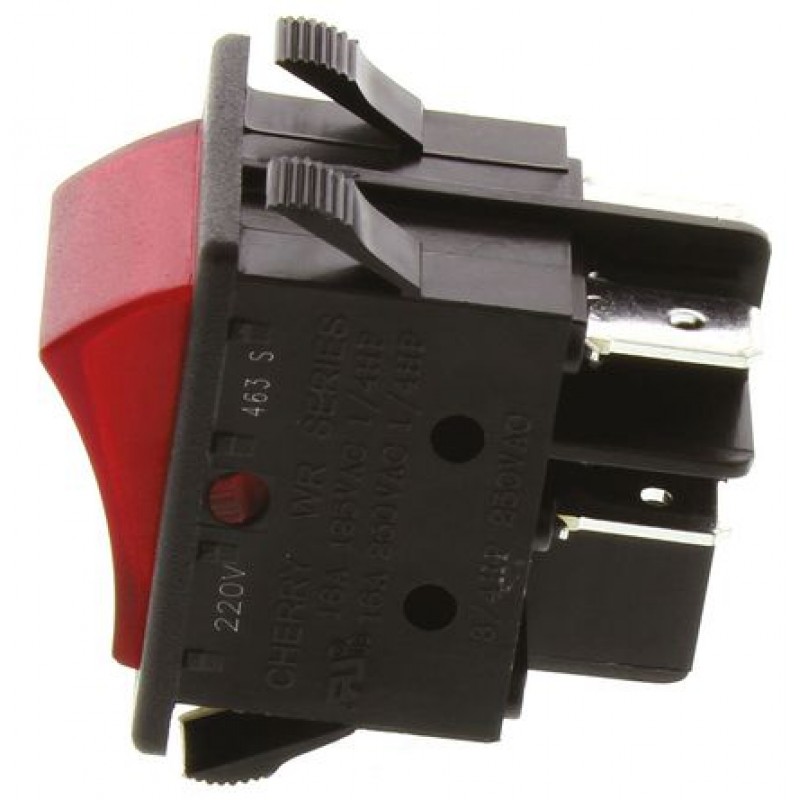

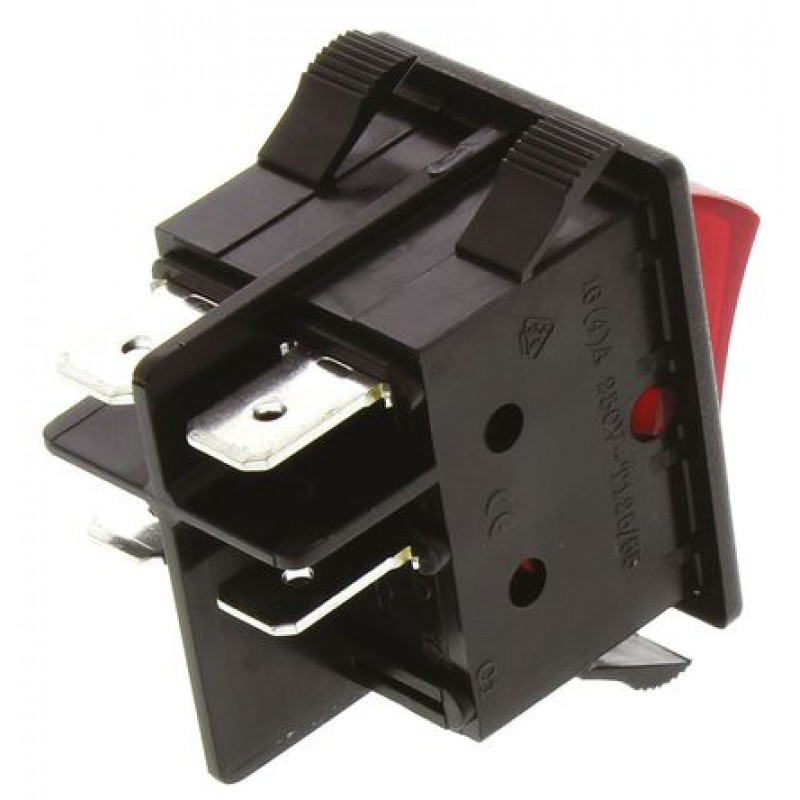

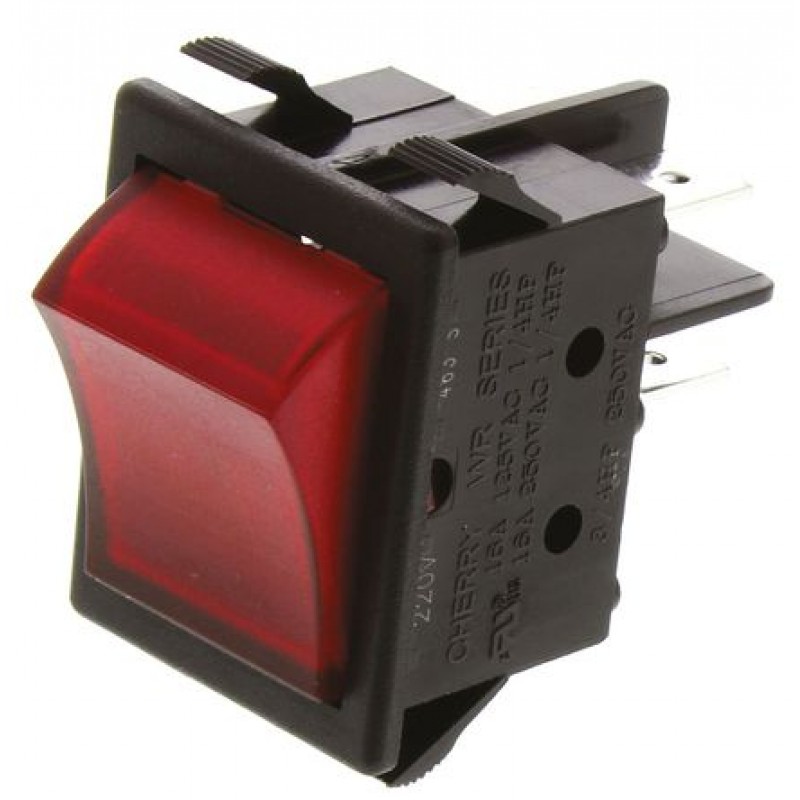

Illuminated Red DPST Rocker Switch, On-Off, 16 A @ 250 V ac +65°C -20°C 30.2mm 22mm
Product Code: WRG32F2BBREN
Availability: In Stock
Availability: In Stock
$8.45
Ex Tax: $8.45
Ex Tax: $8.45
Product Details
Double Pole Illuminated
Double pole illuminated rocker switch
Rugged construction for high current applications
Durable silver alloy contacts for up to 16A switching
Connection via .250in faston terminals
Polycarbonate actuator
| Dimensions | |||||
| Height (mm) | Width (mm) | Depth (mm) | Depth Behind Panel (mm) | Panel Cut-out (mm) | Max. Panel Thickness (mm) |
| 32 | 25 | 32.65 | 27 | 30 x 22 | 2 - 3 |
Approvals
VDE; UL; CSA
30 x 22mm & 30 x 11mm panel cut out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 22mm | |
| Panel Cut Out Height | 30.2mm | |
| Contact Current Rating | 16 A @ 250 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Red | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Contact Material | Silver Alloy | |
| Panel Cut Out Size | 30.2 x 22mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +65°C | |
| Contact Resistance | 20mΩ | |
| Mechanical Life | 50000Operations | |
| Operating Temperature Range | -20 → +65°C |
