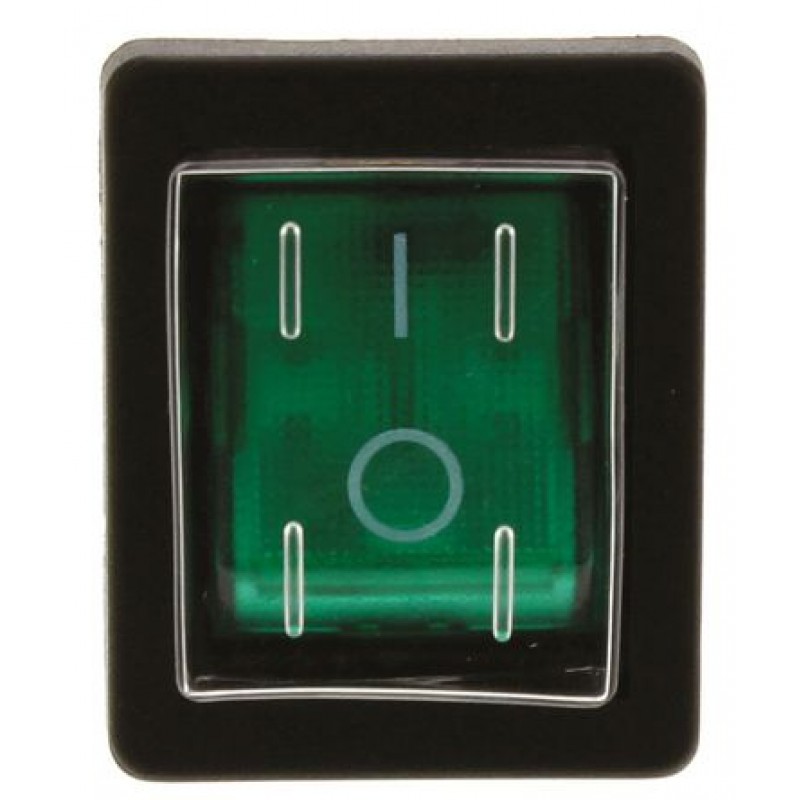

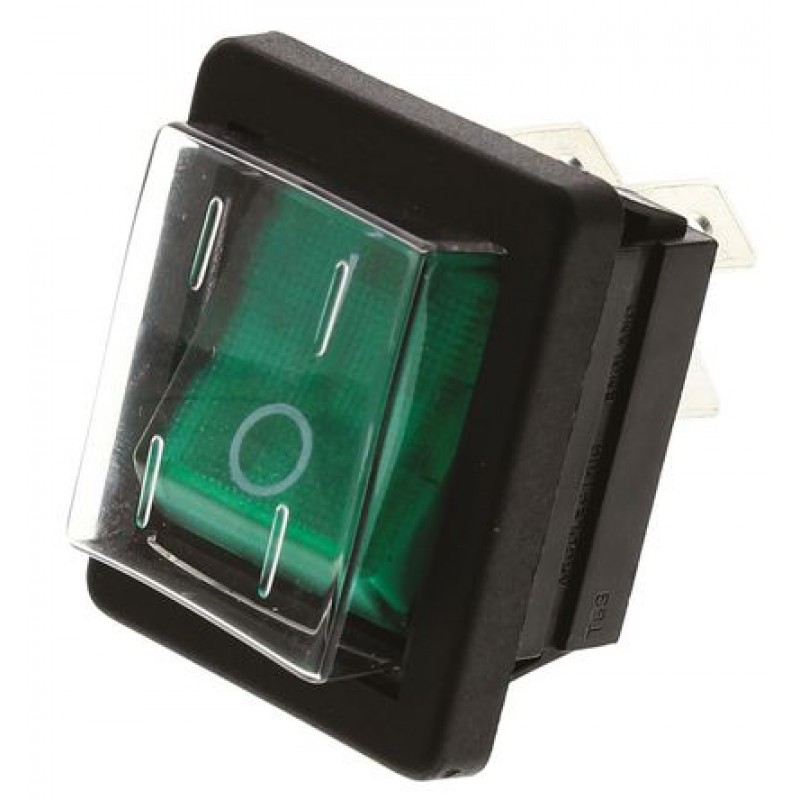

Illuminated Green DPST Rocker Switch, On-Off, 16 A@ 250 V ac 30mm 22.1mm
Product Code: C1353ALGNC
Availability: In Stock
Availability: In Stock
$10.46
Ex Tax: $10.46
Ex Tax: $10.46
Product Details
Splashproof Rocker Switches
A range of splashproof rocker switches designed to protect against limited exposure to water. These high inrush switches are mains rated with 150A surge capability and are ideally suited to for use in laboratories or portable equipment due to their IP40 splashproof cover. They are available as red or green illuminated options and have a double pole single throw contact configuration.
Red & green illuminated options

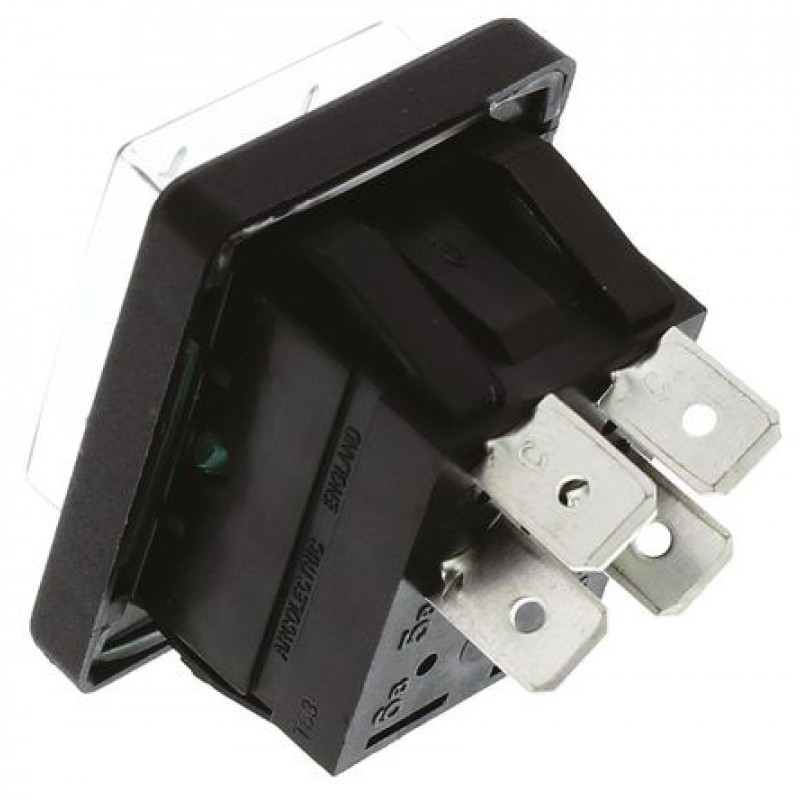

Spade terminals 6.3 mm x 0.8 mm
Panel cutout 30 x 22.1mm
Contact Material: Silver Alloy
Contact Configuration: DPST
Sealed & Splash Proof
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 22.1mm | |
| Panel Cut Out Height | 30mm | |
| Contact Current Rating | 16 A@ 250 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Green | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Panel Cut Out Size | 30 x 22.1mm |
