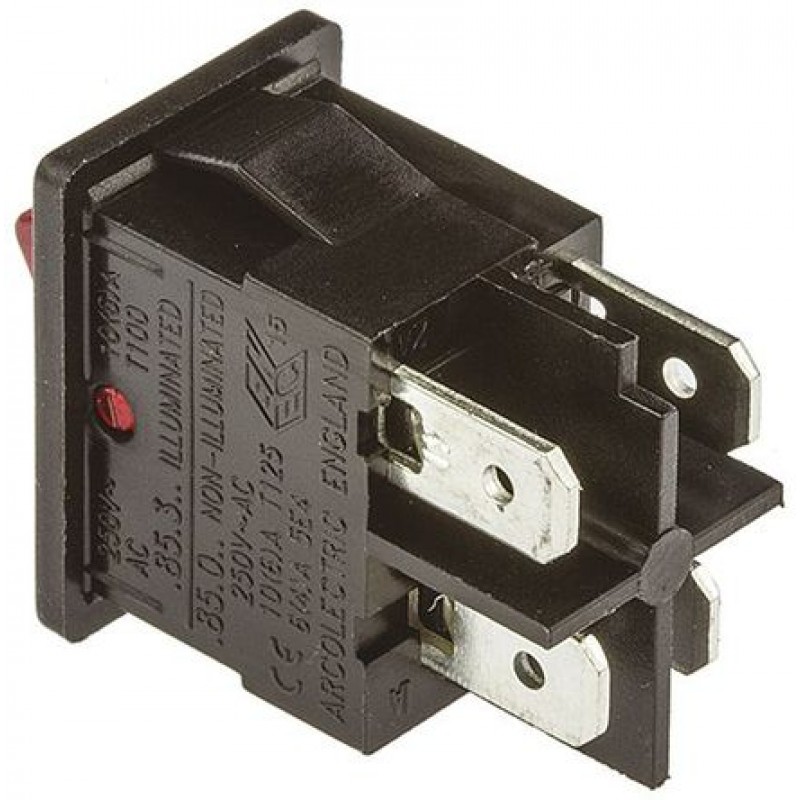

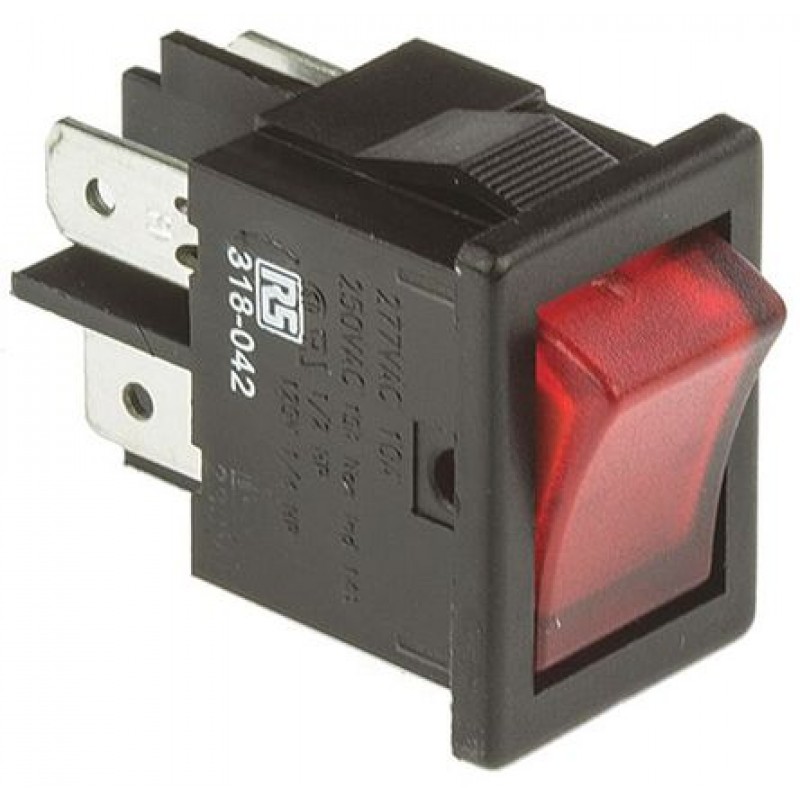

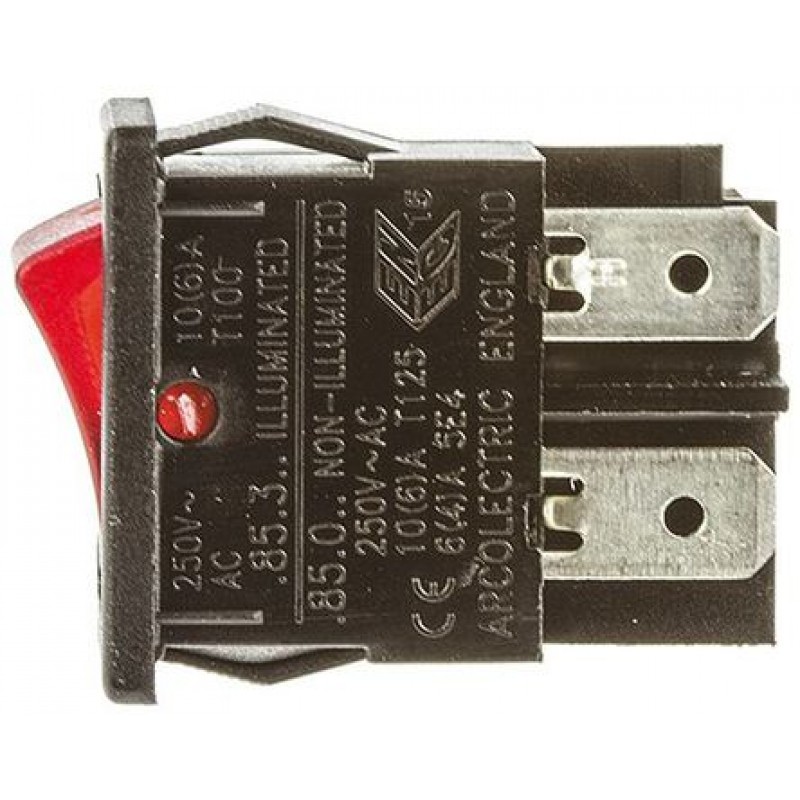

Illuminated DPST Rocker Switch, On-Off, 15 A@ 250 V ac 19.4mm 12.9mm
   0 reviews  |  Write a review
Product Code: H8553VBNAA
Availability: In Stock
$7.99
Ex Tax: $7.99
Product Details

Min. Illuminated Rocker Switches

Available with either red or green ’power on indication’
Silver contacts
Inrush rating: 85A to EN61085-01
Connection by 4.8´0.8 blade terminals
Dimensions: H21 x W15 x D24, panel thickness 3mm

Note

4.8 x 0.5 crimp receptacles are not suitable

Approvals

ENEC; UL; CSA



19.0 to 19.4mm Height Panel Cut Out




Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Contact Configuration DPST
Switch Operation On-Off
Panel Cut Out Width 12.9mm
Panel Cut Out Height 19.4mm
Contact Current Rating 15 A@ 250 V ac
Illuminated Yes
Mounting Type Panel
Terminal Type Quick Connect
Panel Cut Out Size 19.4 x 12.9mm
