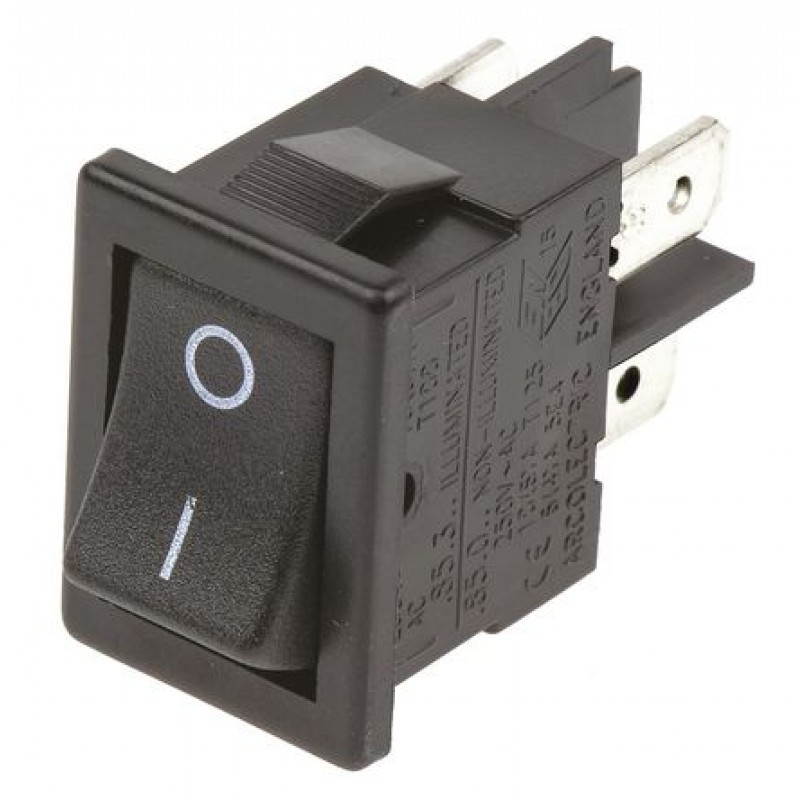

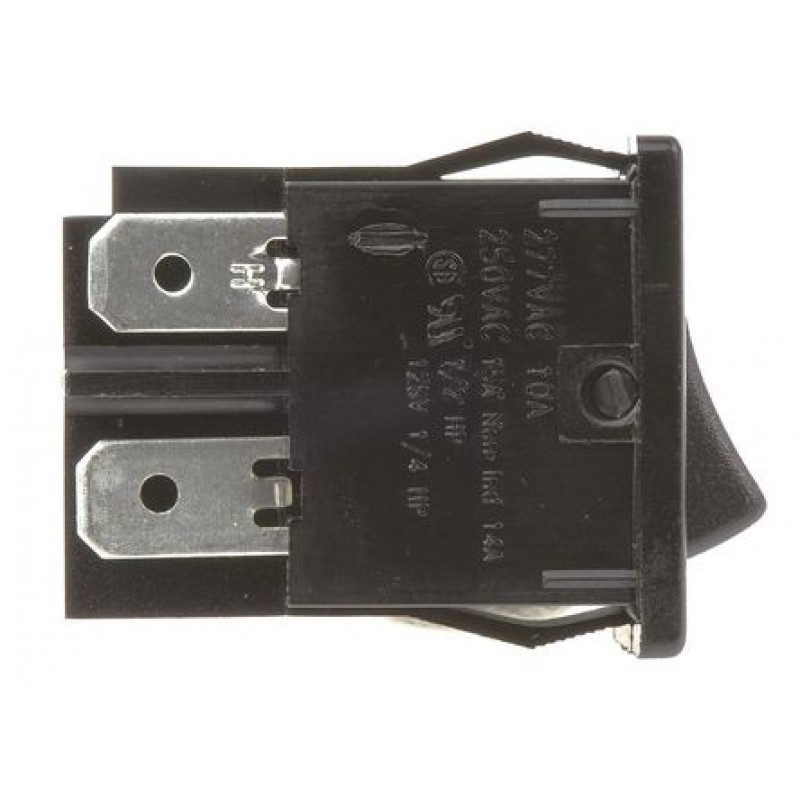

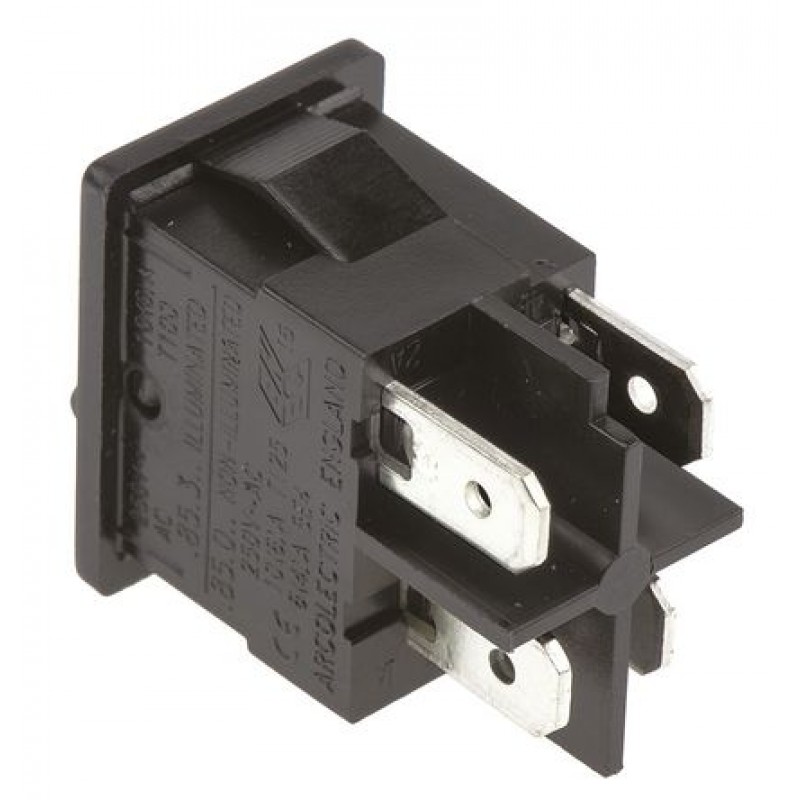

DPST Rocker Switch, On-Off, 15 A@ 250 V ac 19.4mm 12.9mm
Product Code: H8550VBACA
Availability: In Stock
Availability: In Stock
$7.46
Ex Tax: $7.46
Ex Tax: $7.46
Product Details
Min. Illuminated Rocker Switches
Available with either red or green ’power on indication’
Silver contacts
Inrush rating: 85A to EN61085-01
Connection by 4.8´0.8 blade terminals
Dimensions: H21 x W15 x D24, panel thickness 3mm
Note
4.8 x 0.5 crimp receptacles are not suitable
Approvals
ENEC; UL; CSA
19.0 to 19.4mm Height Panel Cut Out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 12.9mm | |
| Panel Cut Out Height | 19.4mm | |
| Contact Current Rating | 15 A@ 250 V ac | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Panel Cut Out Size | 19.4 x 12.9mm |
