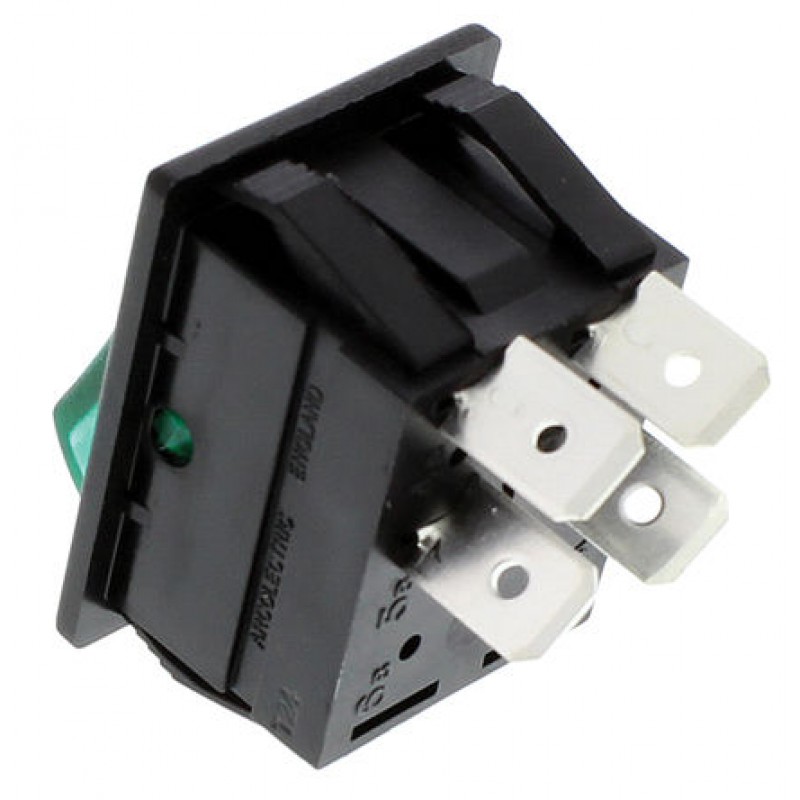

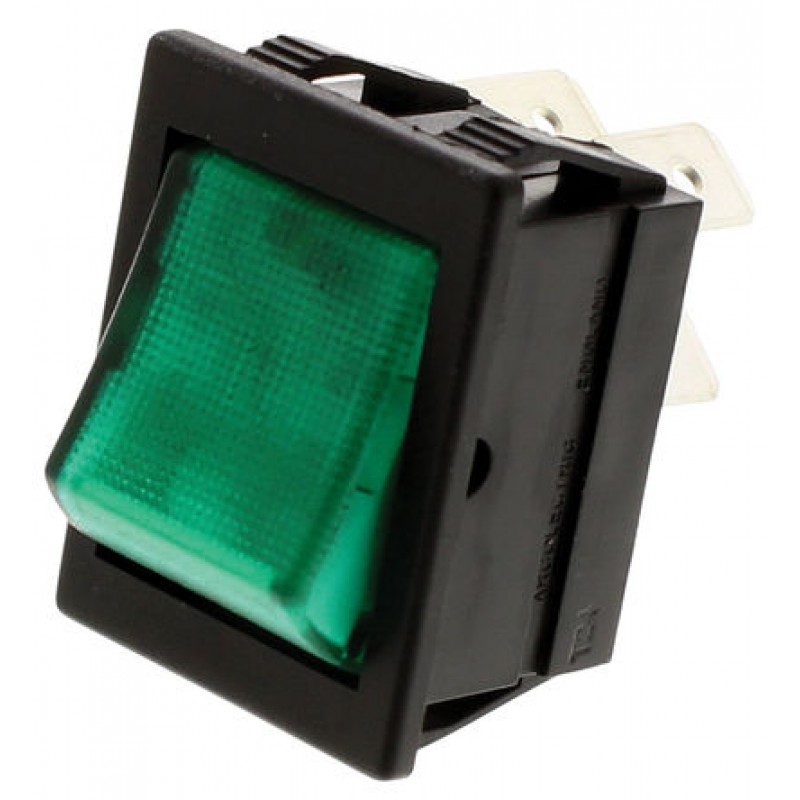

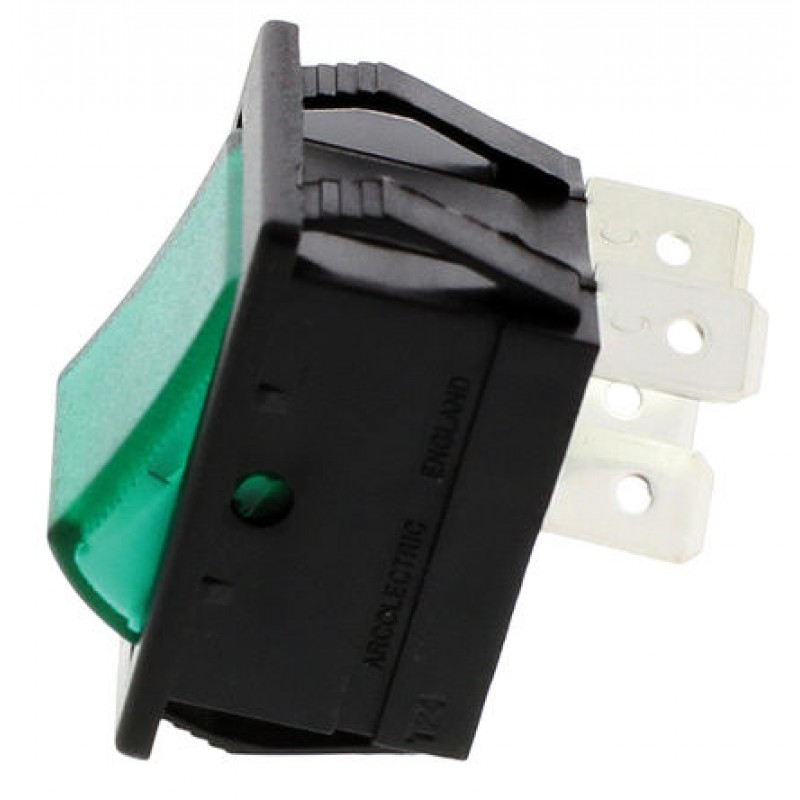

Illuminated Green DPST Rocker Switch, On-Off, 16 A@ 250 V ac 30mm 22mm
Product Code: C1353ALNAF
Availability: In Stock
Availability: In Stock
$8.79
Ex Tax: $8.79
Ex Tax: $8.79
Product Details
Euro Cut Out
Designed for 30x22.1 and 30x11 cut-outs, these rocker switches cover all common functions and are available in standard and high-inrush current versions
Silver alloy contacts
Connection is by 0.250" (6.3mm) faston terminal
10000 operation electrical life
Black Nylon 6·6 (non-lighted) or tinted Polycarbonate (lighted) actuator
85°C maximum operating temperature
| Dimensions | ||||||
| Height (mm) | Width (mm) | Depth (mm) | Depth Behind Panel (mm) | Panel Cut-out (mm) | Max. Panel Thickness (mm) | Stock no. |
| 31.9 | 14 | 32.9 | 25.3 | 30 x 11 | 0.75 - 2.5 | 287-7284 |
| 31.9 | 14 | 32.9 | 25.3 | 30 x 11 | 0.75 - 2.5 | 287-7290 |
| 31.9 | 14 | 32.9 | 25.3 | 30 x 11 | 0.75 - 2.5 | 287-7313 |
| 31.9 | 14 | 32.9 | 25.3 | 30 x 11 | 0.75 - 2.5 | 533-2942 |
| 31.9 | 25 | 32.9 | 25.3 | 30 x 22 | 0.75 - 2.5 | 287-7357 |
| 31.9 | 25 | 32.9 | 25.3 | 30 x 22 | 0.75 - 2.5 | 287-7363 |
| 31.9 | 25 | 32.9 | 25.3 | 30 x 22 | 0.75 - 2.5 | 533-2958 |
| 31.9 | 25 | 32.9 | 25.3 | 30 x 22 | 0.75 - 2.5 | 533-2964 |
| 31.9 | 14 | 36.2 | 28.6 | 30 x 11 | 0.75 - 2.5 | 287-7262 |
| 31.9 | 14 | 36.2 | 28.6 | 30 x 11 | 0.75 - 2.5 | 287-7278 |
| 31.9 | 14 | 32.9 | 25.3 | 30 x 11 | 0.75 - 2.5 | 287-7256 |
| 31.9 | 25 | 32.9 | 25.3 | 30 x 22 | 0.75 - 3.3 | 287-7329 |
| 31.9 | 25 | 32.9 | 25.3 | 30 x 22 | 0.75 - 3.3 | 287-7335 |
| 31.9 | 25 | 32.9 | 25.3 | 30 x 22 | 0.75 - 3.3 | 287-7341 |
| Note: Not all types may be available | ||||||
Note
Supply voltage for illuminated swirches is 230Vac
Approvals
ENEC; UL; CSA
30 x 22mm & 30 x 11mm panel cut out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 22mm | |
| Panel Cut Out Height | 30mm | |
| Contact Current Rating | 16 A@ 250 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Green | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Panel Cut Out Size | 30 x 22mm |
