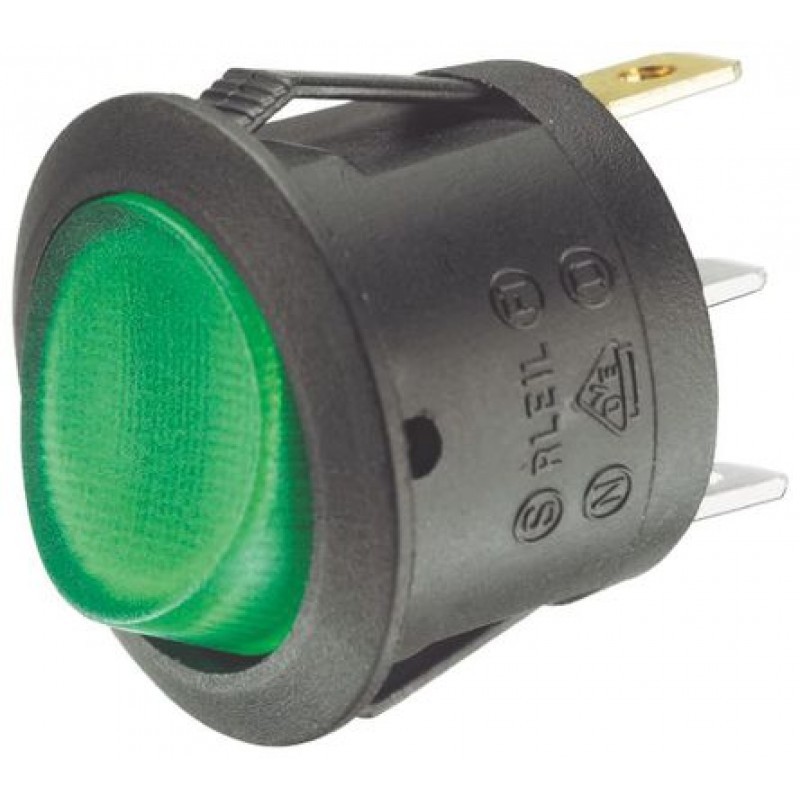

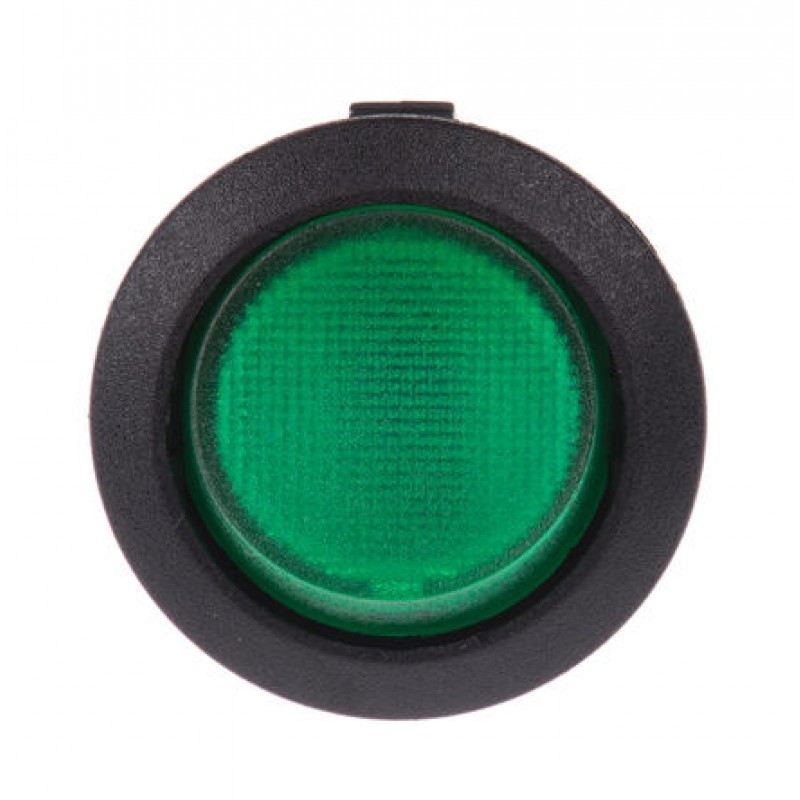

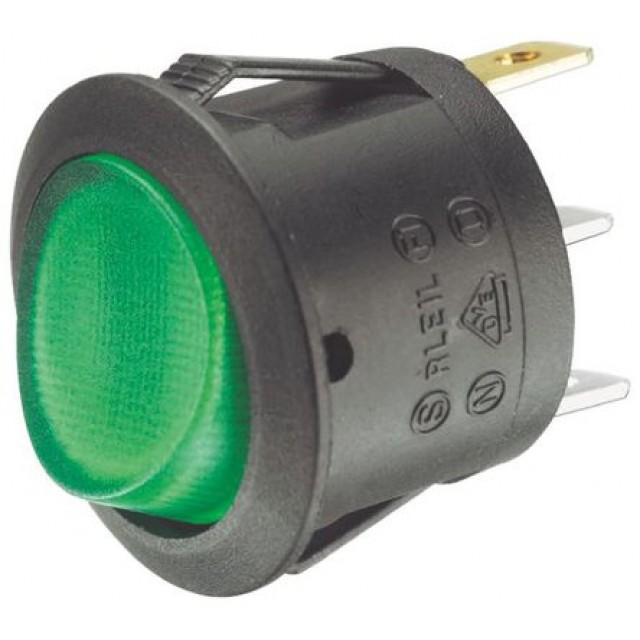

Illuminated Green SPST Rocker Switch, On-Off, 10 A@ 12 V dc +125°C -25°C 19.4mm
Product Code: Y73-312
Availability: In Stock
Availability: In Stock
$6.69
Ex Tax: $6.69
Ex Tax: $6.69
Product Details
Circular Rocker Illuminated Switches (dc & ac)
Single pole on-off round illuminated rocker switches
Snap-in mounting
Panel cut-out: 19.4mm
Electrical life: 10000 cycles
Insulation resistance 100MΩ min at 500Vdc
Circular Actuator
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Diameter | 19.4mm | |
| Contact Current Rating | 10 A@ 12 V dc | |
| Illuminated | Yes | |
| Actuator Colour | Green | |
| Mounting Type | Panel | |
| Case Material | Nylon | |
| Maximum Operating Temperature | +125°C | |
| Contact Resistance | 30mΩ | |
| DC Voltage Rating | 12V | |
| Panel Cut Out Size | 19.4 (Dia.)mm | |
| Contact Material | Silver Nickel Alloy | |
| Operating Temperature Range | -25 → +125°C | |
| Minimum Operating Temperature | -25°C |
