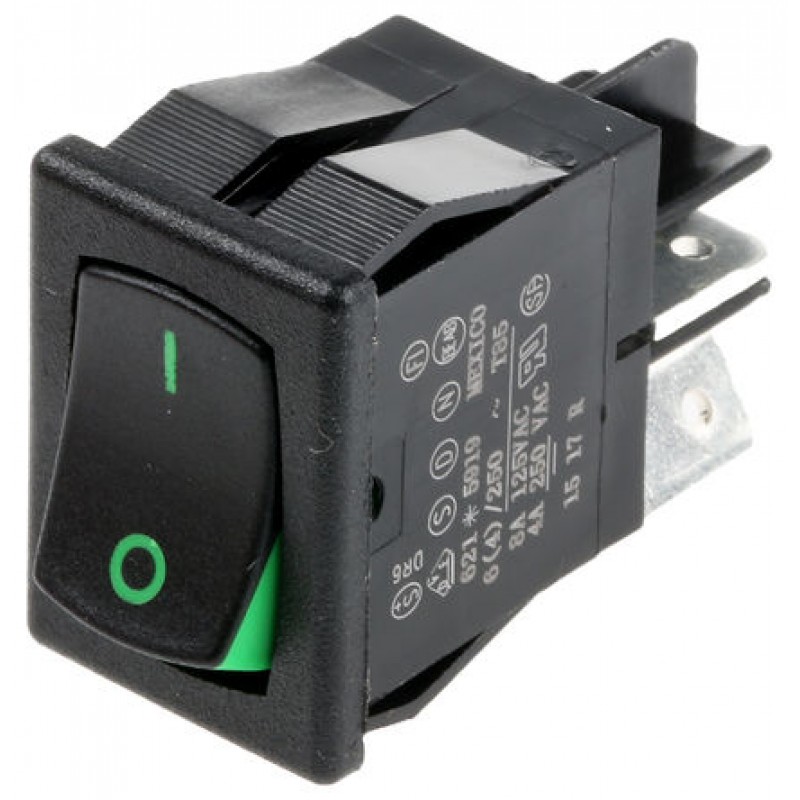

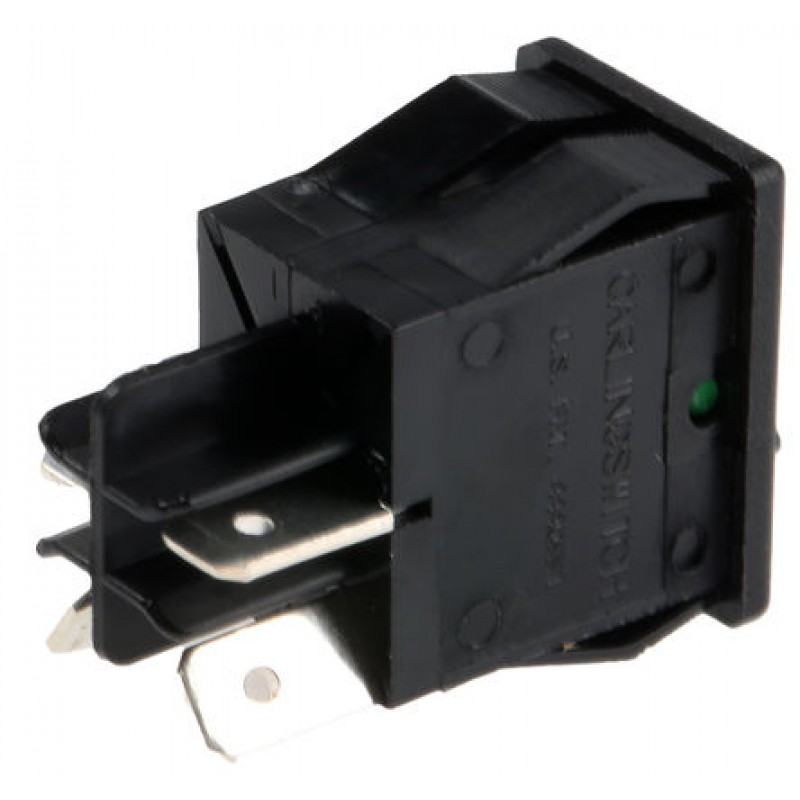

Green DPST Rocker Switch, On-Off, 8 A@ 125 V ac +85°C 0°C 19.4mm 12.9mm
Product Code: 1591909GXRS
Availability: In Stock
Availability: In Stock
$7.75
Ex Tax: $7.75
Ex Tax: $7.75
Product Details
Mini Visi Rocker® Switches
2 shot moulded actuators, coloured sections become visible in the ON position
Inrush rating: 80A peak
3mm contact separation in off position
Mechanical life: >5x104 operations
Max. temperature: +85°C
Connection by 4.8 x 0.8 fast on terminals
Direct soldering not recommended
Approvals
VDE; UL; CSA; TUV; SEMKO; NEMKO
19.0 to 19.4mm Height Panel Cut Out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 12.9mm | |
| Panel Cut Out Height | 19.4mm | |
| Contact Current Rating | 8 A@ 125 V ac | |
| Actuator Colour | Green | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +85°C | |
| Mechanical Life | 100000Operations | |
| Panel Cut Out Size | 19.4 x 12.9mm | |
| Operating Temperature Range | 0 → +85°C |
