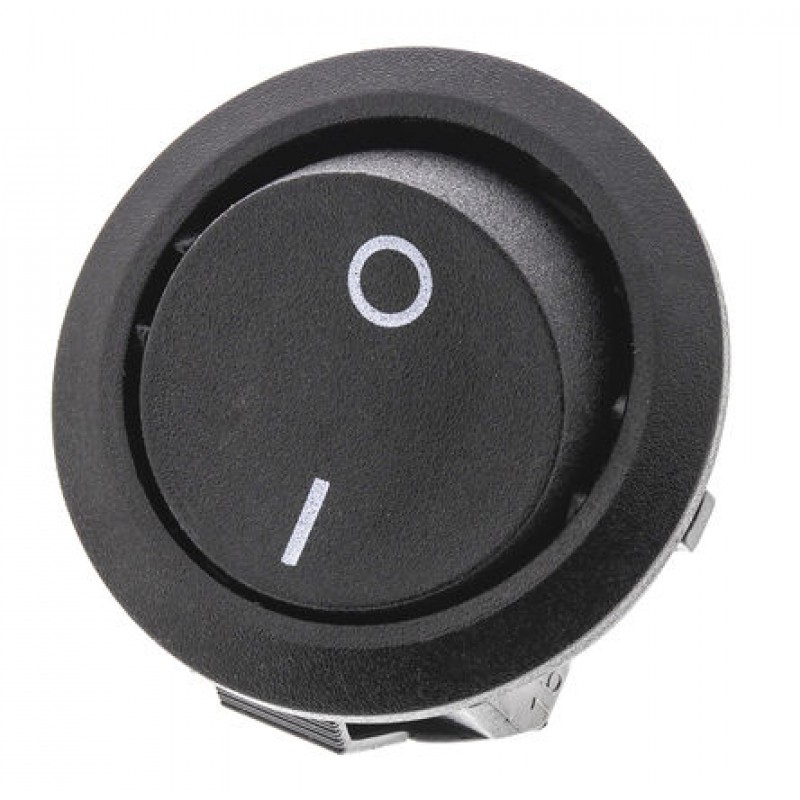

IP40 Black SPST Rocker Switch, On-Off, 12 A @ 250 V ac +55°C -20°C 20mm
   0 reviews  |  Write a review
Product Code: 881.1103
Availability: In Stock
$7.75
Ex Tax: $7.75

Product Details

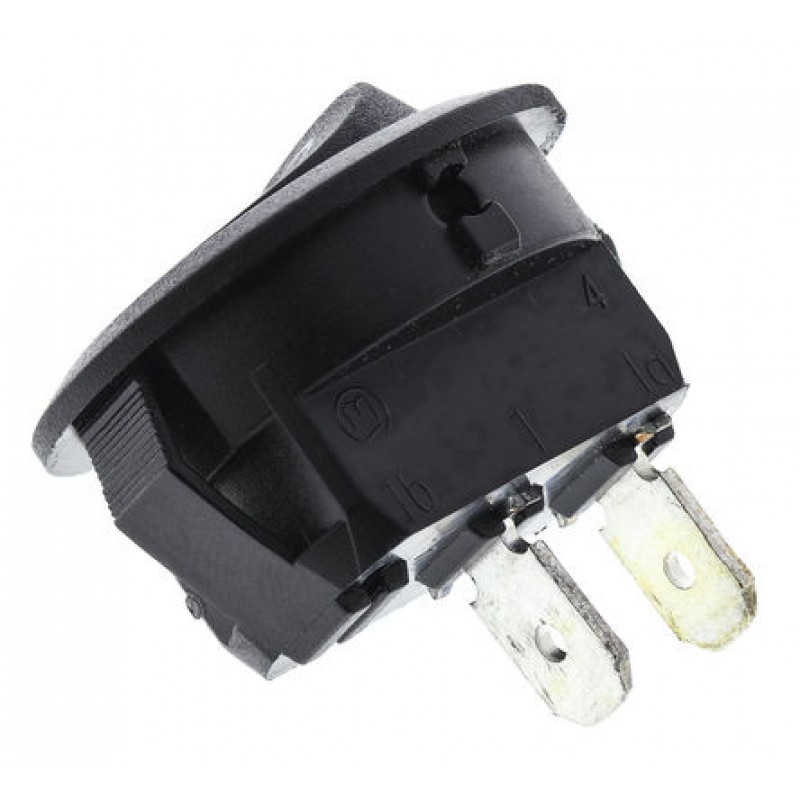

he non illuminated 1881 rocker switches are suitable for use in Class II appliances and feature an abrasion-proof on-off legend. The round, 20mm diameter cut out, rocker switches have silver contacts with a SPST (on-off) switching format, a contact resistance <100mΩ and an insulation resistance of >100MΩ. Electrical connection is made via the 4.8mm Faston/Quick Connect style tab terminals.

High inrush current (capacitive) up to 70A
23mm diameter
Contact distance ≥3mm
Operating force 3N


Note

Stock number 575-131 conforms to the household appliances standard IEC/EN 60335-1:2001/2002 chapter 30.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

Approvals

UL; CSA; ENEC



Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Contact Configuration SPST
Switch Operation On-Off
Panel Cut Out Diameter 20mm
Contact Current Rating 12 A @ 250 V ac
Actuator Colour Black
Mounting Type Panel
IP Rating IP40
Terminal Type Quick Connect
Legend Text On (symbol); Off (symbol)
Maximum Operating Temperature +55°C
Contact Resistance 100mΩ
Mechanical Life 100000Operations
Minimum Operating Temperature -20°C
Panel Cut Out Size 20 (Dia.)mm
Contact Material Silver
Operating Temperature Range -20 → +55°C
Legend Text Colour White
Case Material Polyamide
