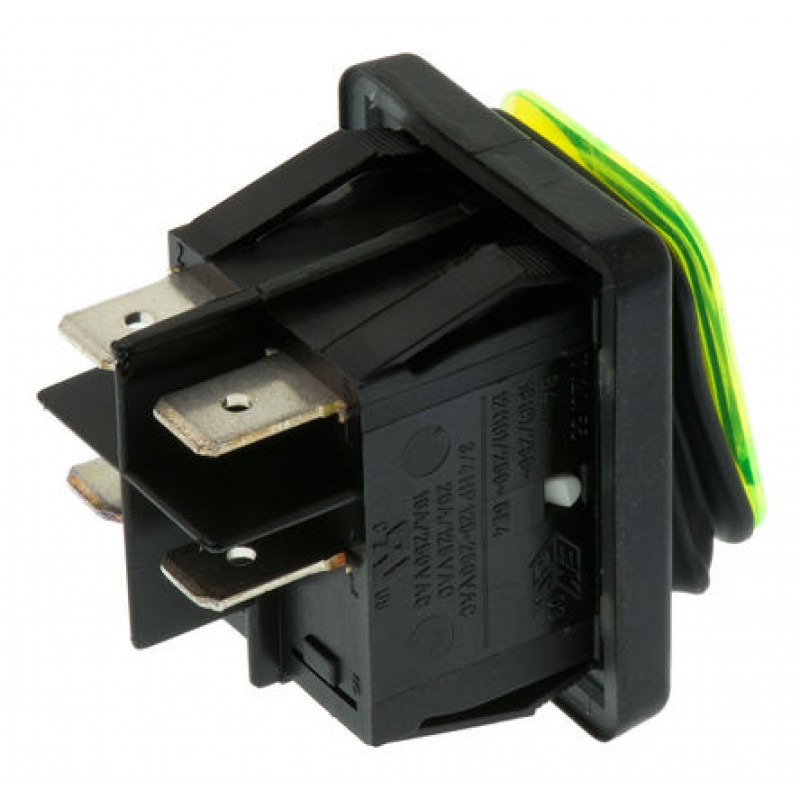

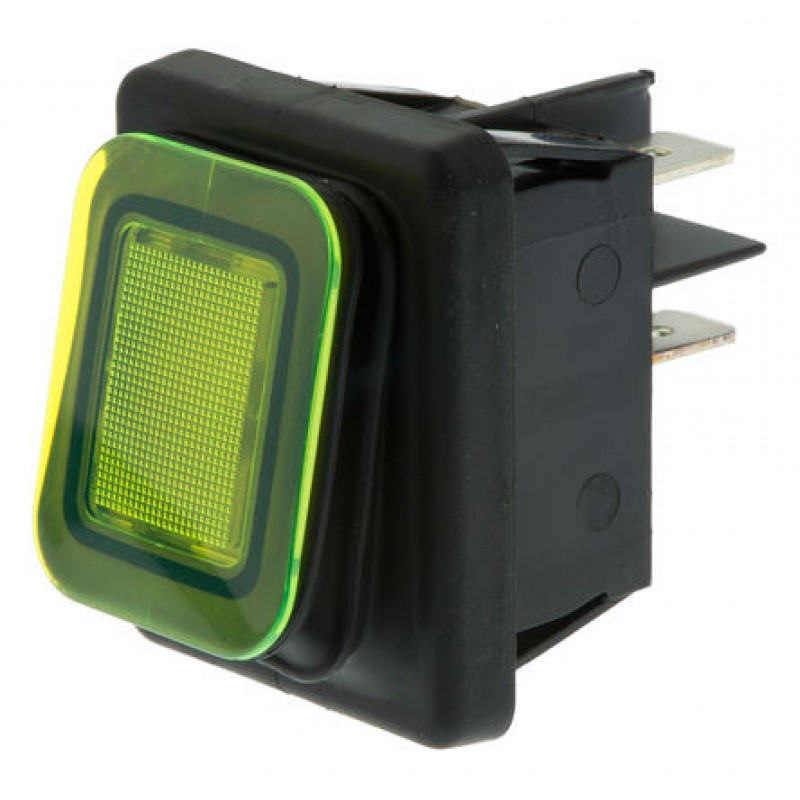

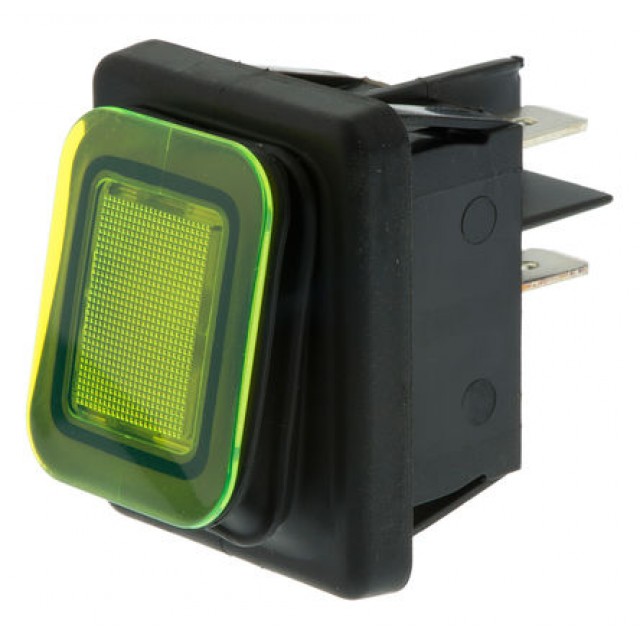

IP65 Illuminated Green DPST Rocker Switch, On-Off, 20 A@ 125 V ac +55°C 22mm 30.8mm
Product Code: SK48N1V0000
Availability: In Stock
Availability: In Stock
$8.08
Ex Tax: $8.08
Ex Tax: $8.08
Product Details
Luminescent Actuator
Highly visual, luminescent red, green and amber rocker switches
Neon illumination
IP65 rated with bellows actuator seal
Suitable for applications exposed to dust and splashes of water such as steam cleaners, vacuum cleaners, portable equipment, machine tools and laboratory equipment
6.3 x 0.8mm terminal blades
Panel Cut-out 30.6 x 22.0
Sealed & Splash Proof
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 30.8mm | |
| Panel Cut Out Height | 22mm | |
| Contact Current Rating | 20 A@ 125 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Green | |
| Mounting Type | Panel | |
| IP Rating | IP65 | |
| Terminal Type | Quick Connect | |
| Operating Temperature Range | Maximum of +55°C | |
| Maximum Operating Temperature | +55°C | |
| Mechanical Life | >300000Operations | |
| Panel Cut Out Size | 22 x 30.8mm |
