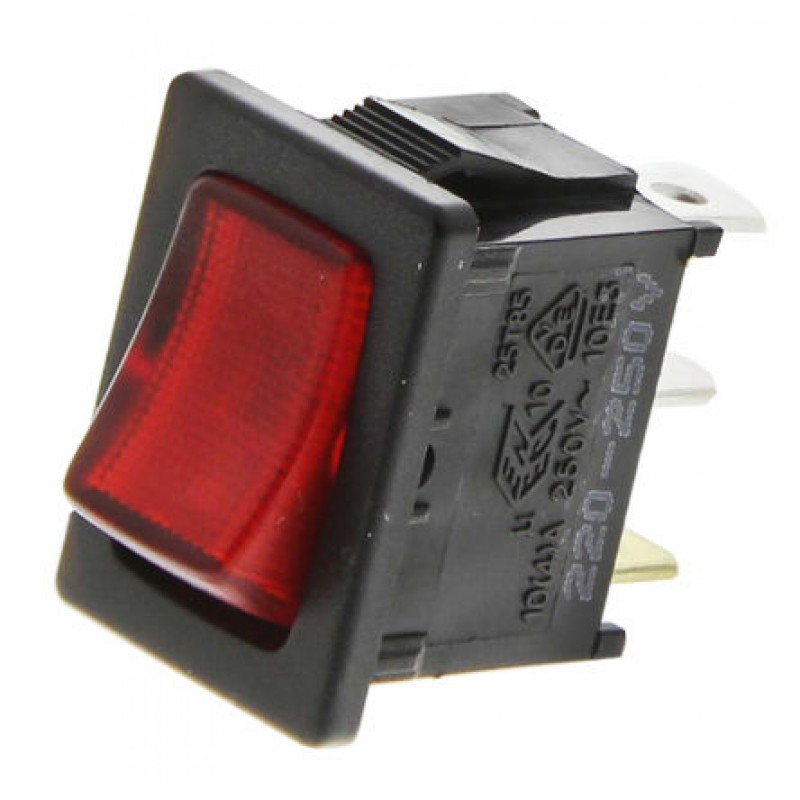

Illuminated Red SPST Rocker Switch, On-Off, 10 A@ 125 V ac +85°C -20°C 19.2mm 13mm
Product Code: 19-78
Availability: In Stock
Availability: In Stock
$7.66
Ex Tax: $7.66
Ex Tax: $7.66
Product Details
Miniature SPST illuminated rocker switches, available in red or green
Panel cut out 19.2 x 13mm

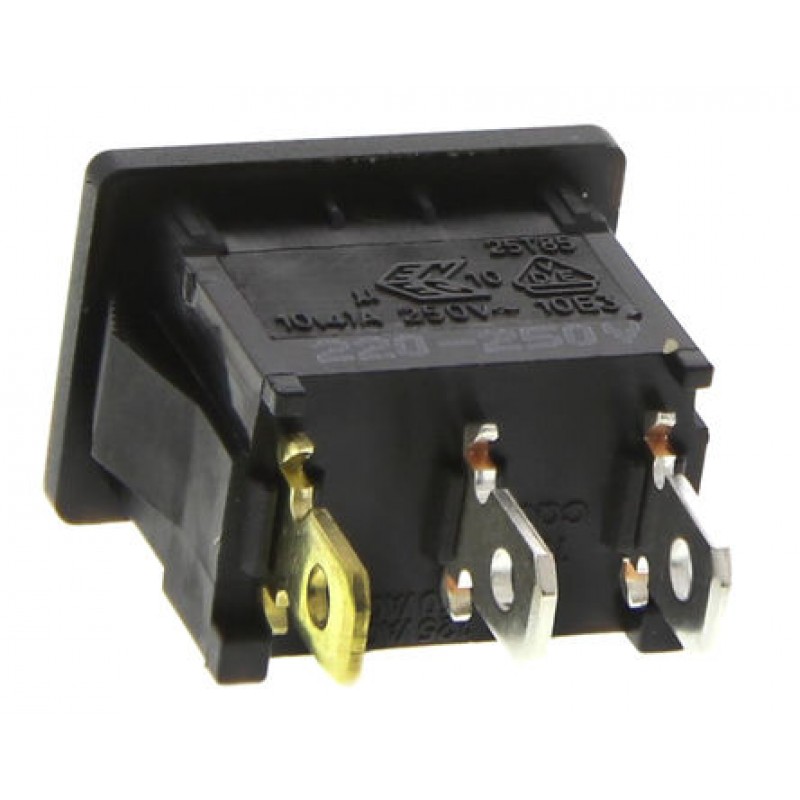

Fitted with 4.8mm blade style terminals
Snap-in mounting, easy to install into panel
Nylon Housing to UL 94V-2 with silver plated brass terminals
Approvals
CSA, VDE, UR
19.0 to 19.4mm Height Panel Cut Out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 13mm | |
| Panel Cut Out Height | 19.2mm | |
| Contact Current Rating | 10 A@ 125 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Red | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Case Material | Nylon | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -20°C | |
| Contact Resistance | 50mΩ | |
| Panel Cut Out Size | 19.2 x 13mm | |
| Contact Material | Silver | |
| Operating Temperature Range | -20 → +85°C |
