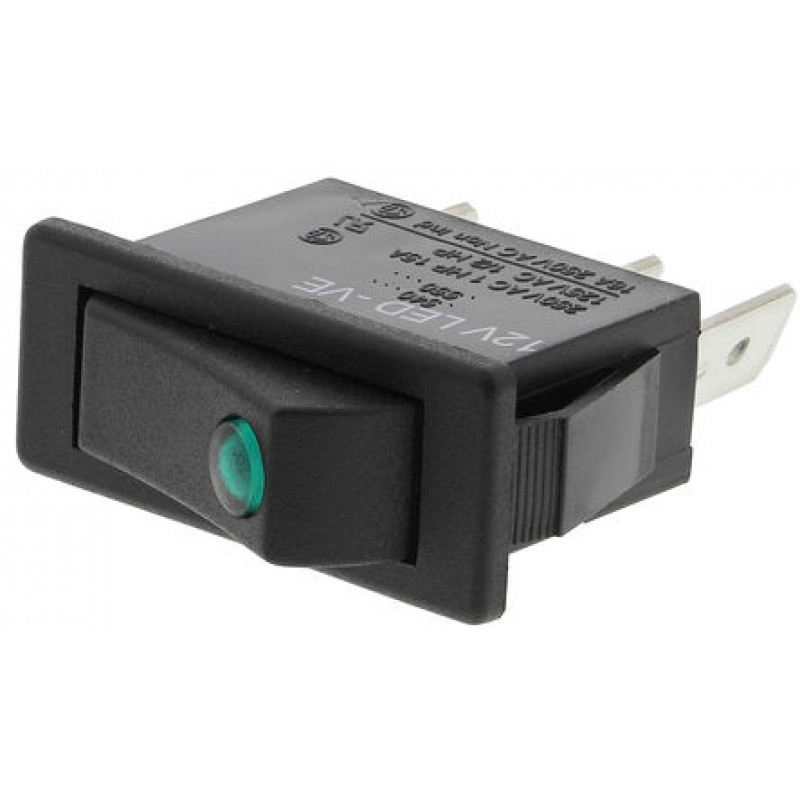

Illuminated Green SPST Rocker Switch, On-Off, 16 A@ 250 V ac 30mm 11mm
Product Code: 503PLLAB
Availability: In Stock
Availability: In Stock
$8.35
Ex Tax: $8.35
Ex Tax: $8.35
Product Details
LED Illuminated Smooth
Single pole on-off with separate LED illumination
Integral resistor makes switches suitable for direct use on 12V systems; additional resistors may be connected externally for use on higher voltages

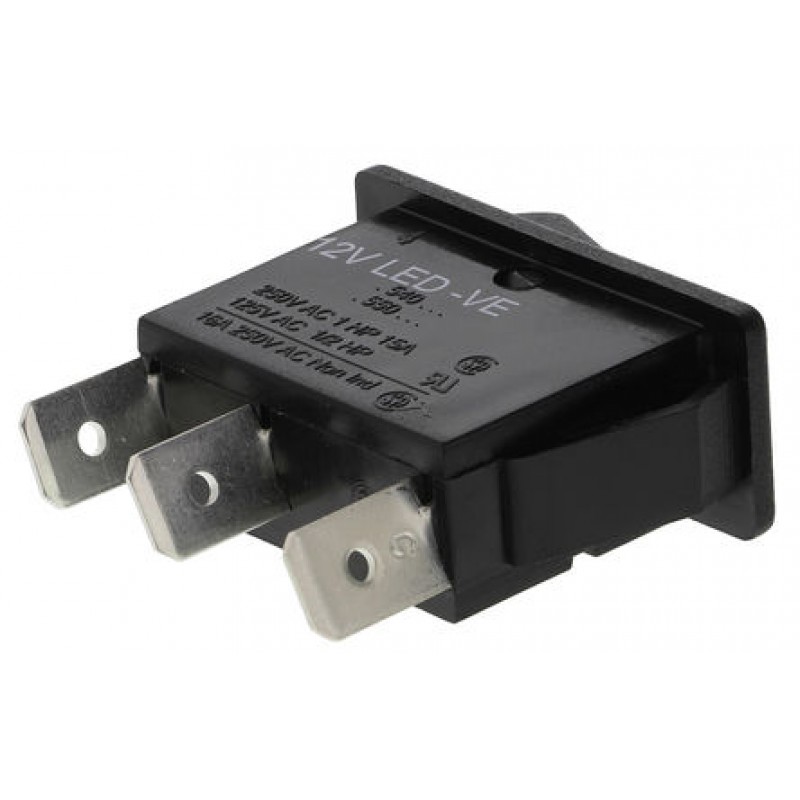

Connection is via .250in faston terminals
Silver contacts
Applications include instrumentation, power supplies and automotive
>10000 operation electrical life
Nylon 6·6 (UL 94 V-2) actuator
| Dimensions | |||||
| Height (mm) | Width (mm) | Depth (mm) | Depth Behind Panel (mm) | Panel Cut-out (mm) | Max. Panel Thickness (mm) |
| 30.2 | 14 | 36.2 | 28.6 | 30 x 11 | 0.75 - 2.5 |
30 x 22mm & 30 x 11mm panel cut out
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 11mm | |
| Panel Cut Out Height | 30mm | |
| Contact Current Rating | 16 A@ 250 V ac | |
| Illuminated | Yes | |
| Actuator Colour | Green | |
| Mounting Type | Panel | |
| Terminal Type | Quick Connect | |
| Panel Cut Out Size | 30 x 11mm |
