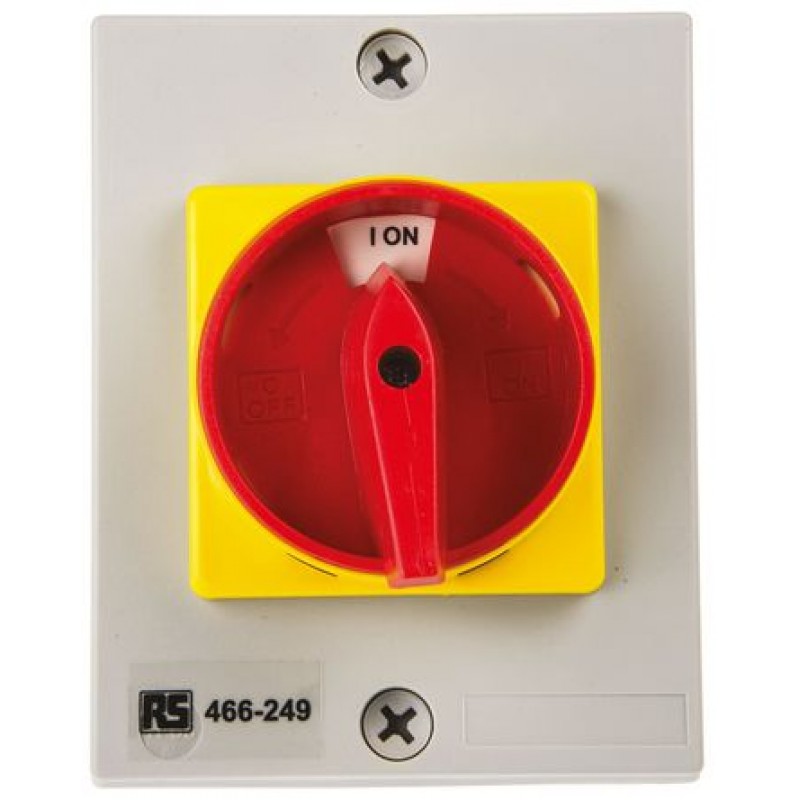

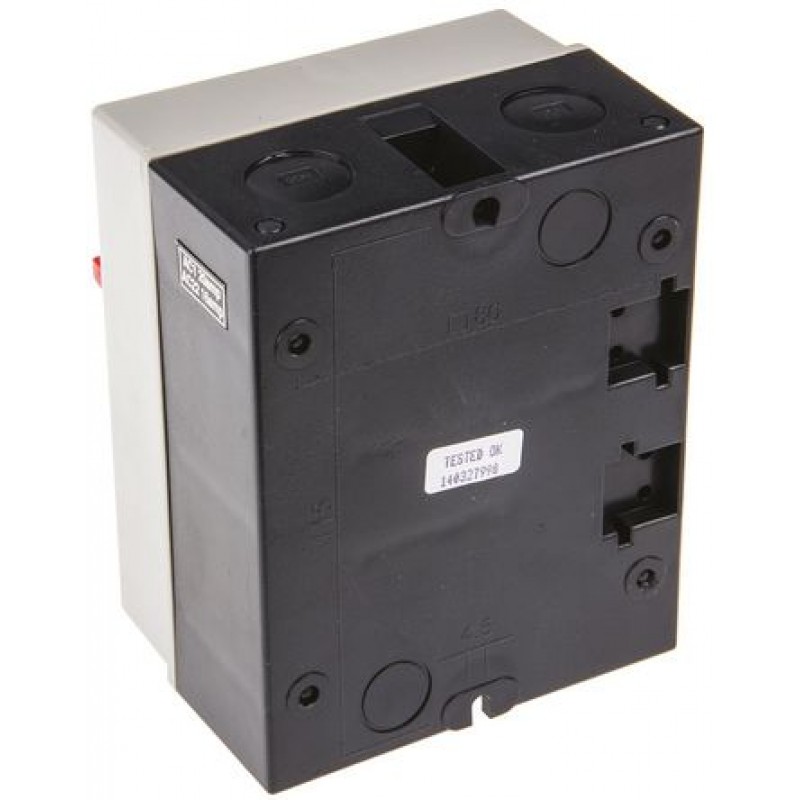

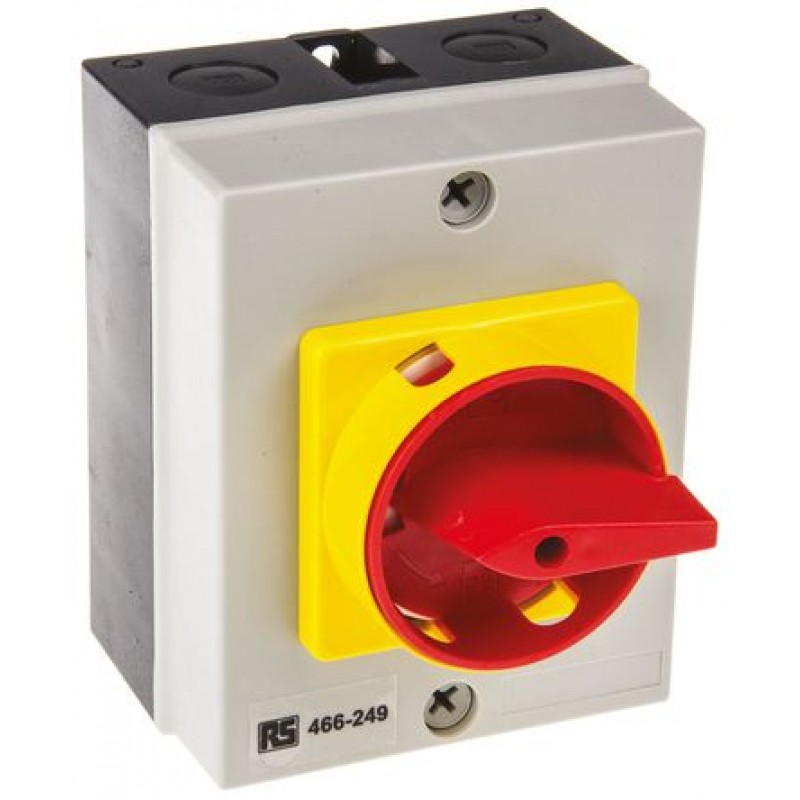

4 Pole DIN Rail, Panel Mount Non-Fused Switch Disconnector, 20 A, 7.5 kW, IP65
Product Code: W66-249
Availability: In Stock
Availability: In Stock
$23.07
Ex Tax: $23.07
Ex Tax: $23.07
Product Details
Boxed Isolators
A RS branded range of boxed isolators.
Interlocking lid ensures removal in the OFF position only
Easy access and switch removal
Padlockable handles
Flame retardant material
Maximum voltage 750V
ABS, metal clad and diecast versions available
Standards
EN60947
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Number of Poles | 4 | |
| Maximum Current | 20 A | |
| Mounting Type | DIN Rail, Panel | |
| Power Rating | 7.5 kW | |
| IP Rating | IP65 | |
| Accepts Padlocks | Yes | |
| Voltage Rating | 690 V ac | |
| Electrical Phase | 3 | |
| Switch Rating | 5 kA | |
| Length | 125mm | |
| Width | 100mm | |
| Depth | 70mm | |
| Terminal Type | Wire Lead | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -25°C | |
| Handle Colour | Red |
