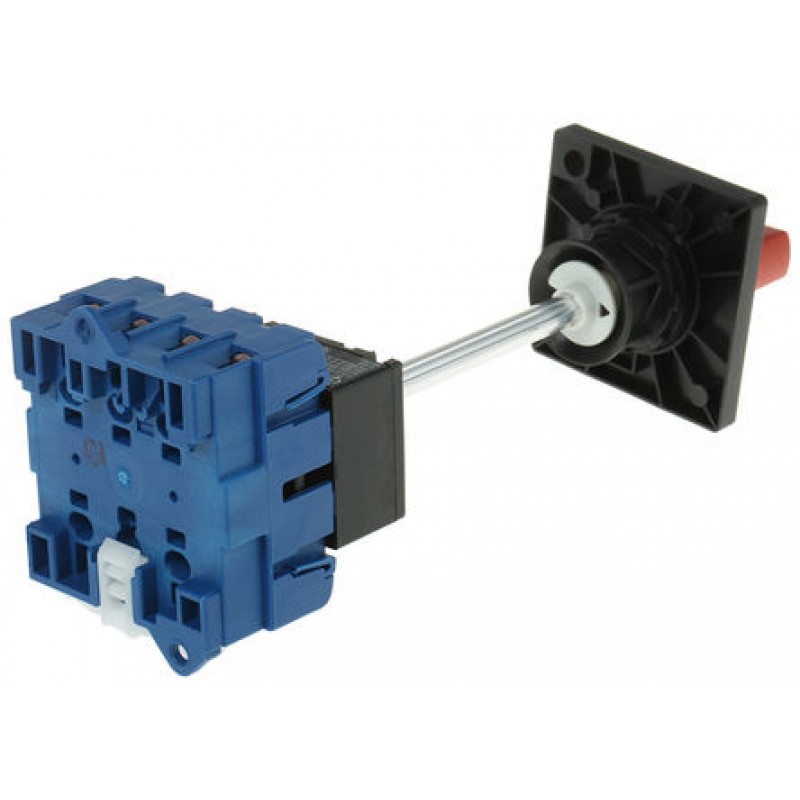

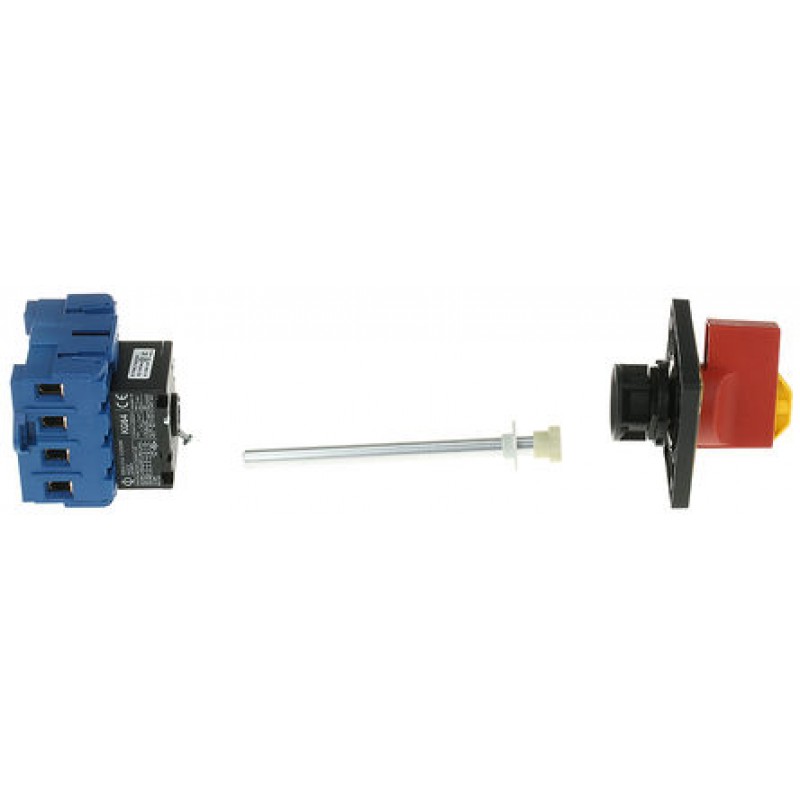

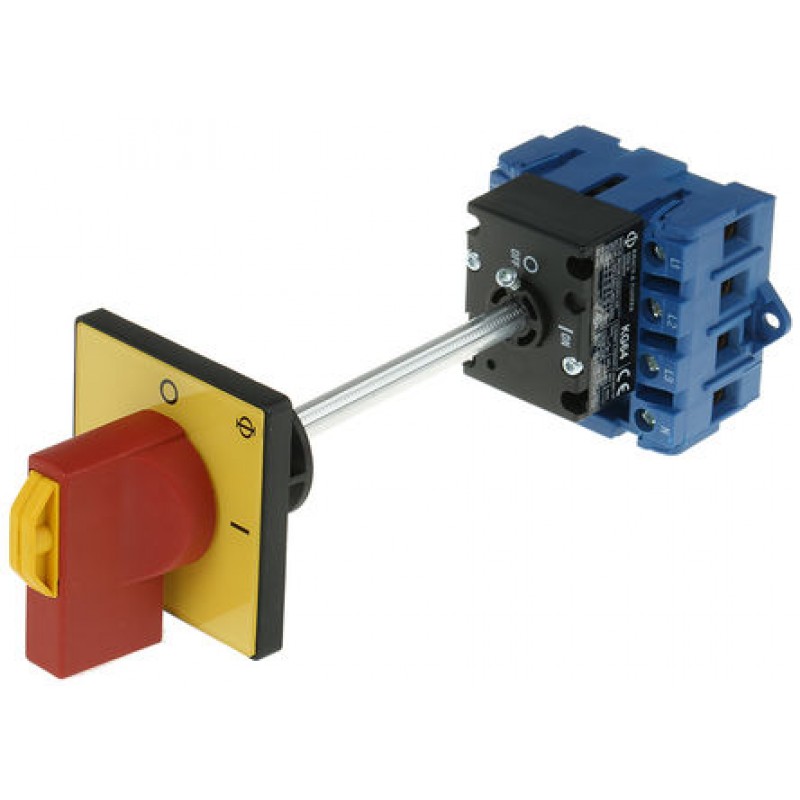

4 Pole DIN Rail, Panel Mount Non-Fused Switch Disconnector, 63 A, 22 kW, IP65
Product Code: G64B T204/GBA302 VE
Availability: In Stock
Availability: In Stock
$59.66
Ex Tax: $59.66
Ex Tax: $59.66
Product Details
Single Hole Mounting Operator 3 & 4 Pole Switch-Disconnectors, IP65
Single hole mounting
Handle padlockable (x4) in "OFF" position
Adjustable metal operating shaft, length 120mm
Door interlocked to prevent opening of panel door while switch is in the 'ON' postion
Fingerproof terminal on 25 to 63A switches
Live terminal cover provided for 80A & 100A switches
Nominal voltage: 690V
Side mounting auxiliary contacts can be added, see typically stock no. 319-691
Base mounting via DIN rail or screw to back of panel
| Dimensions (mm) | |||||||||
| Stock No | A | D3 | E1 | F | G | H | L | M | S |
| 381-3821 | 64 | 5 | 60 | 22 | 42 | 54 | 50 | 58 | 30 to 116.5 |
| 381-3837 | |||||||||
| 381-3843 | 64 | 5 | 70 | 25 | 50 | 64 | 61 | 58 | 30 to 122.5 |
| 381-3859 | |||||||||
| 381-3865 | 64 | 6 | 90 | 25 | 70 | 80 | 68 | 58 | 30 to 119.5 |
| 381-3887 | |||||||||
| 381-3893 | 64 | 5 | 60 | 22 | 55.5 | 54 | 50 | 58 | 30 to 116.5 |
| 381-3900 | |||||||||
| 381-3916 | 60 | 5 | 70 | 25 | 66 | 64 | 61 | 58 | 30 to 122.5 |
| 381-3922 | |||||||||
| 381-3944 | 64 | 6 | 90 | 25 | 92 | 80 | 68 | 58 | 30 to 119.5 |
| 381-3950 | |||||||||
Note
Stated motor rating, Util. Cat. AC23A/AC3, is for 3 phase, 380/440V supply
Standards
BS EN 60947-3, EN 60947-3, IEC 60947-3, VDE 0660, EN 60204-01
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Number of Poles | 4 | |
| Maximum Current | 63 A | |
| Mounting Type | DIN Rail, Panel | |
| Power Rating | 22 kW | |
| IP Rating | IP65 | |
| Accepts Padlocks | Yes | |
| Voltage Rating | 690 V ac | |
| Auxiliary Contacts Available | Yes | |
| Electrical Phase | 3 | |
| Length | 66mm | |
| Width | 64mm | |
| Depth | 61mm | |
| Maximum Operating Temperature | +55°C | |
| Terminal Type | Wire Lead |
