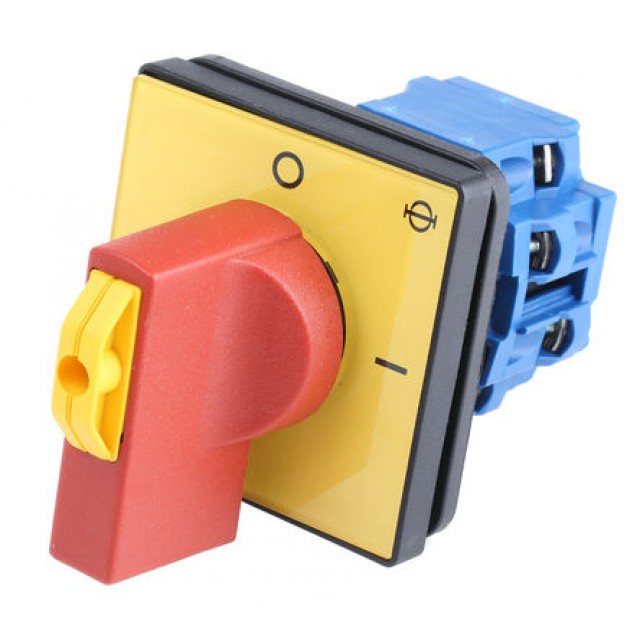

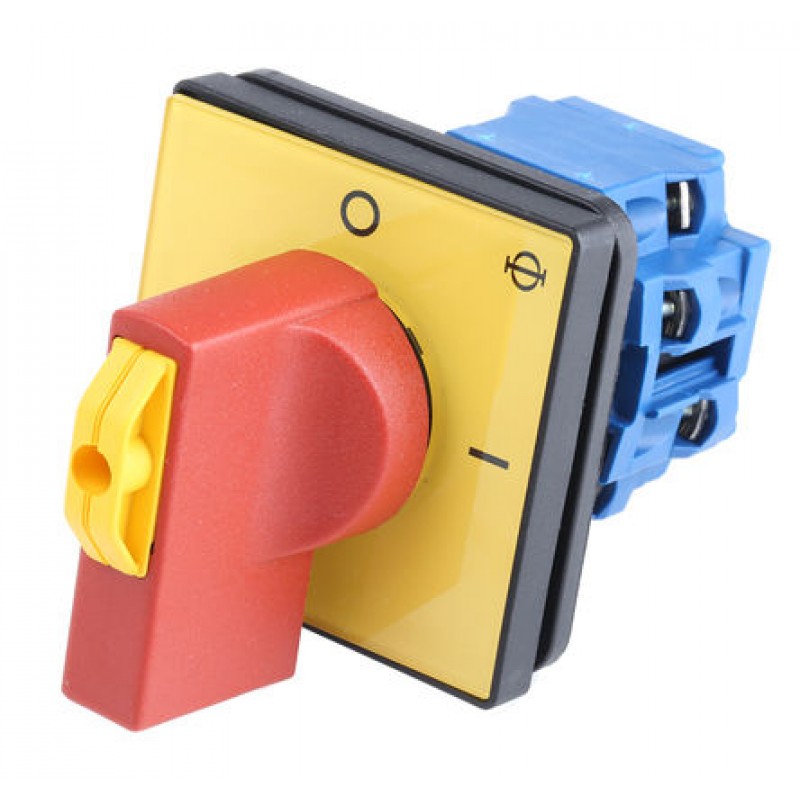

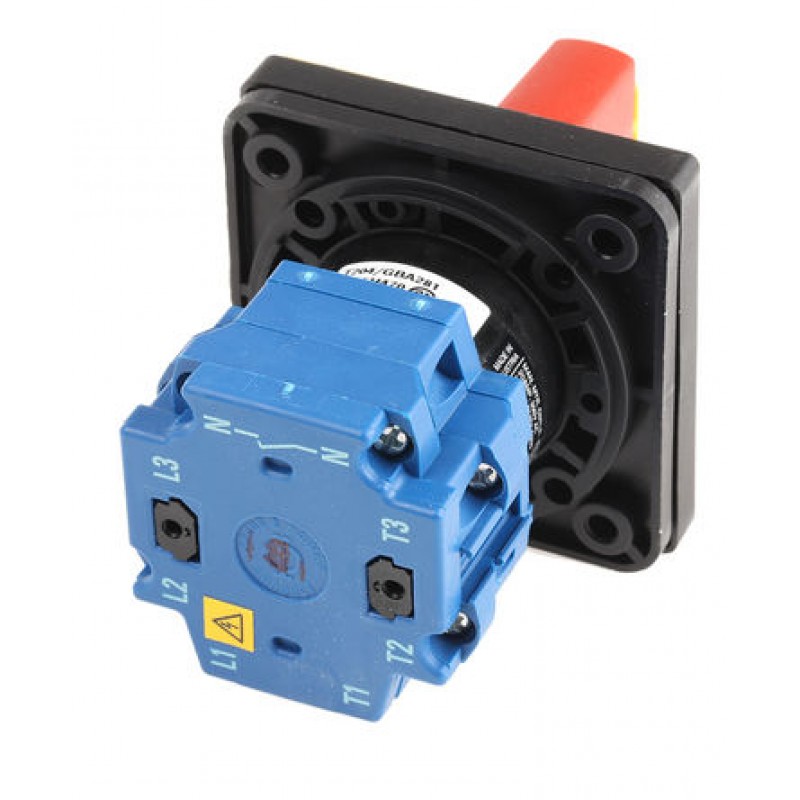

4 Pole Front Panel Mount Non-Fused Switch Disconnector, 20 A, 5.5 kW, IP65
Product Code: KG10BT204/GBA281 E
Availability: In Stock
Availability: In Stock
$29.09
Ex Tax: $29.09
Ex Tax: $29.09
Product Details
IP65, Panel Door Mount, Switch Disconnectors
Padlockable (x4) in "OFF" position
Fingerproof main terminals on 20A to 63A switches
Terminal shrouds supplied with 80A to 250A switches
Note
Switch types KG80 and KG100 come with terminal shrouding for the main contact terminals on one side of the switch body only (stock nos. 282-1411, 193-6017, 282-1607 & 282-1613). The KG161 and KG251 switches (stock nos. 282-1629 & 282-1635) include shrouding for both sides of the switch.
Standards
BS EN 60947-3, EN60947-3, IEC 60947-3, VDE 0660, EN 60204-1
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Number of Poles | 4 | |
| Maximum Current | 20 A | |
| Mounting Type | Front Panel | |
| Power Rating | 5.5 kW | |
| IP Rating | IP65 | |
| Accepts Padlocks | Yes | |
| Voltage Rating | 690 V ac | |
| Electrical Phase | 3 | |
| Terminal Type | Wire Lead | |
| Maximum Operating Temperature | +55°C |
