Product Code: 194E-A25-1753-6N
Availability: In Stock
$32.96
Ex Tax: $32.96
Product Details

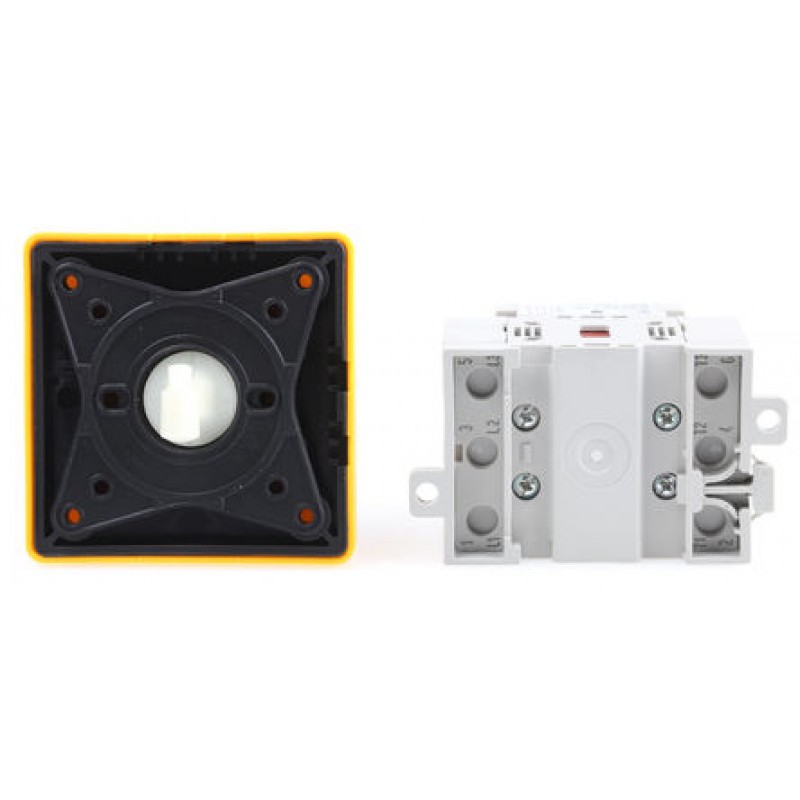

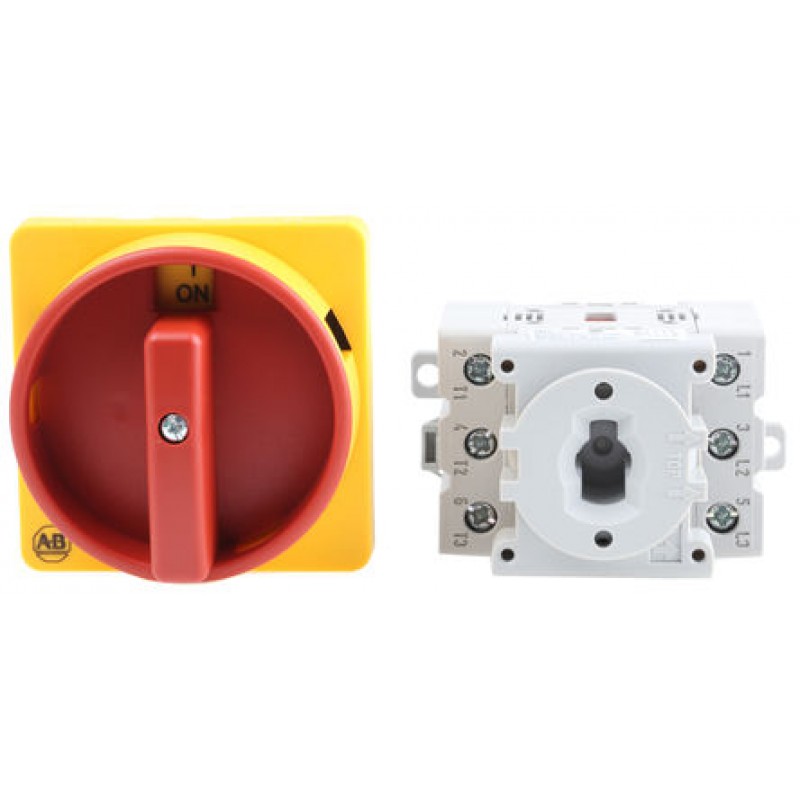

Switch Disconnectors (Base Mounting)

The switches fully conform to IEC204, VDE 0660 and IEC947 and are UL,CSA approved.

Manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos

Insulation Voltage Ui 690 690 690 690 690 690
Thermal Current Ith 30 40 50 75 100 120
Rated Current Ie 25 32 40 63 80 100
Operating temp. °C -20/+55 -20/+55 -20/+55 -20/+55 -20/+60 -20/+60
Max.Cable size mm 16 16 25 25 50 50
Motor Rating AC3 (kW) 7.5 11 15 18.5 30 37
Motor Rating AC23A (kW) 11 15 18.5 22 37 45



http://uk.rs-online.com/largeimages/L261784-01.gif
http://uk.rs-online.com/largeimages/LI261784-01.gif






Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Number of Poles 3
Maximum Current 25 A
Mounting Type Base, DIN Rail
Power Rating 11 kW
IP Rating IP66
Accepts Padlocks Yes
Voltage Rating 690 V ac
Electrical Phase 3
Switch Rating 20 kA
Length 70mm
Width 45mm
Depth 59mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +60°C
Handle Colour Black/Grey, Red/Yellow
Terminal Type Wire Lead
