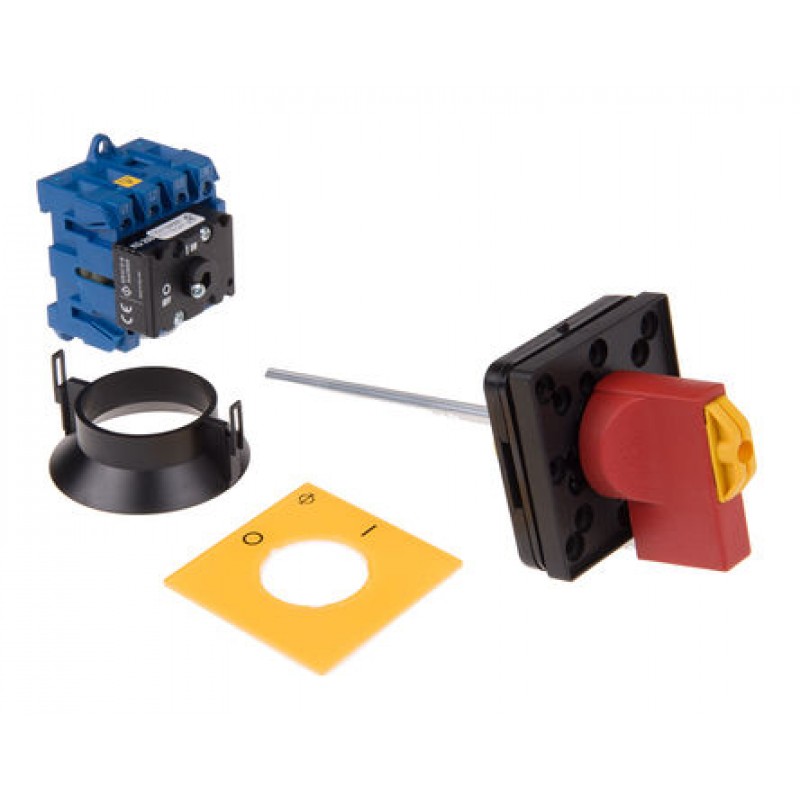

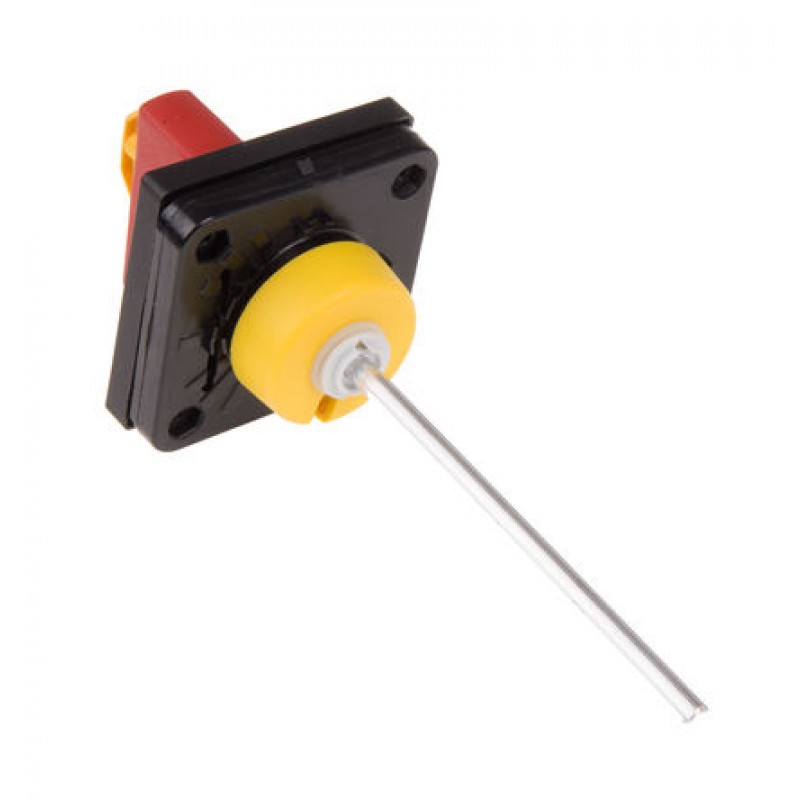

3 & 4-pole Extended Shaft Switch Disconnectors IP65 Rated

Padlockable (x4) in "OFF" position
Interlocked in "ON" position to prevent panel door being opened while switch is "ON"

Dimensions mm
Stock no.	A	B	C	D min	D max	E	F	G	H	J	K	L
342-2295	48	—	56.2	35	118	58	64	64	50	22	60	5.0
342-2302	48	—	56.2	35	118	58	64	64	50	22	60	5.0
191-7533	42	14	50.0	35	125	58	64	64	54	22	60	5.0
282-1477	58	14	50.0	35	125	58	64	64	54	22	60	5.0
191-7549	42	14	50.0	35	125	58	64	64	54	22	60	5.0
282-1483	58	14	50.0	35	125	58	64	64	54	22	60	5.0
282-1376	50	16	61.0	35	132	58	64	64	64	25	70	5.0
282-1499	66	16	61.0	35	132	58	64	64	64	25	70	5.0
191-7498	50	16	61.0	35	132	58	64	64	64	25	70	5.0
282-1506	66	16	61.0	35	132	58	64	64	64	25	70	5.0
282-1382	70	22	68.0	35	130	58	64	64	106	25	90	6.0
282-1528	92	22	68.0	35	130	58	64	64	106	25	90	6.0
191-7555	70	22	68.0	35	130	58	64	64	106	25	90	6.0
282-1534	92	22	68.0	35	130	58	64	64	106	25	90	6.0
236-417	112	—	91.0	50	309	73	88	88	150	36	78	6.4
282-1540	150	—	91.0	50	309	73	88	88	150	36	78	6.4
236-423	145	—	98.0	50	309	73	88	88	173	44	82	6.4
282-1556	198	—	98.0	50	309	73	88	88	173	44	82	6.4

Note

Motor rating refers to AC23A type and Motor load rating refers to AC3. Switch shaft is included.
Stock no. 758-484 (K2) is 52 x 43 x 10 mm.
Stock no. 758-478 (K1) is 50 x 33 x 9 mm.

Standards

BS EN 60947-3, EN60947-3, IEC 60947-3, VDE 0660, EN 60204-1
