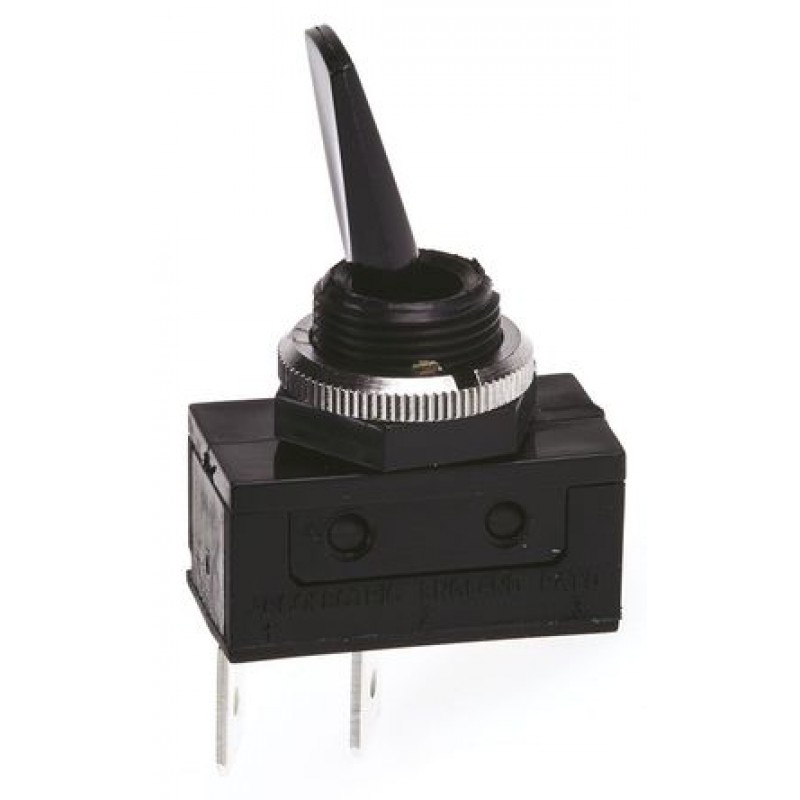

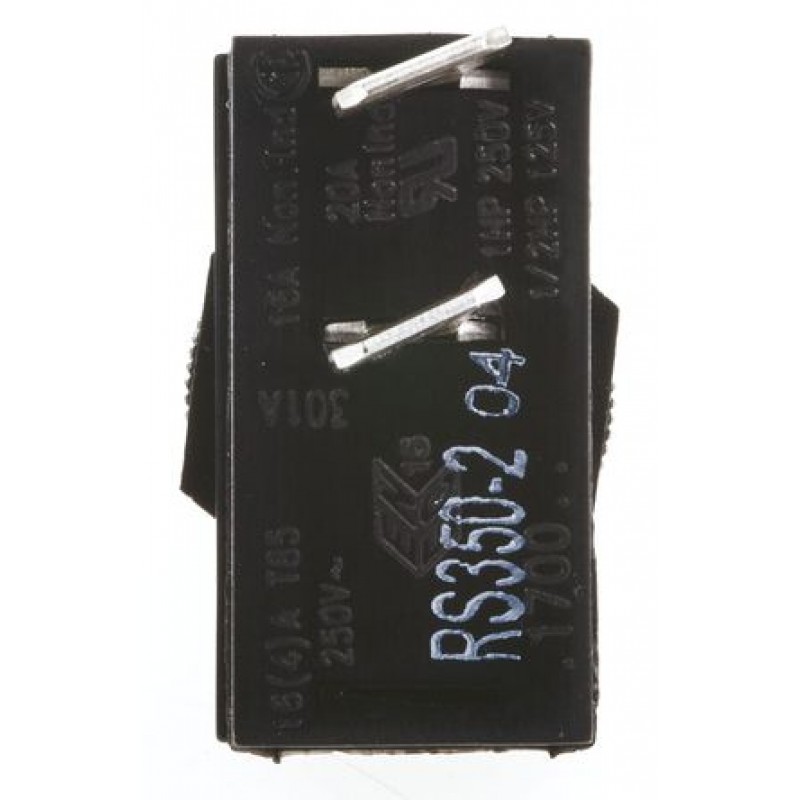

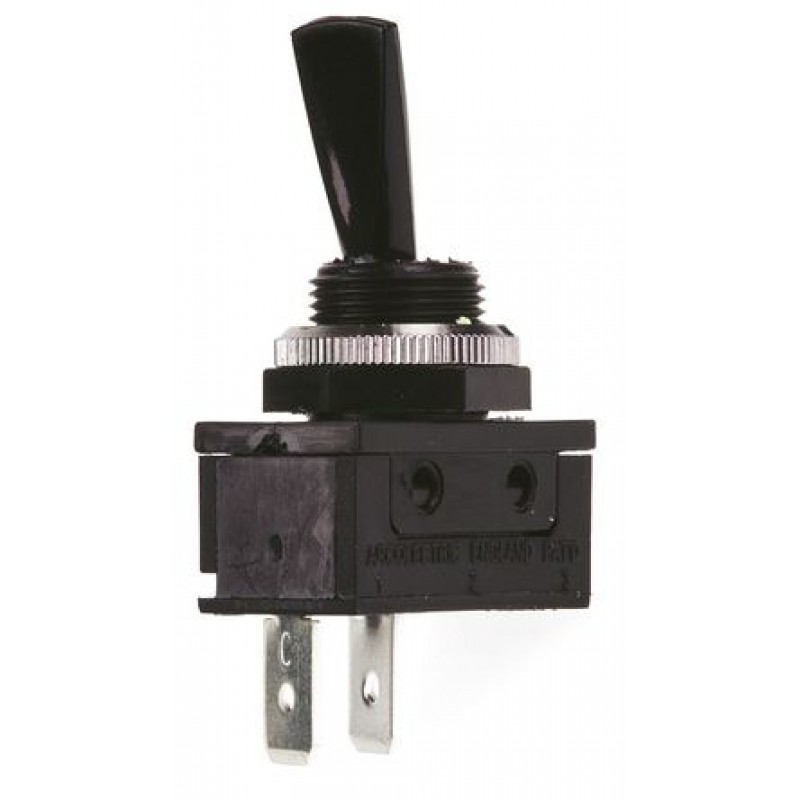

Toggle Switch IP40 SPST On-Off, 20 A@ 250 V ac, Panel Mount
Product Code: 1700HOAAG
Availability: In Stock
Availability: In Stock
$6.66
Ex Tax: $6.66
Ex Tax: $6.66
Product Details
Toggle Switches, Std, 16 A Insulated
Insulated toggle switches, moulded in nylon 6.6 and BEAB approved to EN61058-1
Connection by 250 ( 1/4 in. push-on receptacles, or soldering)
For use where metal switches are unsuitable
Suitable for Class II double insulated equipment
IP40
Polycarbonate actuator and Nylon 6.6 case
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
ENEC, UL recognised component, CSA certified
Toggle Switches
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Contact Current Rating | 20 A @ 250 V ac | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder, Tab | |
| IP Rating | IP40 | |
| Panel Cut Out Diameter | 12.7mm | |
| Actuator Length | 16.4mm | |
| Actuator Material | PC | |
| Contact Resistance | 100mΩ | |
| Panel Cut Out Size | 12.7mm | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | Maximum of +85°C |
