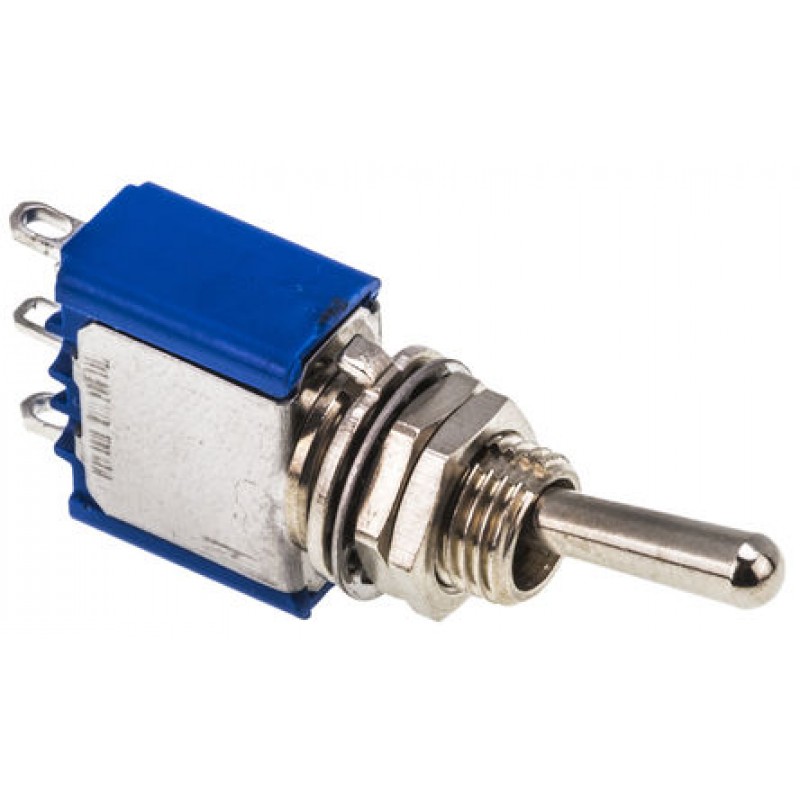

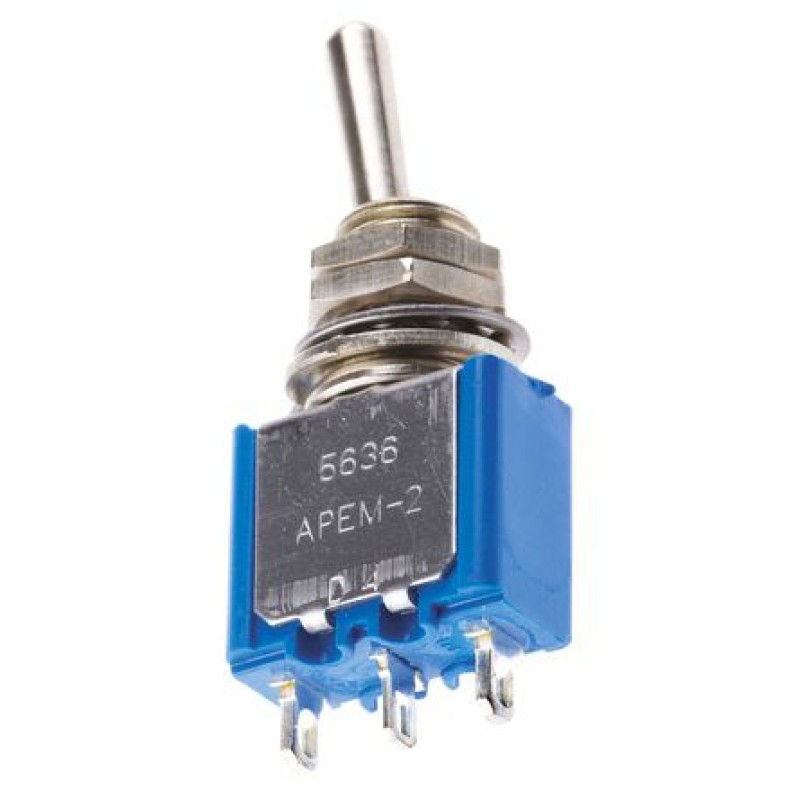

Toggle Switch SP On-On, 6 A@ 125 V ac, Panel Mount
Product Code: 5636A
Availability: In Stock
Availability: In Stock
$7.98
Ex Tax: $7.98
Ex Tax: $7.98
Product Details
Toggle Switches, Standard Lever
Panel mount switches with a large variety of contact configurations
Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)
Brass actuator and Diallyl Phthalate case
Silver contacts
Panel cut-out 6.35 mm
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO
Toggle Switches
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | SP | |
| Switch Operation | On-On | |
| Contact Current Rating | 4 A @ 30 V dc | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Actuator Material | Brass | |
| Contact Resistance | 10mΩ | |
| Operating Temperature Range | -40 → +85°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver | |
| Mechanical Life | 100000Operations | |
| Maximum Operating Temperature | +85°C |
