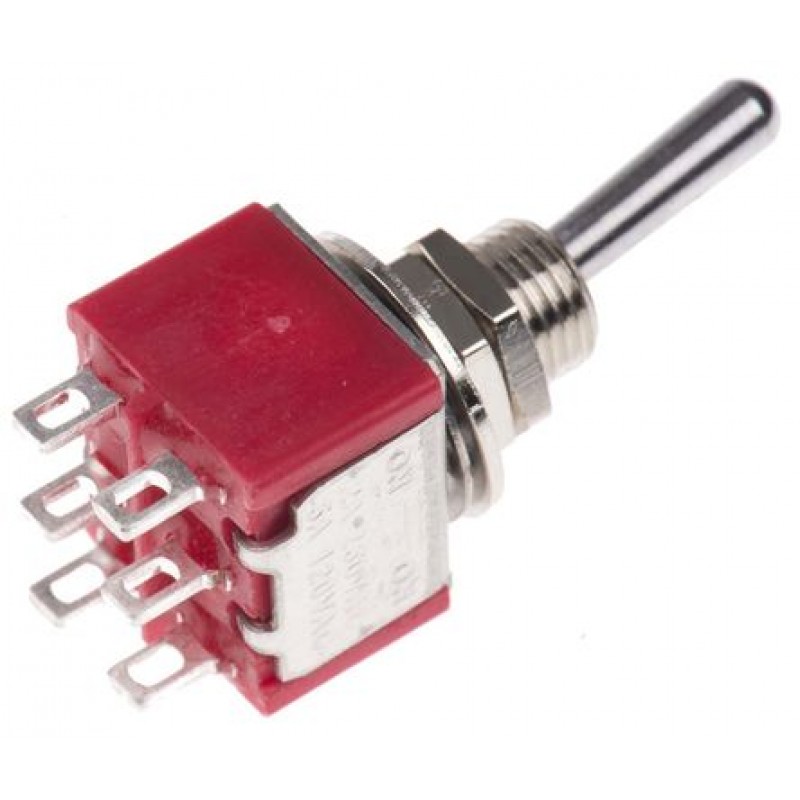

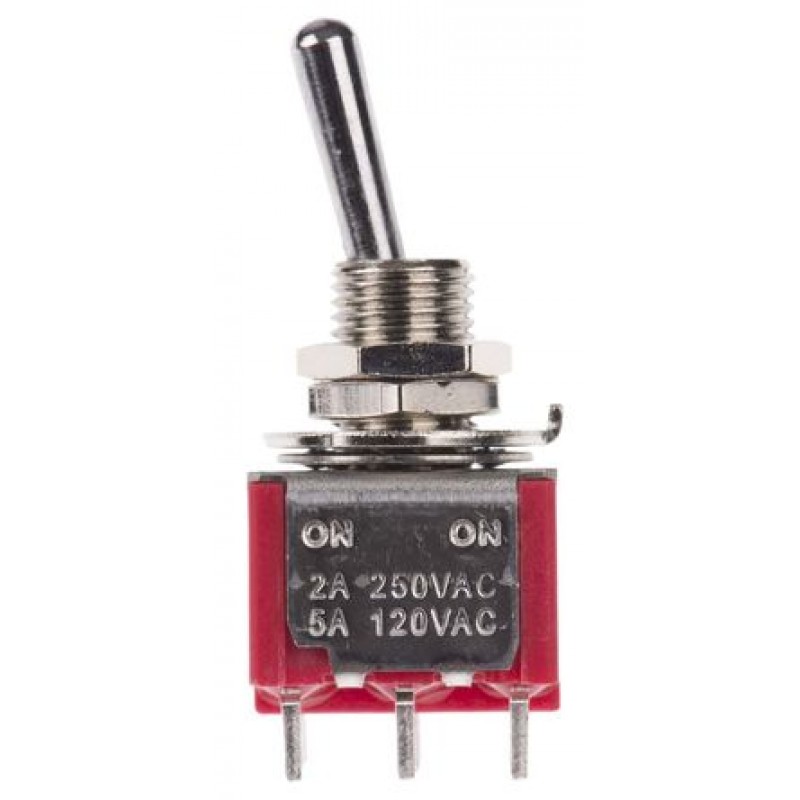

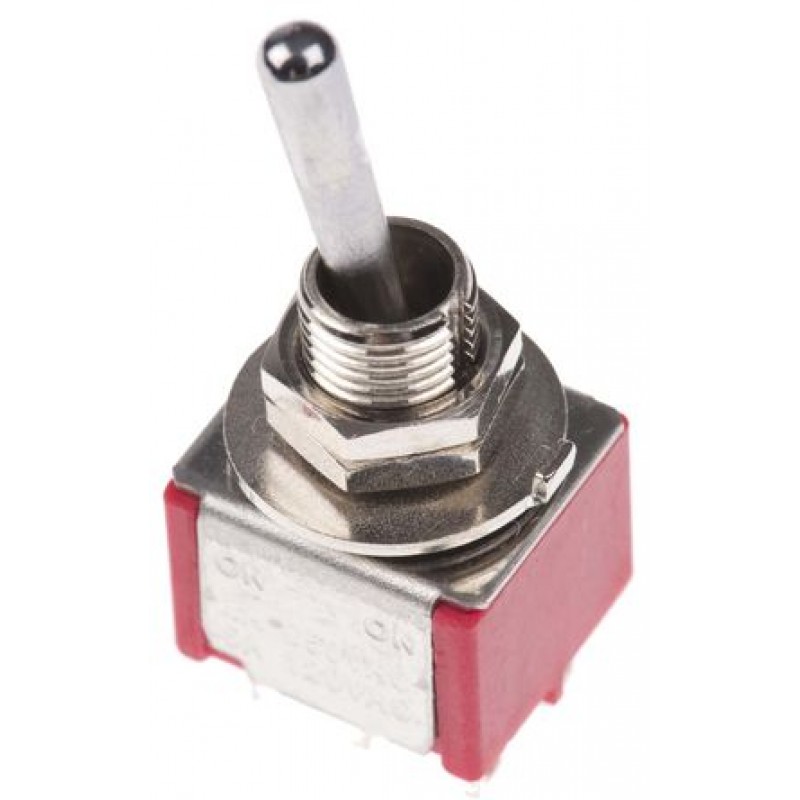

Toggle Switch DPDT On-On, 5 A, Panel Mount
Product Code: MD1T1B1M1QES-5
Availability: In Stock
Availability: In Stock
$6.98
Ex Tax: $6.98
Ex Tax: $6.98
Product Details
Toggle Switches
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPDT | |
| Switch Operation | On-On | |
| Contact Current Rating | 5 A @ 250 V ac | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Panel Cut Out Diameter | 6.35mm | |
| Actuator Length | 10.41mm | |
| Actuator Material | Chromium Plated Brass | |
| Contact Resistance | 10mΩ | |
| Maximum Operating Temperature | +85°C | |
| Mechanical Life | 40000Cycles | |
| Minimum Operating Temperature | -30°C | |
| Panel Cut Out Size | 6.35mm | |
| Contact Material | Silver Plated Brass | |
| Operating Temperature Range | -30 → +85°C |
