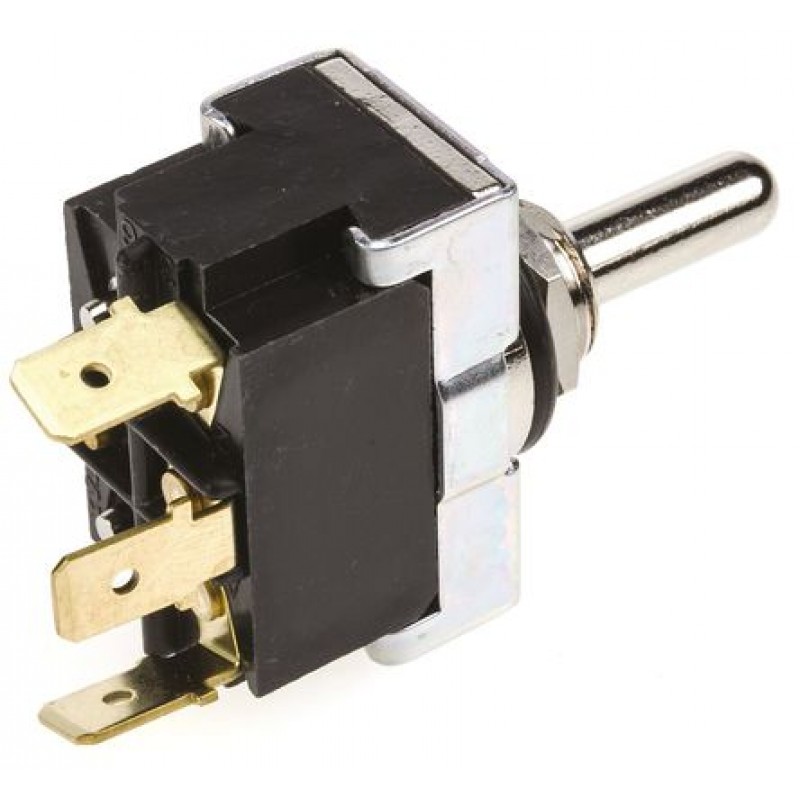

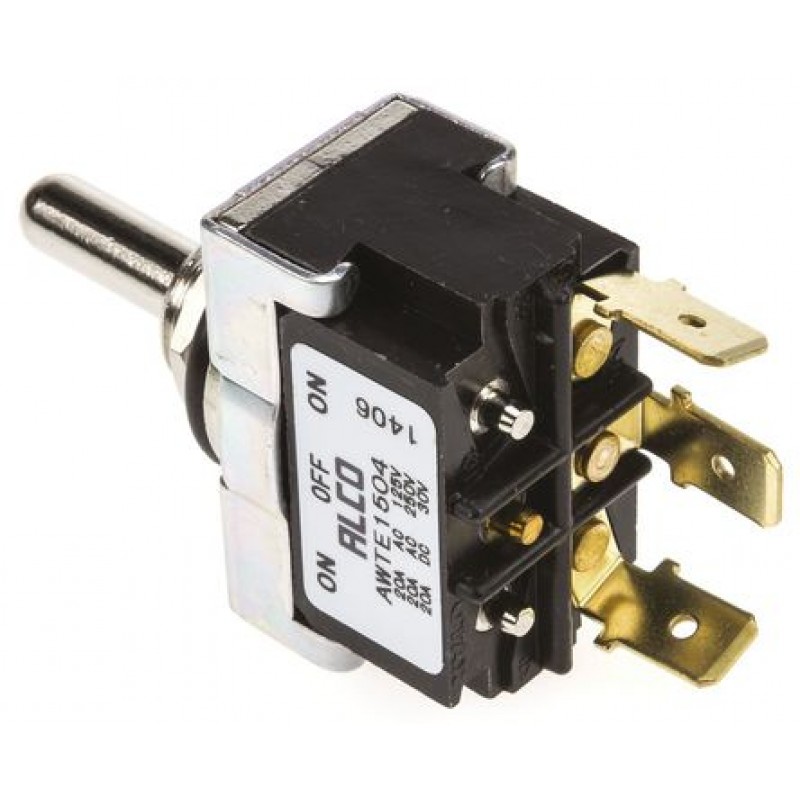

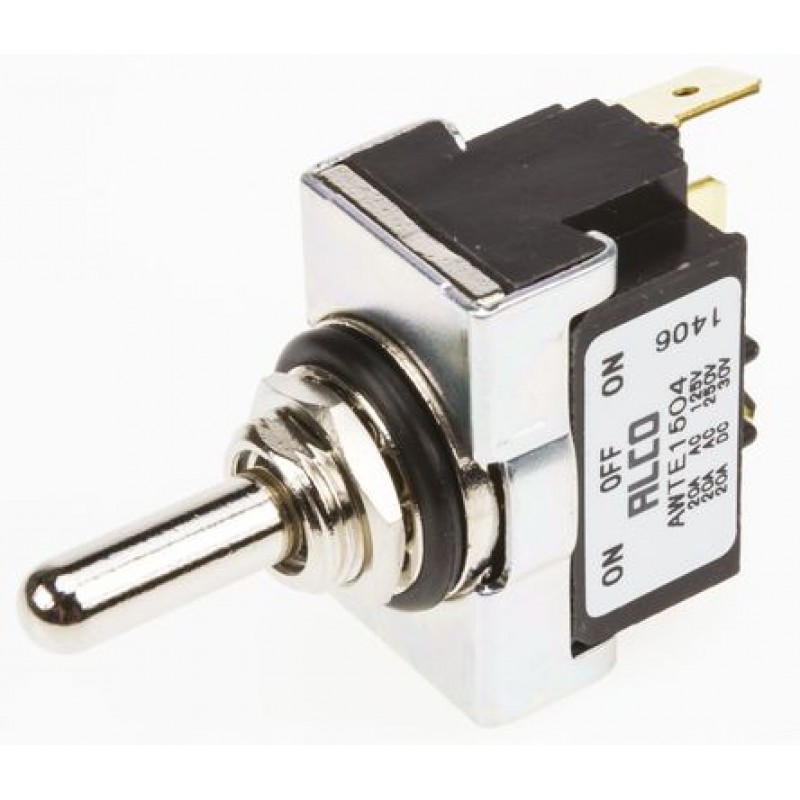

Toggle Switch IP67 SPDT On-Off-On, 20 A, Panel Mount
Product Code: WTE1504
Availability: In Stock
Availability: In Stock
$35.98
Ex Tax: $35.98
Ex Tax: $35.98
Product Details
Waterproof IP67
Toggle switches with silver plated contacts sealed to prevent the ingress of dust or liquids
Connection via 250in. (1/4in.) receptacles or soldering
For biased operation ’(on)’ refers to momentary on position
Brass actuator and Glass Filled Polyester case
| Stock no. | Switch configuration |
| 317-421 | on – on |
| 317-825 | on – off – on |
| 317-437 | on – on |
| 317-831 | on – (on) |
| 317-847 | on – off – on |
| 317-853 | on – off – (on) |
| 199-318 | (on) – off – (on) |
| 266-2206 | on – off |
| 266-2212 | on – on |
| 266–2234 | on – off – on |
| * (on) = momentary action switch |
Approvals
UL; CSA
Toggle Switches
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | SPDT | |
| Switch Operation | On-Off-On | |
| Contact Current Rating | 20 A @ 250 V ac | |
| Mounting Type | Panel Mount | |
| Terminal Type | Tab | |
| IP Rating | IP67 | |
| Actuator Length | 17.5mm | |
| Actuator Material | Brass | |
| Contact Resistance | 10mΩ | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Silver Plated | |
| Mechanical Life | 40000Cycles | |
| Operating Temperature Range | -20 → +70°C | |
| Minimum Operating Temperature | -20°C |
