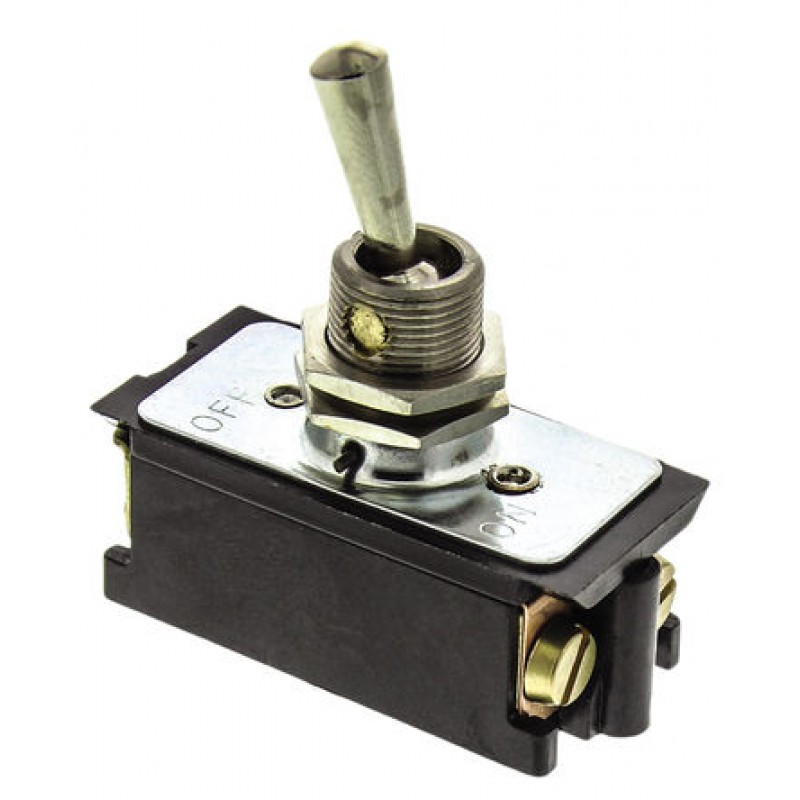

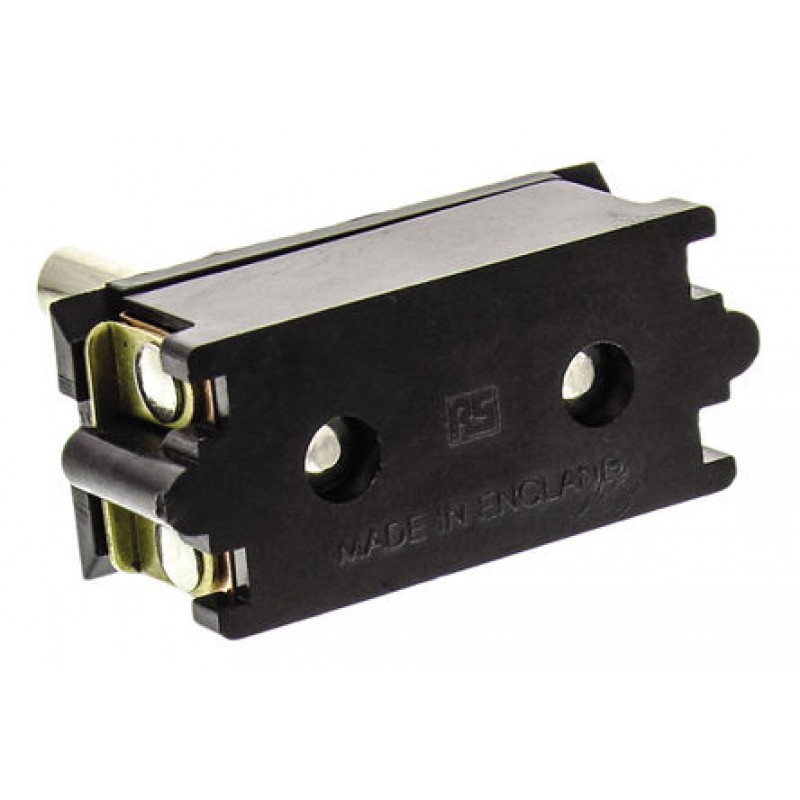

Toggle Switch SPST On-Off, 10 A@ 125 V ac/dc, Panel Mount
Product Code: J161
Availability: In Stock
Availability: In Stock
$17.07
Ex Tax: $17.07
Ex Tax: $17.07
Product Details
Toggle Switches, Std, 6A
Moulded body with QMB long life wiping contacts, screw terminals and pear-shaped toggle
Mounting bush 0.468in dia., length 11mm, single locating slot
Case moulded with QMB
Note
All have a contact resistance of 10mΩ or less
For biased switches '(on)' refers to momentary 'on' position
Toggle Switches
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Contact Current Rating | 10 A @ 125 V ac | |
| Mounting Type | Panel Mount | |
| Terminal Type | Screw | |
| Actuator Length | 11mm | |
| Contact Resistance | 10mΩ |
