Availability: In Stock
Ex Tax: $22.86

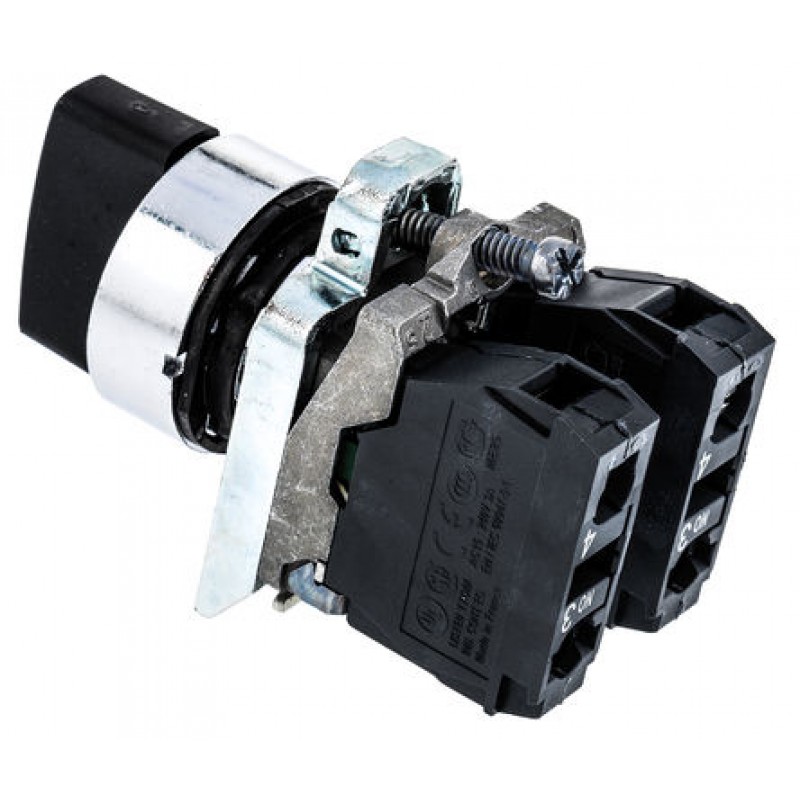

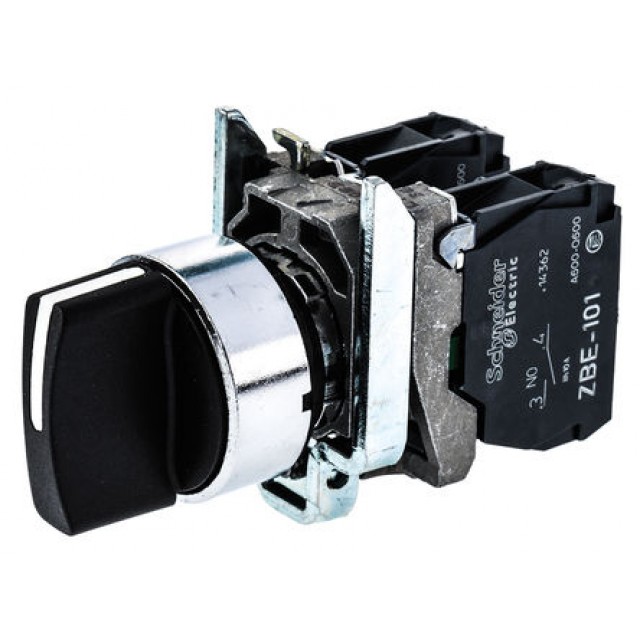

Selector Switches, XB4-B
• Standard black handle selector switches.
• Screw clamp terminal connections.
• Supplied with contact blocks.
• Manufacturers part nos. ending in B5 are fitted with a 24V LED, M5 are fitted with a 230V LED and G5 are fitted with a 110V LED.
• Manufacturers part nos. containing a J are long handle type.
Note
Manufacturers part numbers ending in EX are EX rated products.
• Modular ranges of 22 mm push buttons and pilot light devices with chrome bezels.
• Head automatically retains in position within cut-out.
• Self locking, vibration resistant, and three point fixing.
• Premarked and blanked legend plates available.
• Rapid connections.
• Up to nine electrical blocks can be fitted by a simple clip-on mounting.
• A unique, patented integral LED technology providing 100,000 hours service resistant to vibration and electromagnetic interference.
• Operating temperature range -25 to +70 °C.
• All heads require a panel cut-out of 22.3 mm to 22.5 mm diameter.
Normal State Configuration | 2NO | |
Maximum Current | 10 A | |
Maximum Voltage | 600 V ac | |
Number of Positions | 3 | |
Terminal Type | Screw Clamp | |
Actuator Type | Lever, Stay Put |
