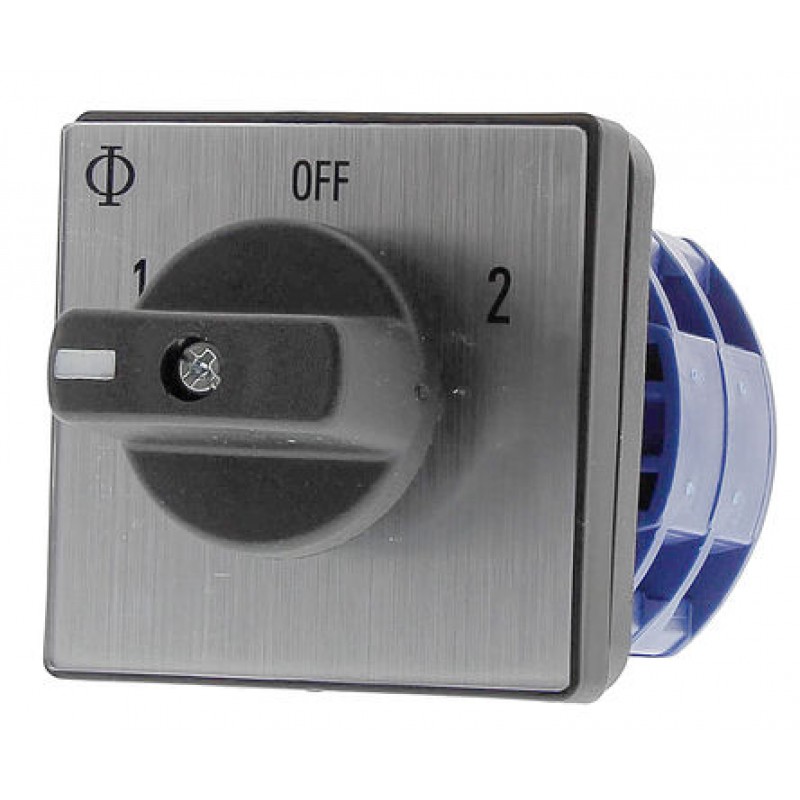

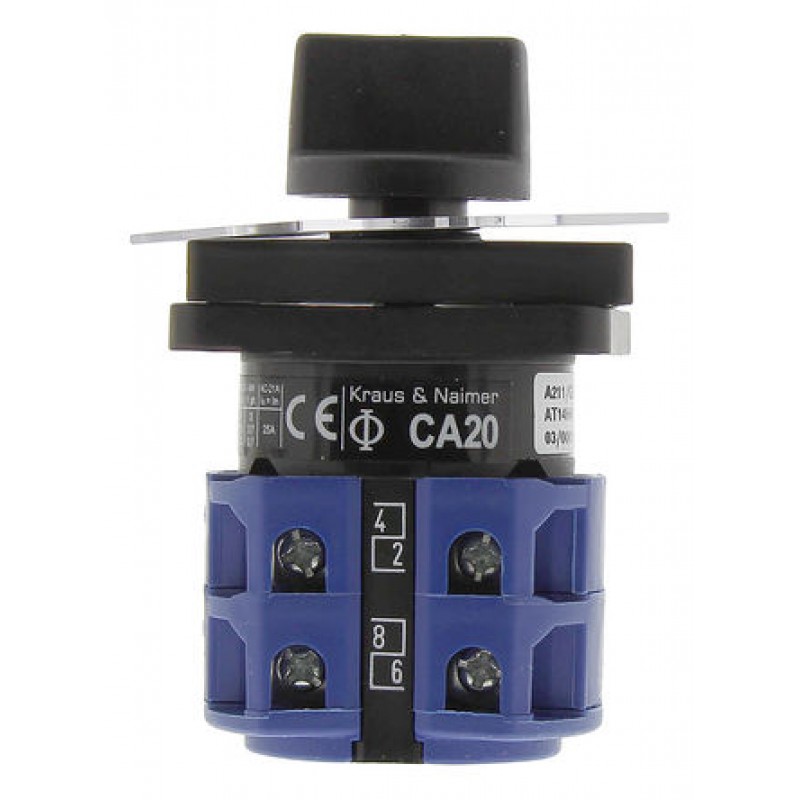

3 positions Rotary Switch, 20 A, Knob
   0 reviews  |  Write a review
Product Code: A20A211/GBA001E
Availability: In Stock
$26.66
Ex Tax: $26.66
Product Details

Changeover (CO) Switches

Suitable for standard low voltage control/load switching and extra low voltage and electronics applications
Ring type terminal or Faston push-on cable end connectors
Switch bodies supplied with appropriate legend plate
Thermal rated current Ith IEC 947-3 (This is detailed in the ’Current Rating’ column in the price table)

Note

The current ratings shown in brackets meet the requirements of IEC 408, BS5419, and VDE 0660



http://uk.rs-online.com/largeimages/L400501-01.gif
http://uk.rs-online.com/largeimages/LD400501-03.gif
http://uk.rs-online.com/largeimages/LD400501-04.gif
http://uk.rs-online.com/largeimages/LD400501-05.gif
http://uk.rs-online.com/largeimages/LI400501-10.gif








Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Pole and Throw Configuration DP
Normal State Configuration NO/NC
Maximum Current 20 A
Number of Positions 3
Length 48mm
Width 48mm
Depth 48.6mm
Actuator Type Knob
Dimensions 48 x 48 x 48.6 mm
