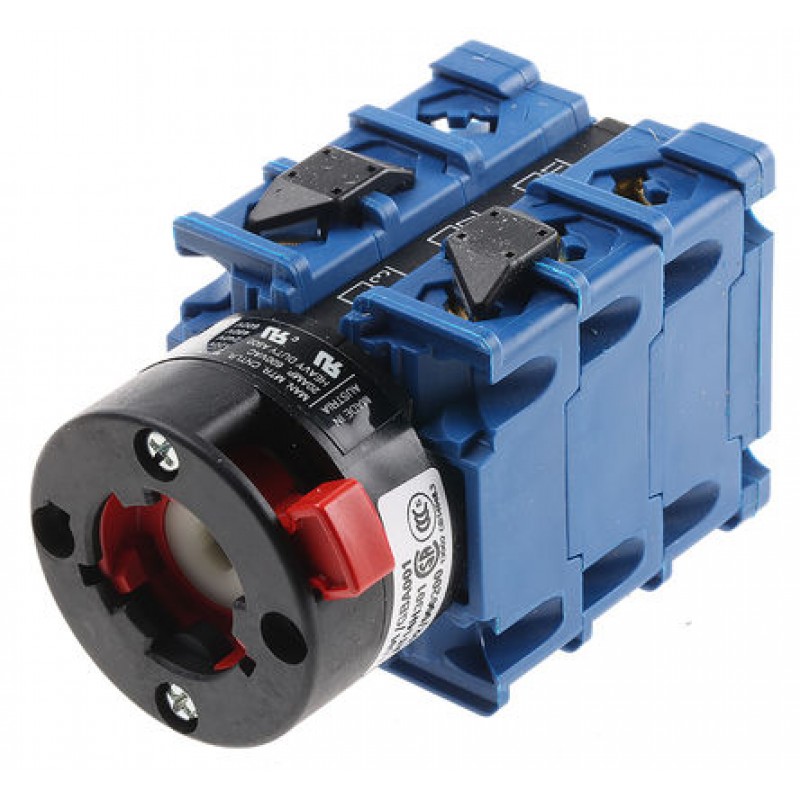

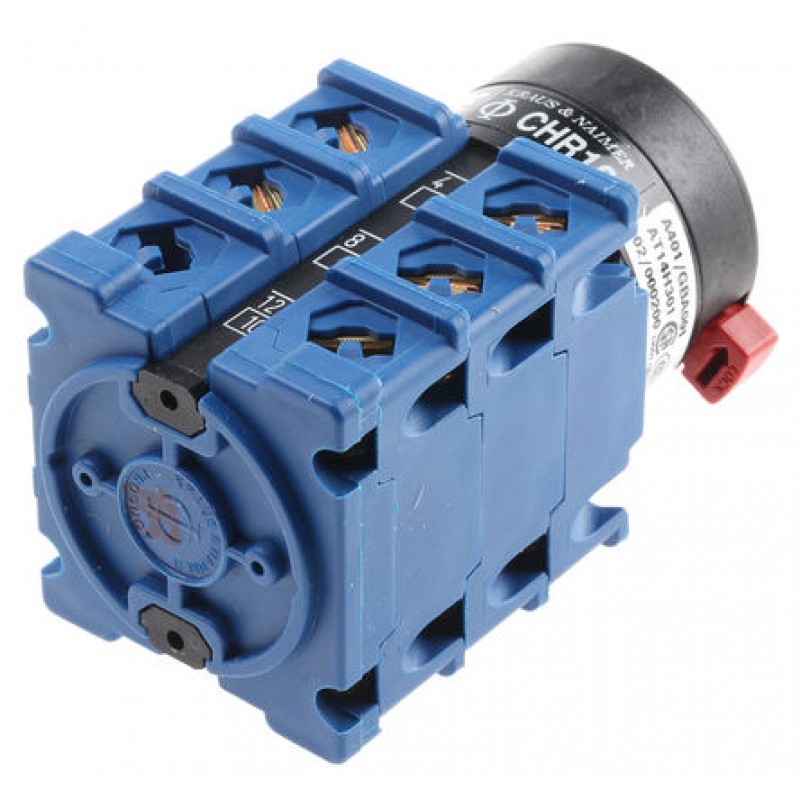

Product Code: HR10A401/GBA001 * FT
Availability: In Stock
$23.12
Ex Tax: $23.12
Product Details

Series CHR10

Each switch body is supplied with the appropriate legend plate but the switch operator must be ordered separately (see stock no. 350-0840 typically)

Rated at 20A



http://uk.rs-online.com/images60/L340561-01.gif



Switch Bodies and Legend Plates

Technical Specification
Series CA10 CA20 CA25 CAD11 CHR10 CG8
Insulation Voltage U, 690V 690V 690V 600 690 690
Thermal Current lth 20A 25A 32A 6A 20A 20A
Motor Rating AC-23A 7.5kW 11kW 15kW - 7.5kW 7.5kW
Motor Rating AC-3 5.5kW 7.5kW 11kW - 5.5kW 5.5kW
Switching Angle 60°
Dims. (mm) 48 x 48mm
Ambient temp. of stages 55°C during 24 hours with peaks up to 60°C at 100% load
Protection IP20
Legend Plate Silver with black text
Standards IEC 947, EN 60947
CA10, CA20, CA25 & CAD11 Series Open finger proof terminals accessible from the side to facilitate wiring. Captive plus-minus screws

CHR10 Series For connection with ring type terminals. Open finger-proof terminals accessible while switch is being installed. Captive plus-minus screws located 90° apart from the terminal direction allowing for connection of wires without any interference with the terminal screws.

CG8 Series Open finger-proof terminals accessible while the switch is installed. Captive plus-minus screws. Due to the arrangement of the terminals it is possible to install switches closely, side by side or to mount them directly at the cable trays



Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Electrical Phase 3
Maximum Current 20 A
Maximum Voltage 690 V
Number of Positions 3
Angle of Throw 60°
Length 48mm
Width 48mm
Actuator Type Rotary Knob
