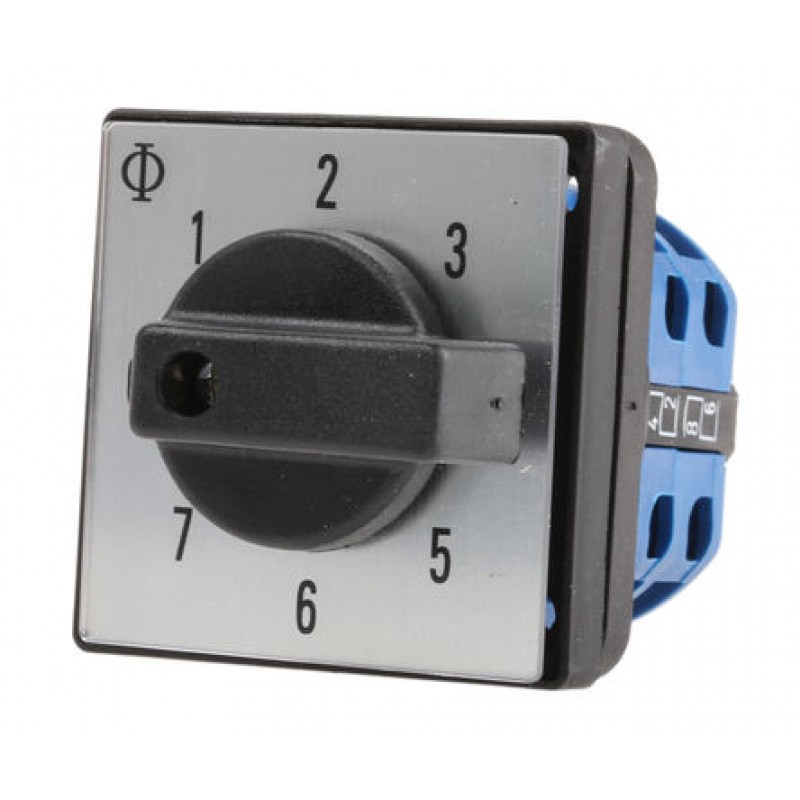

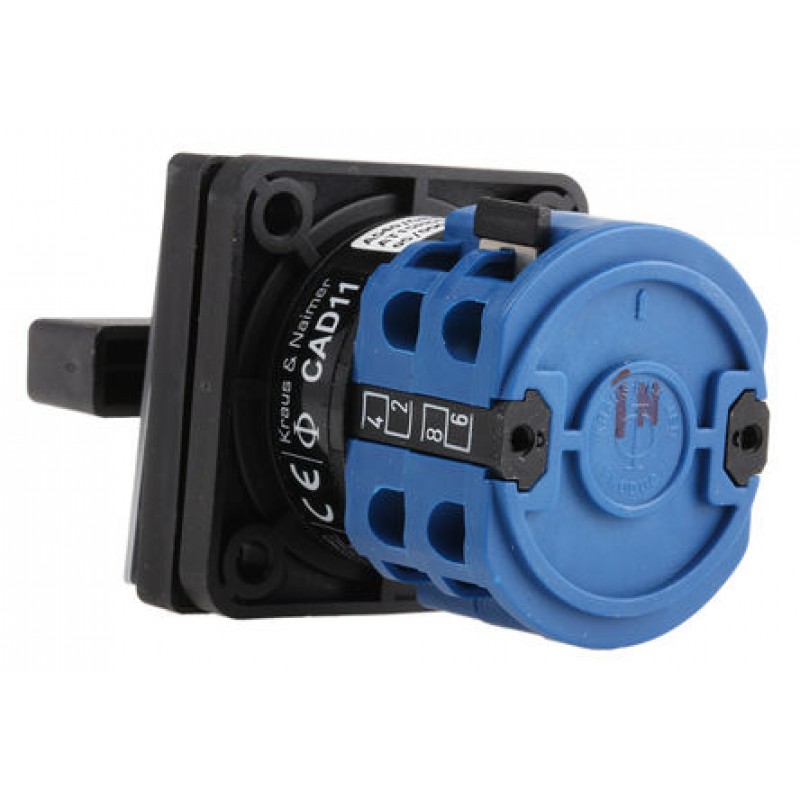

8 positions Rotary Switch, 600 V, 6 A, Rotary Knob
Product Code: AD11A540/GBA001EF
Availability: In Stock
Availability: In Stock
$27.99
Ex Tax: $27.99
Ex Tax: $27.99
Product Details
Industrial BCD Switches
Robust design for use in industrial applications also suitable for electronic applications
Excellent contact reliability at 30mV and 5mA
Will withstand high potential of 600V
Gold plated ’H’ bridge contact system
| Nominal Voltage | 600V |
| Minimum Voltage | 0.03V |
| Rated Thermal Current Ith | 6A |
| Minimum Guaranteed Switching Current | 5mA |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Maximum Current | 6 A | |
| Maximum Voltage | 600 V | |
| Number of Positions | 8 | |
| Length | 48mm | |
| Width | 48mm | |
| Depth | 41.2mm | |
| Actuator Type | Rotary Knob | |
| Dimensions | 48 x 48 x 41.2 mm |
