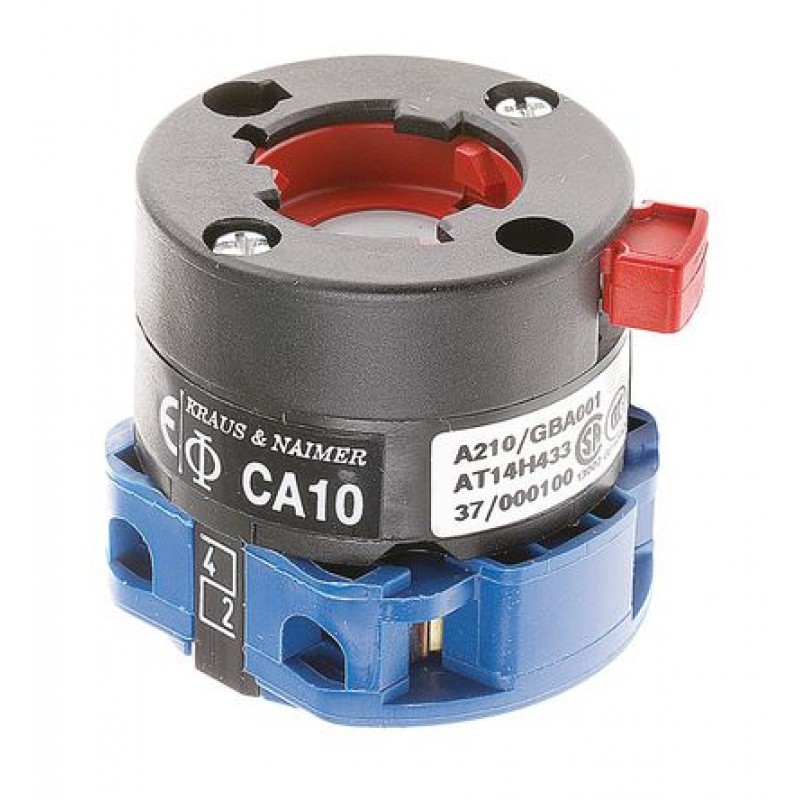

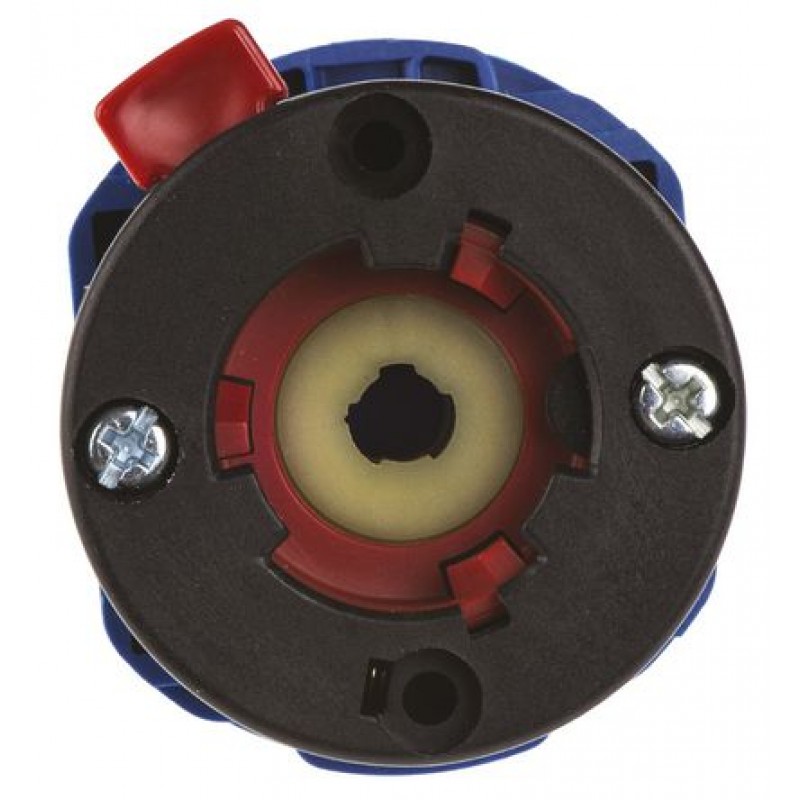

Each switch body is supplied with the appropriate legend plate but the switch operator must be ordered separately (see stock no. 350-0840 typically)

Rated at 20A
S0 size (48x48mm)

Power rating for Motor Reversing Switch 222-5936 is 3.7kW (AC23) / 3kW (AC3)

Technical Specification
Series	CA10	CA20	CA25	CAD11	CHR10	CG8
Insulation Voltage U,	690V	690V	690V	600	690	690
Thermal Current l_th	20A	25A	32A	6A	20A	20A
Motor Rating AC-23A	7.5kW	11kW	15kW	-	7.5kW	7.5kW
Motor Rating AC-3	5.5kW	7.5kW	11kW	-	5.5kW	5.5kW
Switching Angle	60°
Dims. (mm)	48 x 48mm
Ambient temp. of stages	55°C during 24 hours with peaks up to 60°C at 100% load
Protection	IP20
Legend Plate	Silver with black text
Standards	IEC 947, EN 60947
CA10, CA20, CA25 & CAD11 Series	Open finger proof terminals accessible from the side to facilitate wiring. Captive plus-minus screws

CHR10 Series	For connection with ring type terminals. Open finger-proof terminals accessible while switch is being installed. Captive plus-minus screws located 90° apart from the terminal direction allowing for connection of wires without any interference with the terminal screws.

CG8 Series	Open finger-proof terminals accessible while the switch is installed. Captive plus-minus screws. Due to the arrangement of the terminals it is possible to install switches closely, side by side or to mount them directly at the cable trays

	Pole and Throw Configuration	SP
	Normal State Configuration	NO/NC
	Maximum Current	20 A
	Maximum Voltage	690 V
	Number of Positions	3
	Angle of Throw	60°
	Length	48mm
	Width	48mm
	Actuator Type	Rotary Knob
