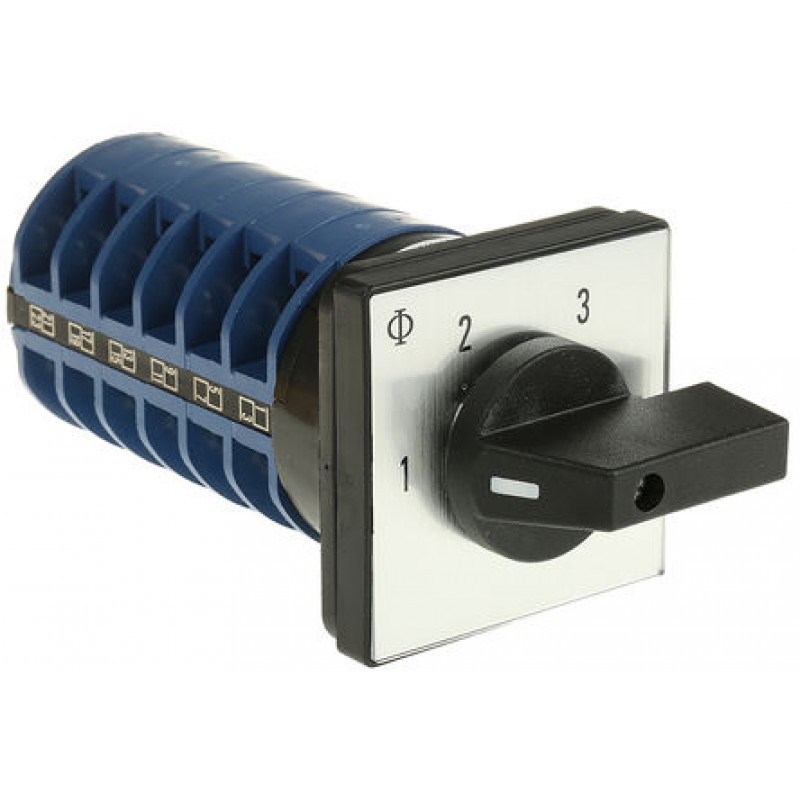

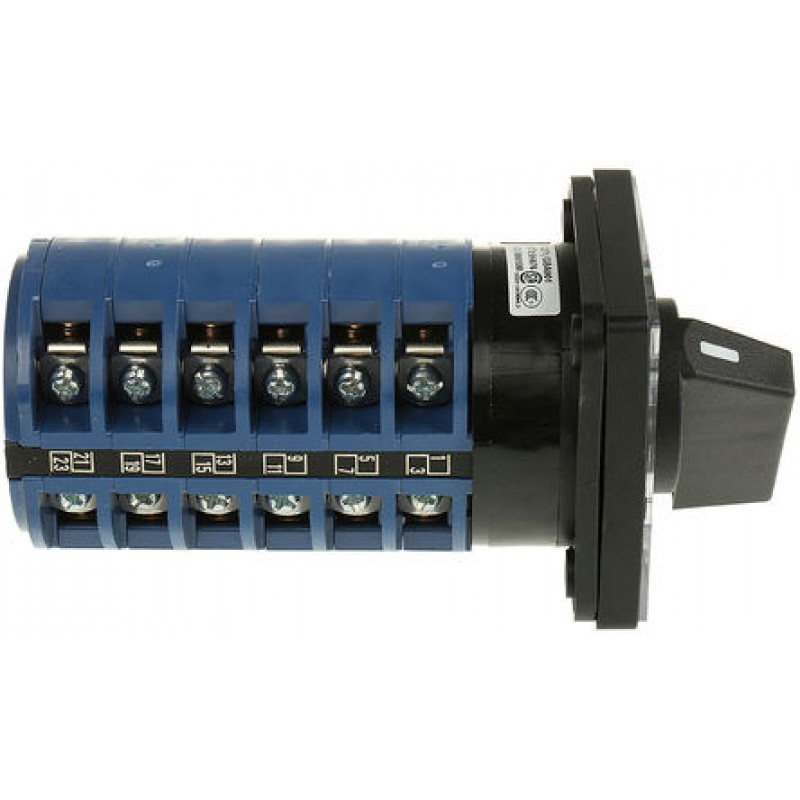

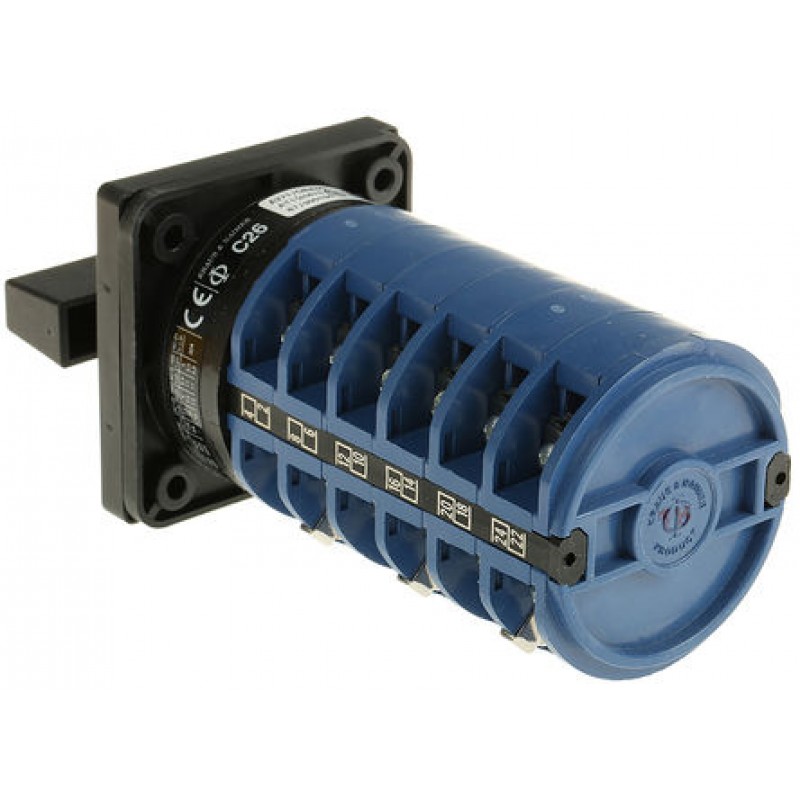

4 positions Rotary Switch, 690 V, 32 A, Knob
   0 reviews  |  Write a review
Product Code: 26A271/GBA001E
Availability: In Stock
$72.92
Ex Tax: $72.92
Product Details

Multi-step Switches

Operational current to EN 60 947-3
Load break and motor ratings
Compact size with uniform mounting dimensions
Nominal voltage (all): 690V

3-Pole 3-Step 293-7156 293-7308 293-7241
Motor Rating (AC23) at 380/440V 15kW 22kW 30kW
Motor Rating (AC3) at 380/440V 11kW 15kW 18.5kW
3-Pole 4-Step 293-7162 293-7207 293-7257
Motor Rating (AC23) at 380/440V 15kW 22kW 30kW
Motor Rating (AC3) at 380/440V 11kW 15kW 18.5kW
3-Pole 5-Step 293-7178 293-7263 -
Motor Rating (AC23) at 380/440V 15kW 30kW -
Motor Rating (AC3) at 380/440V 11kW 18.5kW -
3-Pole 6-Step 293-7184 293-7229 -
Motor Rating (AC23) at 380/440V 15kW 22kW -
Motor Rating (AC3) at 380/440V 11kW 15kW -
3-Pole 8-Step 293-7190 - -
Motor Rating (AC23) at 380/440V 15kW - -
Motor Rating (AC3) at 380/440V 11kW - -
Dimensions (mm)
Stock No. A B C D1 D2 D3 L
293-7156 64 48 4.0 4.10 8.50 53.7 91.8
293-7308 64 48 4.0 4.10 8.50 60 135.8
293-7241 64 48 4.0 4.10 8.50 66 145
293-7162 64 48 4.0 4.10 8.50 53.7 104.5
293-7207 64 48 4.0 4.10 8.50 60 133.3
293-7257 64 48 4.0 4.10 8.50 66 157.3
293-7178 64 48 4.0 4.10 8.50 53.7 129.9
293-7263 64 48 4.0 4.10 8.50 66 200.3
293-7184 64 48 4.0 4.10 8.50 53.7 142.6
293-7229 64 48 4.0 4.10 8.50 60 185.8
293-7190 64 48 4.0 4.10 8.50 53.7 180.7

Standards

EN 60 947, IEC 947-3, VDE 0660, EN 60204.1



http://uk.rs-online.com/largeimages/L293715-01.gif








Specifications

Not what you’re looking for? Select the attributes you require, then click the button below
Pole and Throw Configuration 3P
Maximum Current 32 A
Maximum Voltage 690 V
Number of Positions 4
Length 64mm
Width 64mm
Depth 104.5mm
Actuator Type Knob
Dimensions 64 x 64 x 104.5 mm
