3 Pole DIN Rail Mount Non-Fused Switch Disconnector, 32 A, 11 kW, IP65
Product Code: S6-176
Availability: In Stock
Availability: In Stock
$29.99
Ex Tax: $29.99
Ex Tax: $29.99
Product Details
Door Interlock with Metal Shaft

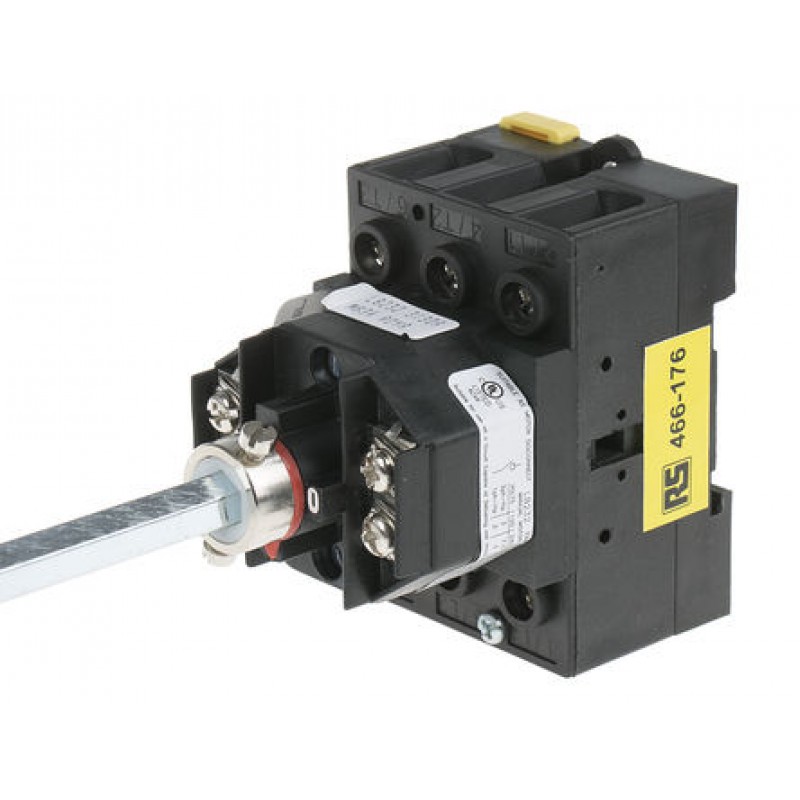

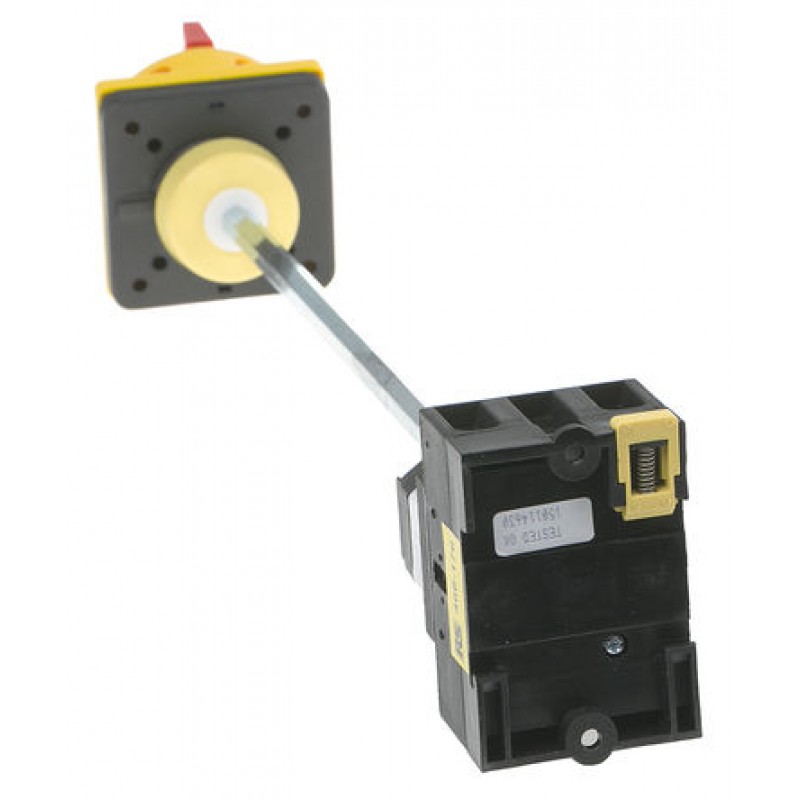

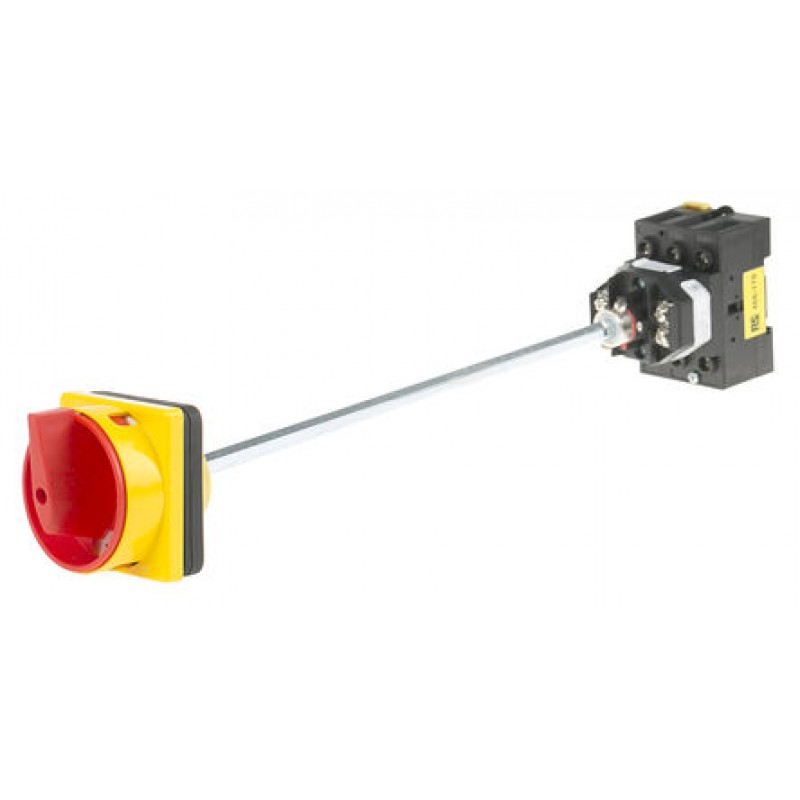

A high quality, durable back of panel mount isolator complete with handle and shaft. The switch is back of panel mount, either 35mm din rail or two screw fixing. The handle is interlocked ensuring removal only in the off position, and is padlockable in the off position. The shaft is hexagonal for rigidity, 8mm across the flats and is supplied at 282mm length. Maximum panel thickness is 3mm.
DIN rail mount
Metal shaft 282mm (3 pole) and 94mm (6 pole) in length
All switch ratings at AC22
2 rear hole mounting or 35mm DIN rail mount
Maximum panel thickness 3mm
Depth behind panel 355mm
Padlockable
Note
CB, CE, SEMKO, UL508
Rubber Gasket 773-7995
Volt free contact 466-251
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Number of Poles | 3 | |
| Maximum Current | 32 A | |
| Mounting Type | DIN Rail | |
| Power Rating | 11 kW | |
| IP Rating | IP65 | |
| Accepts Padlocks | Yes | |
| Voltage Rating | 750 V | |
| Electrical Phase | 3 | |
| Switch Rating | 6 kV | |
| Length | 125mm | |
| Width | 100mm | |
| Depth | 70mm | |
| Maximum Operating Temperature | +40°C | |
| Handle Colour | Red | |
| Minimum Operating Temperature | -25°C | |
| Terminal Type | Screw |
