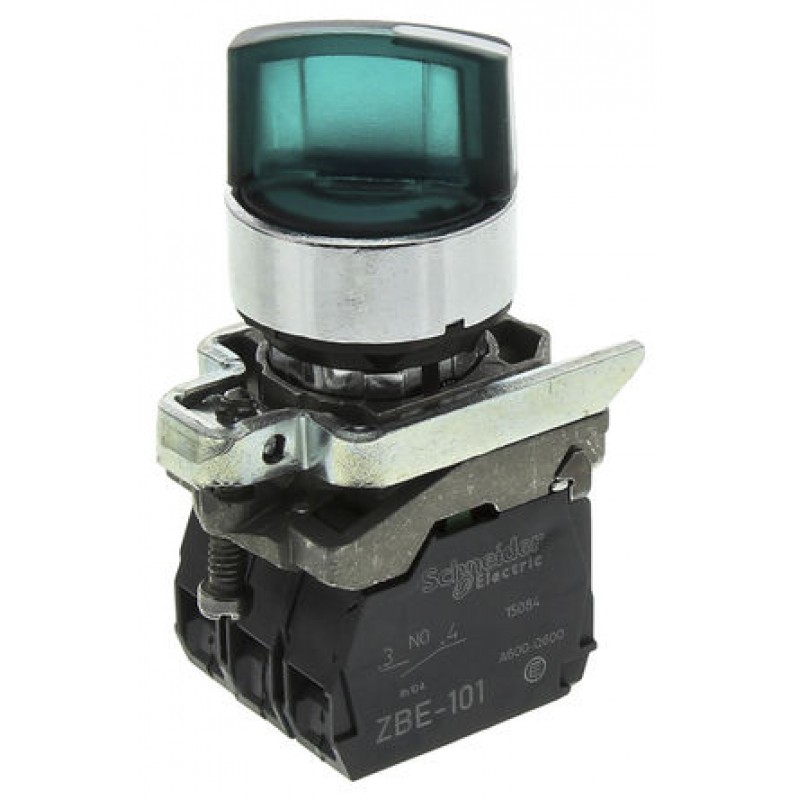

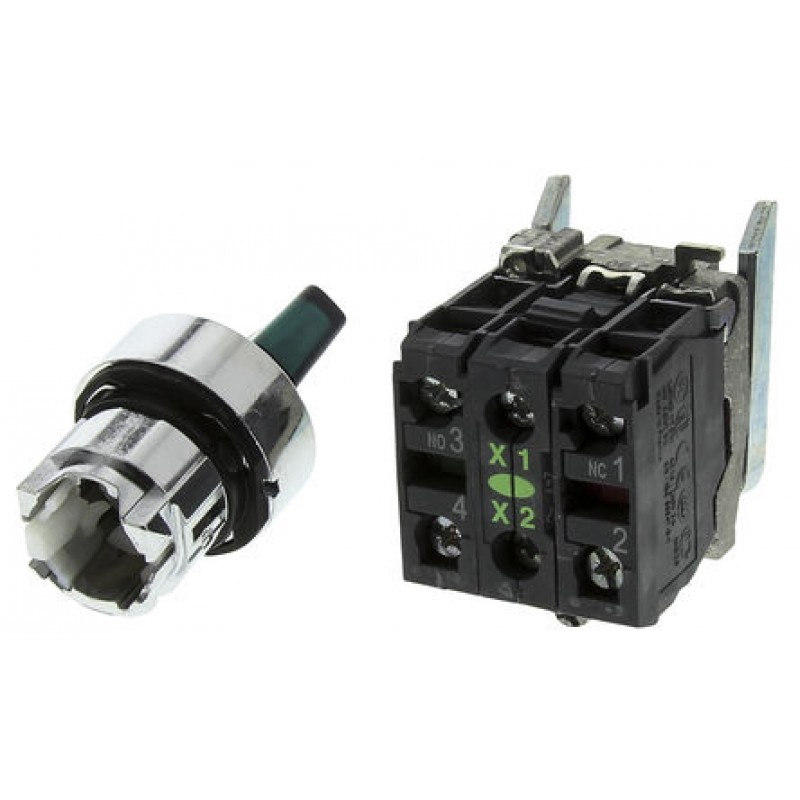

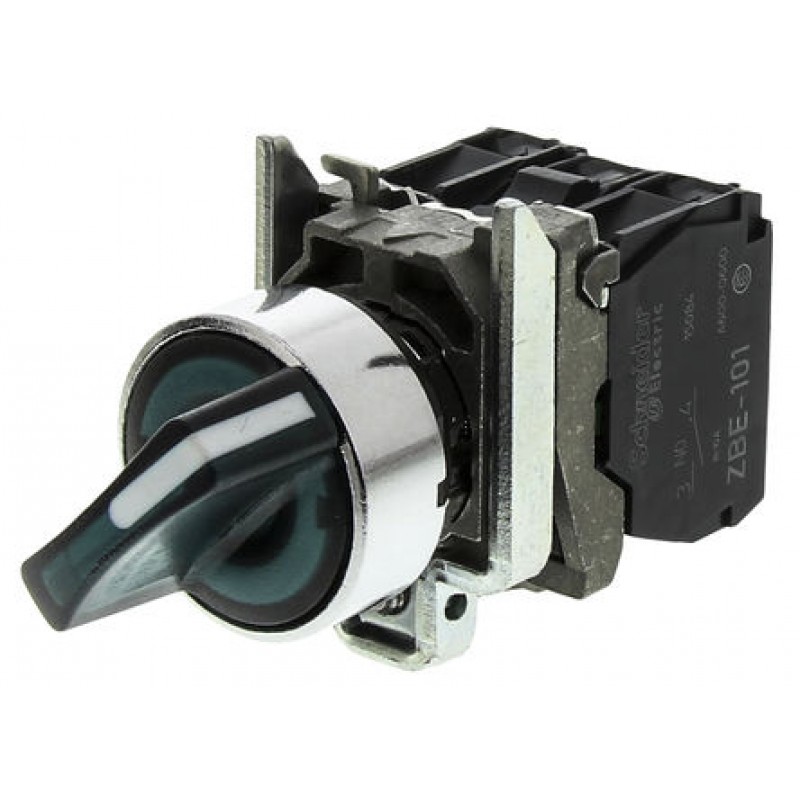

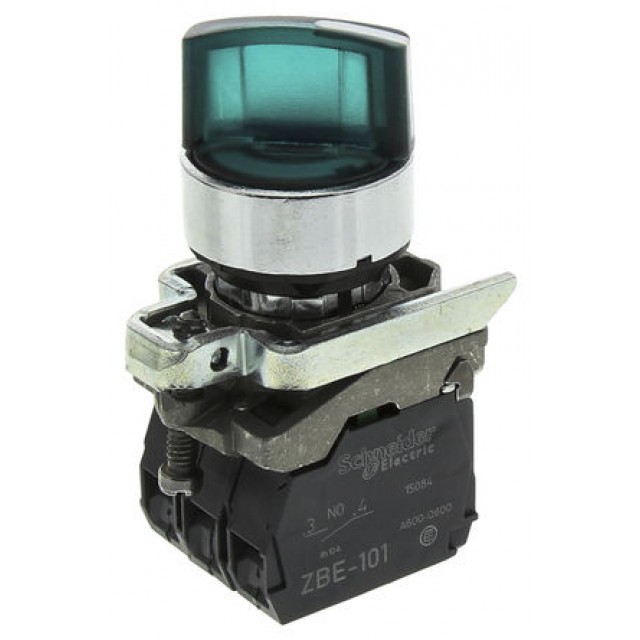

2 positions 90° Rotary Switch, 600 V ac/dc, 0.55 (dc) A, 6 (ac) A, Handle, Stay Put
Product Code: B4BK123B5
Availability: In Stock
Availability: In Stock
$37.99
Ex Tax: $37.99
Ex Tax: $37.99
Product Details
Selector Switches, XB4-B
• Standard black handle selector switches.
• Screw clamp terminal connections.
• Supplied with contact blocks.
• Manufacturers part nos. ending in B5 are fitted with a 24V LED, M5 are fitted with a 230V LED and G5 are fitted with a 110V LED.
• Manufacturers part nos. containing a J are long handle type.
Note
Manufacturers part numbers ending in EX are EX rated products.
• Modular ranges of 22 mm push buttons and pilot light devices with chrome bezels.
• Head automatically retains in position within cut-out.
• Self locking, vibration resistant, and three point fixing.
• Premarked and blanked legend plates available.
• Rapid connections.
• Up to nine electrical blocks can be fitted by a simple clip-on mounting.
• A unique, patented integral LED technology providing 100,000 hours service resistant to vibration and electromagnetic interference.
• Operating temperature range -25 to +70 °C.
• All heads require a panel cut-out of 22.3 mm to 22.5 mm diameter.
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Normal State Configuration | NO/NC | |
| Maximum Current | 0.55 (dc) A, 6 (ac) A | |
| Maximum Voltage | 600 V ac/dc | |
| Number of Positions | 2 | |
| Terminal Type | Screw Clamp | |
| Angle of Throw | 90° | |
| Length | 46.5mm | |
| Width | 30mm | |
| Depth | 70mm | |
| Actuator Type | Handle, Stay Put | |
| Dimensions | 46.5 x 30 x 70 mm |
