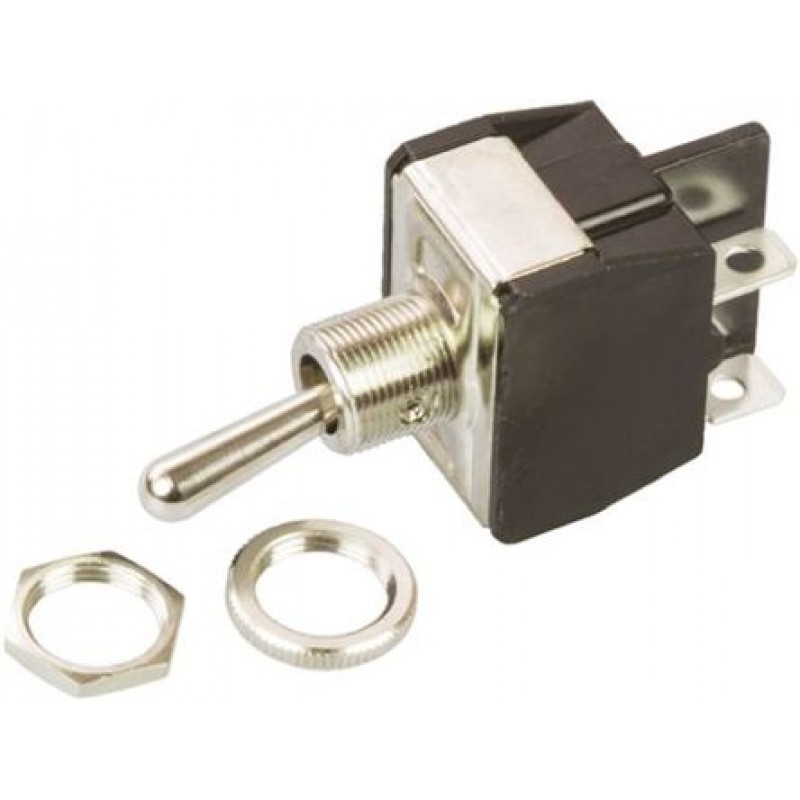

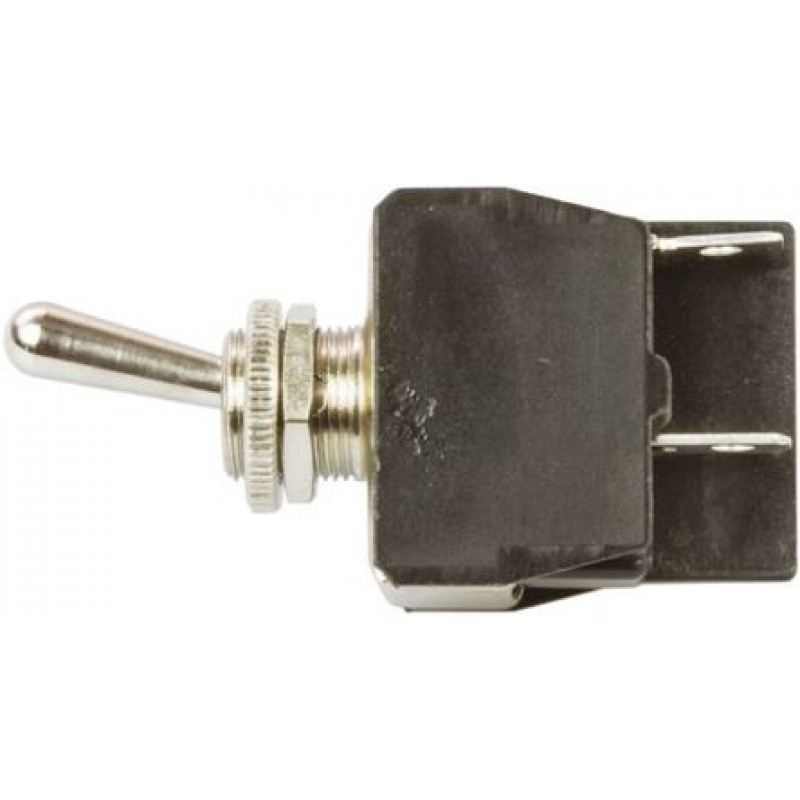

Toggle Switch DPST On-Off, 10 A@ 24 V dc, 15 A@ 250 V ac, Panel Mount
Product Code: 12CPN
Availability: In Stock
Availability: In Stock
$12.34
Ex Tax: $12.34
Ex Tax: $12.34
Product Details
Toggle Switches, Std, 15A
Moulded body with slow-break silver plated contacts and pear-shaped toggle

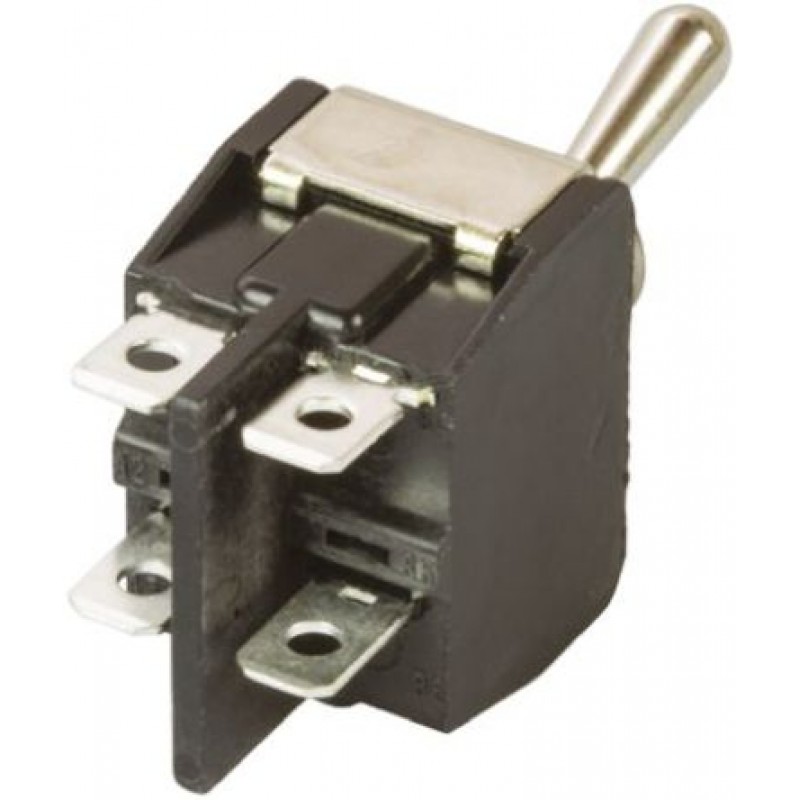

The blade terminals are suitable for 250 (1/4 in) receptacles or soldering
Mounting bush 0.468in dia., length 11mm, single locating slot
Toggle Switches
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPST | |
| Switch Operation | On-Off | |
| Contact Current Rating | 15 A @ 250 V ac | |
| Mounting Type | Panel Mount | |
| Terminal Type | Tab | |
| Actuator Length | 17.5mm | |
| Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +55°C | |
| Operating Temperature Range | -20 → +55°C | |
| Contact Material | Silver |
