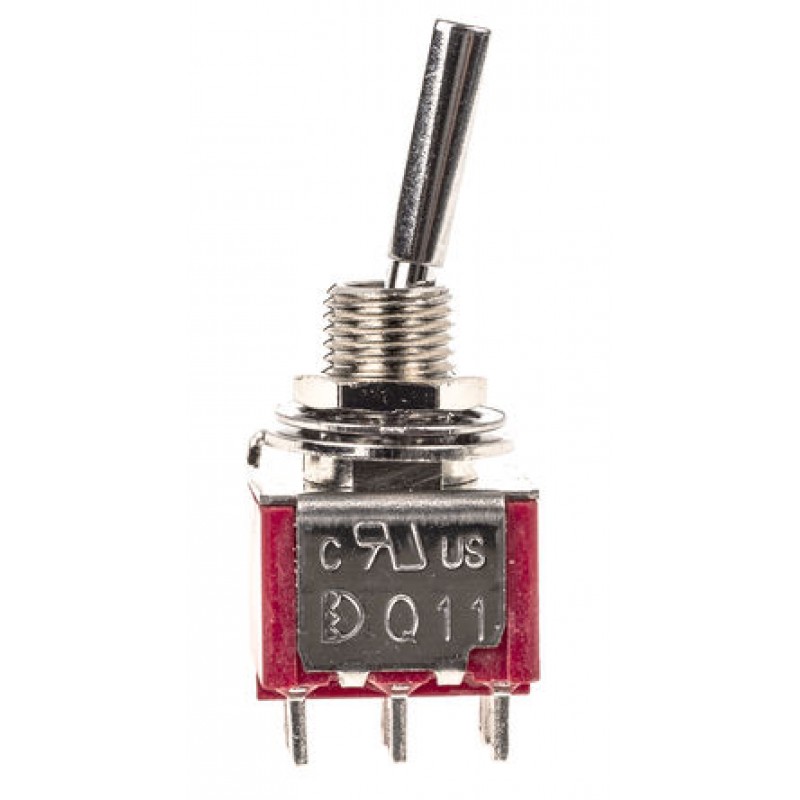

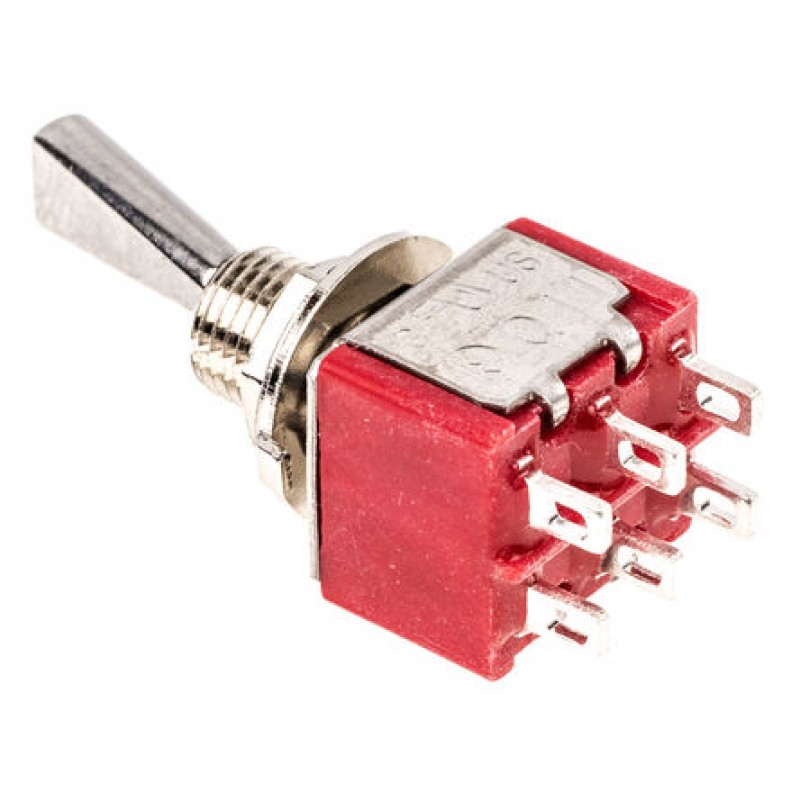

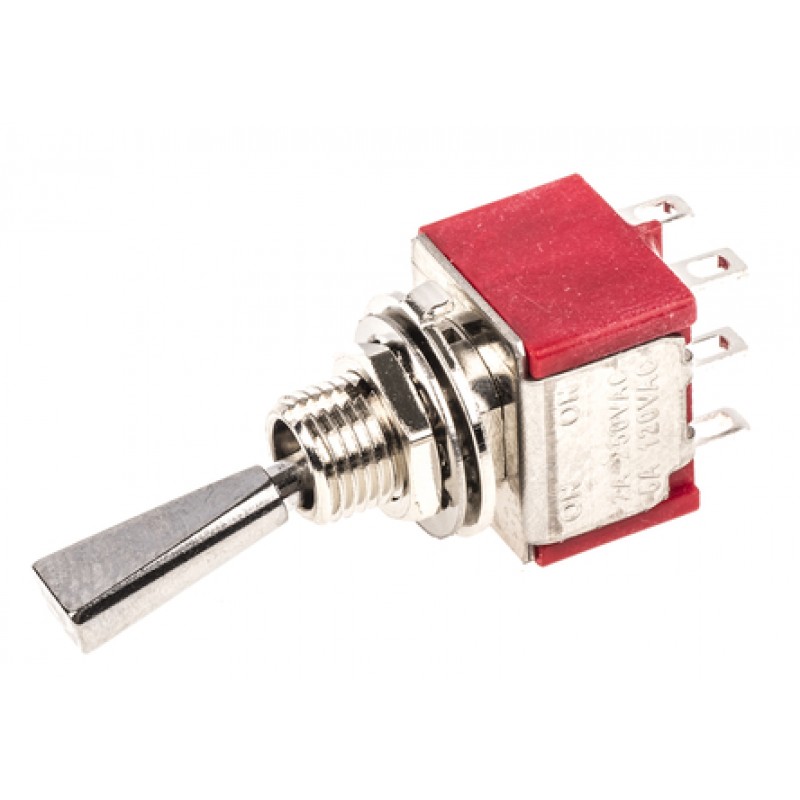

Toggle Switch DPDT On-On, 5 A, Panel Mount
Product Code: MD1T6B11M1QES-1
Availability: In Stock
Availability: In Stock
$8.75
Ex Tax: $8.75
Ex Tax: $8.75
Product Details
Miniature Flat Lever Toggle Switches
Epoxy sealed terminals prevent contamination during soldering
Chrome Plated Brass actuator
Diallyl Phthalate (DAP) case (UL94V-0)
Silver contacts
Approvals
UL E187490
Toggle Switches
| Momentary function (spring-loaded return): | The switch or contact breaker returns to its original position when the load is removed. E.g. bell push) |
| Stay-put function: | The switch or contact breaker remains (stop) in the new position after the load has been removed. |
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Contact Configuration | DPDT | |
| Switch Operation | On-On | |
| Contact Current Rating | 5 A @ 250 V ac | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Actuator Length | 12.3mm | |
| Actuator Material | Brass | |
| Contact Resistance | 10mΩ | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -30°C | |
| Contact Material | Copper Alloy | |
| Operating Temperature Range | -30 → +85°C | |
| Mechanical Life | 40000Cycles |
