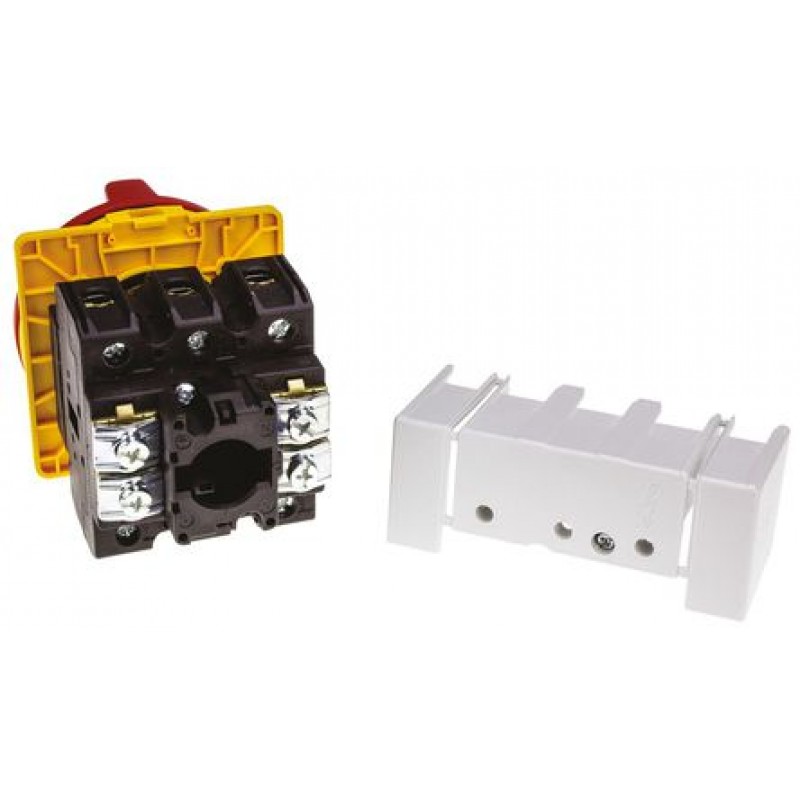

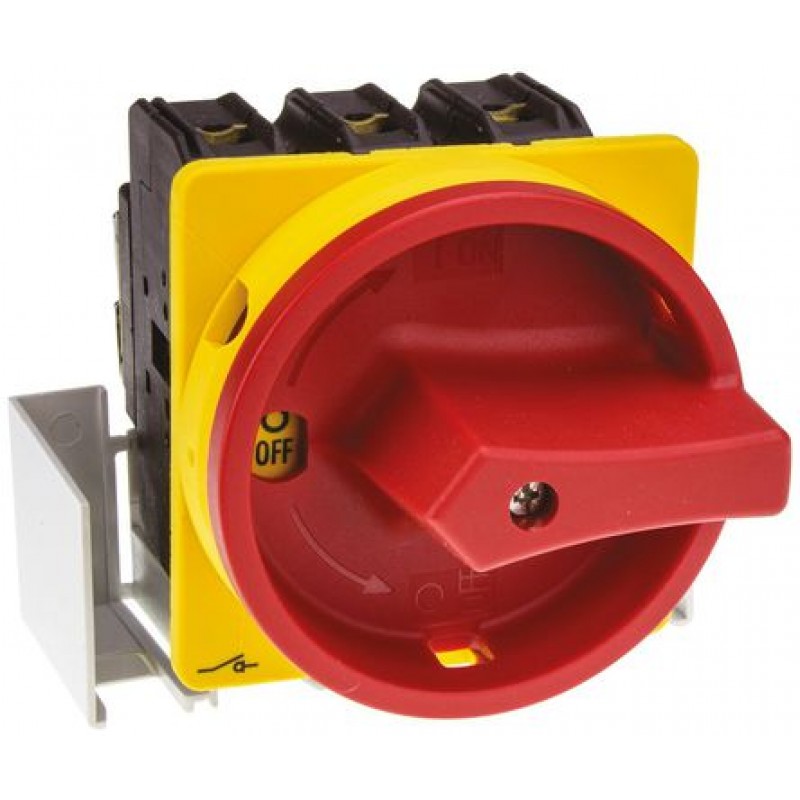

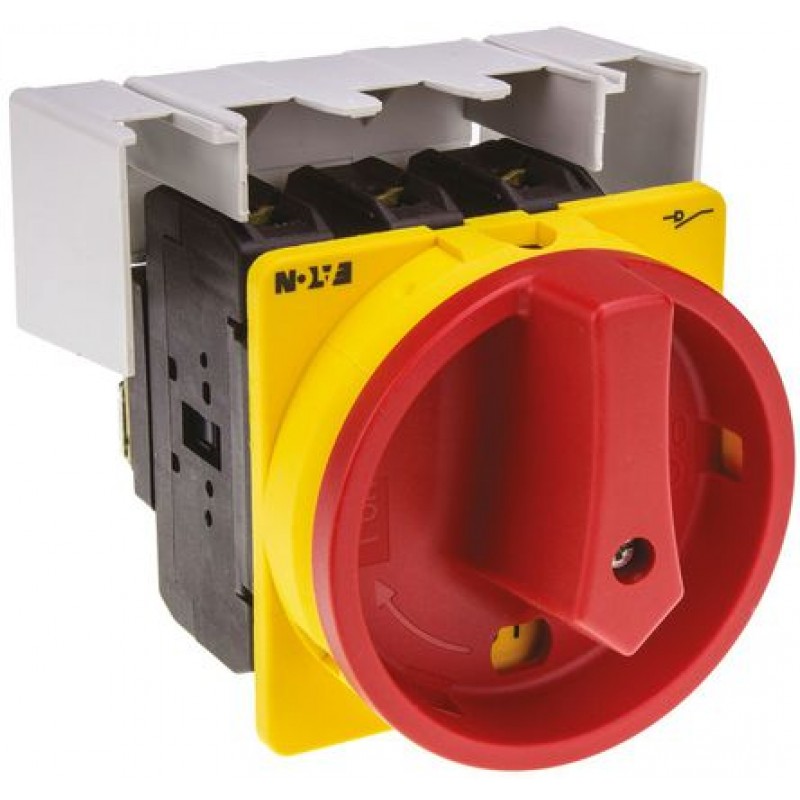

3 Pole Flush Mount Non-Fused Switch Disconnector, NO, 63 A, 37 kW, IP65
Product Code: P3-63/EA/SVB
Availability: In Stock
Availability: In Stock
$62.64
Ex Tax: $62.64
Ex Tax: $62.64
Product Details
Panel Door Mounted Switch Disconnector
Padlockable in OFF position, up to 3 padlocks and non-locking versions
Ingress protection to IP65
2 and 3 pole versions have built in neutral and earth connections
3 pole switches ('P' type only) accept add-on switched neutral and auxiliary contacts (except 20A switches) – see accessories (RS 219-1439 typical)
Rated operating voltage: 690 Vac
Switching power quoted for 380 - 440 Vac
Approvals
UL, CSA
Standards
IEC (EN60) 947, IEC (EN60) 204
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
| Number of Poles | 3 | |
| Maximum Current | 63 A | |
| Mounting Type | Flush | |
| Normal State Configuration | NO | |
| Power Rating | 37 kW | |
| IP Rating | IP65 | |
| Accepts Padlocks | Yes | |
| Voltage Rating | 440 V ac | |
| Auxiliary Contacts Available | Yes | |
| Electrical Phase | 3 | |
| Switch Rating | 1260 A | |
| Length | 65mm | |
| Width | 65mm | |
| Depth | 59mm | |
| Handle Colour | Red | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +50°C | |
| Throw Configuration | Single |
